Varunummer: 2755201

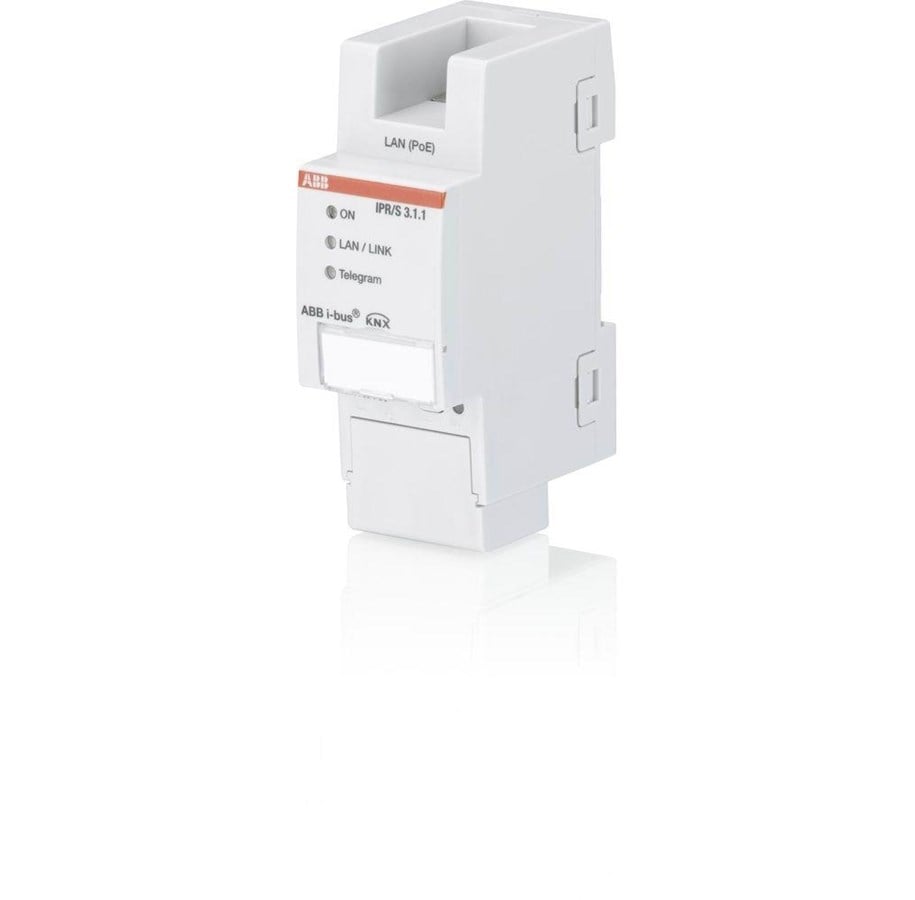

ABB knx ip router mdrc ipr/s3.1.1

ABB KNX IP router connects the KNX bus with the Ethernet network. The device uses the KNXnet/IP protocol for communication (Routing and Tunneling).It can be used as a fast line and area coupler. The full filter table for main groups 0-31 is supported.KNX devices can be programmed via the LAN using ETS. For this and further clients 5 Tunneling Server are available.DIN 90X36X64 mm (H x W x D)The IP address can be fixed or can be received from a DHCP server. Power supply via 12..30 V DC or PoE.The KNX Standard Communication (Multicast) can be switched off. In this case, up to 10 IPR/S3.1.1 can communicate using unicast communication.

Läs mer
6 900,00 kr 5 520,00 kr exkl. moms
Gratis frakt
Leverantör, 2-3 vardagar leveranstid

KNX IP Router, MDRC, IPR/S3.1.1, contains 5 tunneling servers IPR/S3.1.1 Product description: ABB KNX IP interface connects the KNX bus with the Ethernet network. The device uses the KNXnet/IP protocol for communication (routing and tunneling). It can be used as a line or area coupler. The filter table for main groups 0-31 is supported.With ETS, KNX devices can be programmed via LAN. For this and additional clients, there are 5 Tunneling Servers available.The IP address can be fixed or received from a DHCP server.Power supply via 12..30 V DC or PoE.KNX standard communication (Multicast) can be interrupted.In this case, up to 10 IPR/S3.1 .1 communicate using unicast communication.DIN 90x36x64 mm (H x W x D) Technical specifications: Mounting method: DRA (DIN rail adapter)Color: GrayType: EthernetSurface treatment: Untreated

Producent
Varunummer
2755201
Modell
2CDG110175R0011
EAN
4016779906487

Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
