Instrument - Elma Instruments Kyoritsu kew2500 - 5706445251032
Varunummer: 2952836

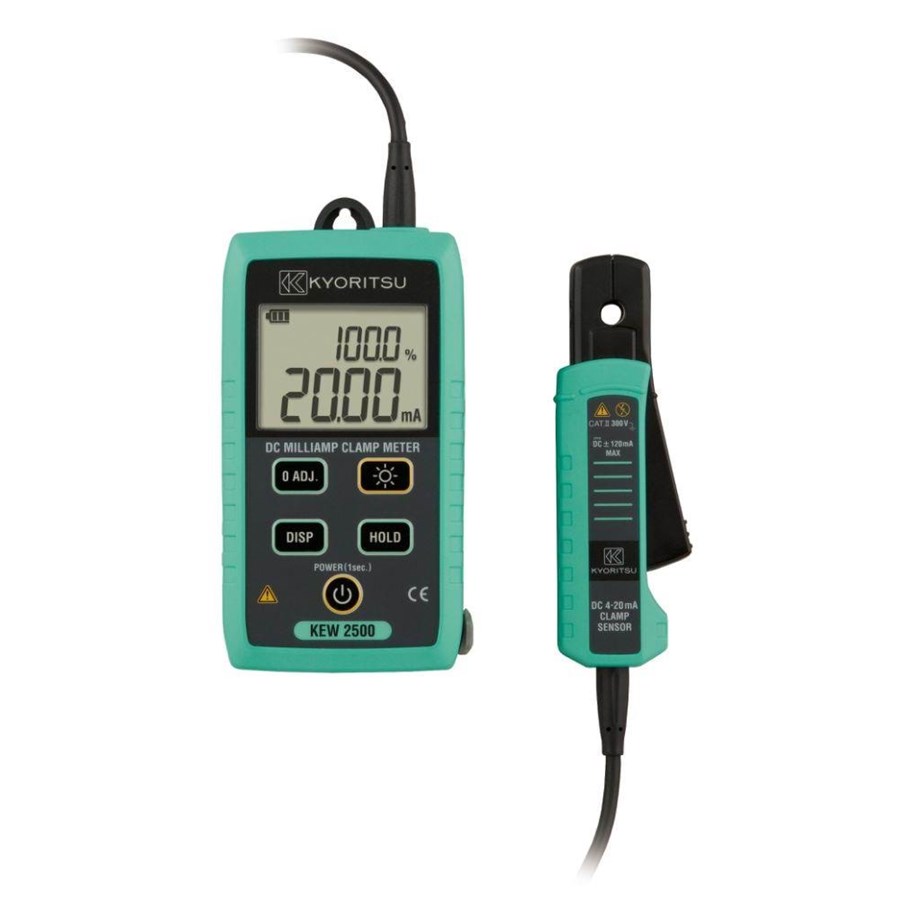

Elma Instruments Kyoritsu kew2500

Kyoritsu KEW is a unique instrument for measurement of low DC currents, typically found in process industry, where it is essential to measure control current signals, without breaking the loop. The instrument is equipped with a tiny current clamp, making KEW2500 ideal for measurements in even inaccessible spaces.KEW 2500 is equipped with back lit dual display, with large digits, to read current directly in mA simultaneously with 0-100% in 4-20mA range. The instrument is furthermore equipped with LED flashlight, analogue output, for external logging, auto zero and data hold. The instrument measures current in a wide and accurate range from 0.01 to 120.0 mA.Kew 2500 fulfills IEC 61010-1 CAT II 300V and is supplied ready to use incl. bag, batteries and manual.

5 804,00 kr 4 643,20 kr exkl. moms
Gratis frakt
Leverantör, 2-3 vardagar leveranstid

Kyoritsu KEW2500 4-20mA Process Current Clamp - Measure milliamperes without breaking the circuit. Product description: Kyoritsu KEW2500 is a new unique instrument for measuring small DC currents in, for example, process plants where it is important to be able to measure current during operation without breaking the circuit. The instrument is equipped with a smart little current clamp and is therefore also suitable for measurements in hard-to-reach places. KEW2500 has a backlit easy-to-read dual display where the current can be read directly in mA while displaying the percentage of the 4-20mA range. The instrument measures current in the range from 0.01mA to 120.0mA and also features built-in LED flashlight, analog output, automatic zero adjustment and data hold function.The instrument complies with IEC 61010-1 CAT II 300V and comes complete with batteries and operating instructions.Technical Data:Current:          0-20-120mA DCPrecision:     ± 0.2% +5DDisplay:        3½ digitsMax reading :      1999Clamp diameter : ø6mmAnalog output : DC10mV / DC1mABattery :         2x1.5V LR44 (included)Dimensions :    Display unit -111×61×40mmTang -104x34x20mmWeight:                                                                                                                                                                      290g

Producent
Varunummer
2952836
Modell
5706445251032
EAN
5706445251032
