Elma Instruments Kyoritsu 8035 phase sequence tester

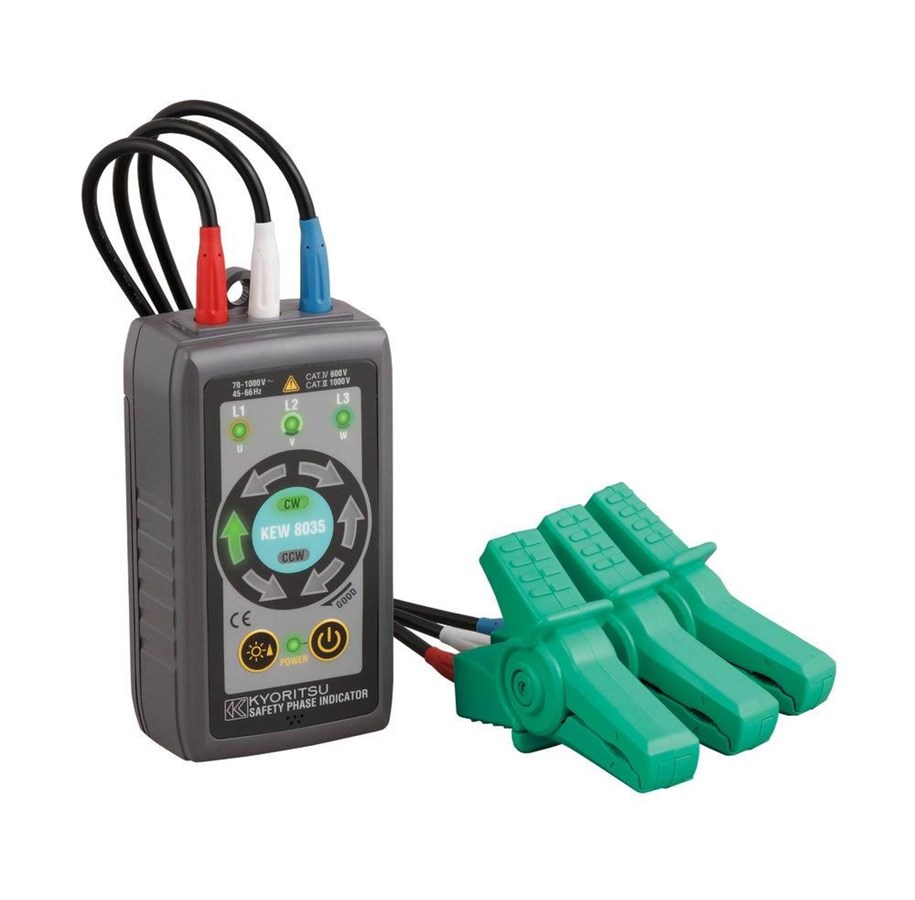

Kyoritsu 8035 is a unique new phase sequence tester which with no elektrical contact is showing phase sequence/magnetic field. The 3 clips are mounted outside on the insulation on three separate phases. When it is three real and different phases then the instrument will show it with big and very bright red and green LED for phase sequence. The instrumentet complies with CAT IV 600V and is because of that, together with the extra bright LED s very usefull for outdoor purpose. Kyoritsu 8035 complies with IEC 61010-1 KAT IV 600V / III 1000V and is delivered in a bag incl. batteries and manual. Technical data: Working voltage: 70-1000V AC Frequency: 45-66 Hz Working temperature: -10.....50°C Clamp size, clip: ø 2,4-30mm leads Battery: 4x 1,5V LR6 (incl.) Size: 112x60x30mm Weight: 380g

Läs mer
3 380,00 kr 2 704,00 kr exkl. moms
Gratis frakt
Leverantör, 2-3 vardagar leveranstid

Phase sequence testers non-contact Kyoritsu product description: Kyoritsu 8035 is a unique new phase sequence tester that shows phase sequence/rotation without electrical contact. The three probes are placed on the insulation of three separate phases. When there are three correct and different phases, the instrument displays the phase sequence/rotation with large and very powerful red and green LEDs. The instrument meets CAT IV 600V standards and is therefore very suitable for outdoor use in combination with extra powerful colored LED lights.Kyoritsu 8035 meets IEC 61010-1 CAT IV 600V / III 1000V standards and comes complete with batteries and operating instructions in a case.TECHNICAL DATA Operating voltage:70-1000V AC Frequency:45-66 Hz Operating temperature:-10.....50°C Jaw width, probe ø2.4-30mm wires Battery:4x1.5V LR6 (included) Dimensions:112x60x30mm Weight:380g

Producent
Varunummer
2759917
Modell
5706445250929
EAN
5706445250929
