Varunummer: 2759916

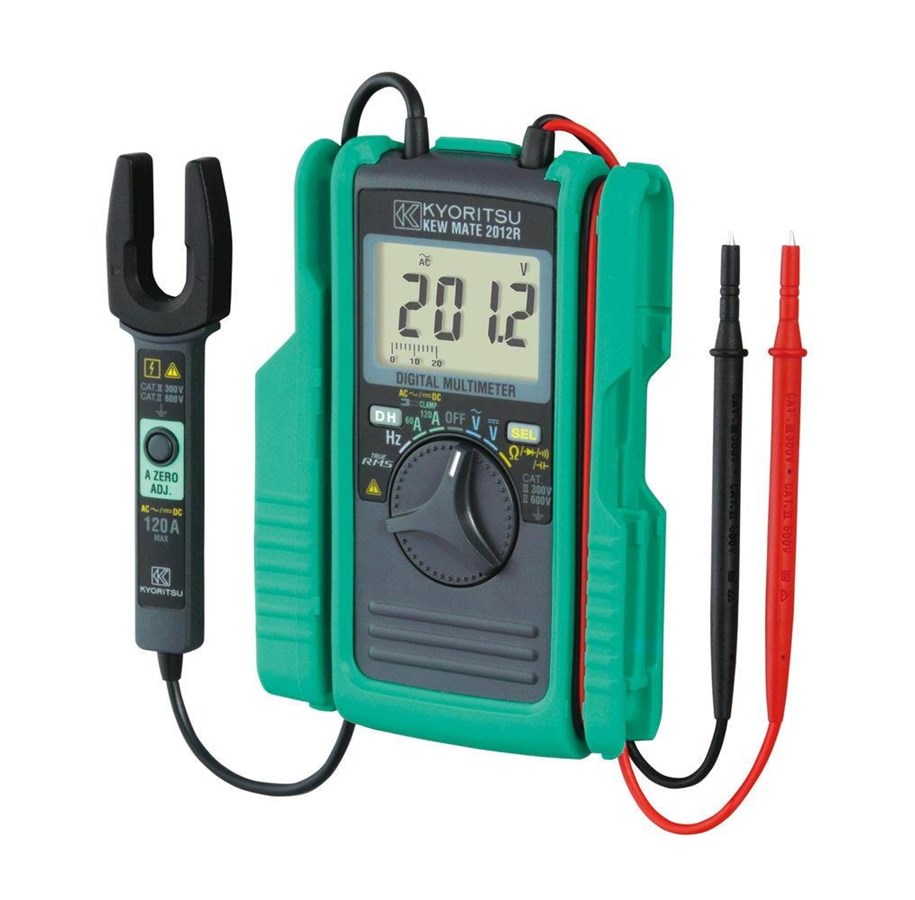

Elma Instruments Kewmate 2012r true rms multi meter

Kewmate 2012R is the top model in the series of smart pocket multi meters with open current clamp. The instrumentet is offering new functions and is equipped with True RMS measurement, automatical DC zero adjustment on current measurement, and a new and bigger clamp which is able for measuring all up to 120A AC/DC. Kewmate 2012R has a big display which is easy to read on, with analog bargraph, and it measures voltage, current, resistance, continuity, frequency, and is equipped with automatical range selection, data hold, and auto shut off. The instrumentet is in pocket size, and is delivered with a robust rubber protection, where the test leads and the current clamp can be mounted seperately, and then be protected. The instrumentet complies with IEC 61010-1 CAT III 300V, and is delievred with test leads, current clamp, rubber protection, batteries and manual. Technical data: Voltage DC: 0-600m-6-60-600 V Voltage AC: 0-6-60-600 V Current AC/DC: 0,01-60-120.0A (with clamp) Resistance: 0-600-6k-60k-600k-6M-60M Frequency: 0-10-100-1000-10k-100k-1000k-10MHz Capacity: 0-40n-400n-4-40-4000F Clamp size: ø12 mm Max display: 5999 Battery: 2x1,5V LR03 (incl.) Size: 126x87x21 mm Weight: 210 g

Läs mer
2 627,00 kr 2 101,60 kr exkl. moms
Gratis frakt
Leverantör, 2-3 vardagar leveranstid

Product description: Kewmate 2012R is the top model in the series of smart pocket multimeters with an open current clamp. The instrument offers new features and is equipped with true RMS measurement, automatic DC zero adjustment during current measurement, as well as a new and larger clamp that can measure up to 120A AC/DC. Kewmate 2012R has a large easy-to-read display with analog bargraph and measures voltage, current, resistance, continuity, frequency and has automatic range selection, data hold and auto power off. The instrument is pocket-sized and comes with a robust protective cover where the test leads and current clamp can be mounted and protected. The instrument complies with IEC 61010-1 CAT III 300V standards and comes complete with test leads, current clamp, rubber cover, batteries and Danish operating instructions.TECHNICAL DATAVoltage DC: 0-600m-6-60-600 VVoltage AC: 0-6-60-600 VCurrent AC/DC: 0.01 -60 -120 A (with clamp)Resistance: 0 -600 -6k -60k -600k -6M –60M?Frequency: 0–10–100–1000–10k–100k–1000k –10MHz Capacity :  40nF /400nF /4µF /40µF /400µF/4mF Clamp width : ø12 mm Max display :5999 Battery :2x1.5V LR03 (included) Dimensions :126x87x21 mm Weight :210 gTechnical specifications:Weight (kg):                                                                                                           0.21HxWxD (mm):                                                                                                           126x87x21Battery:                               2x1.5V LR03 (included)

Producent
Varunummer
2759916
Modell
5706445250967
EAN
5706445250967

Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
