Varunummer: 2760006

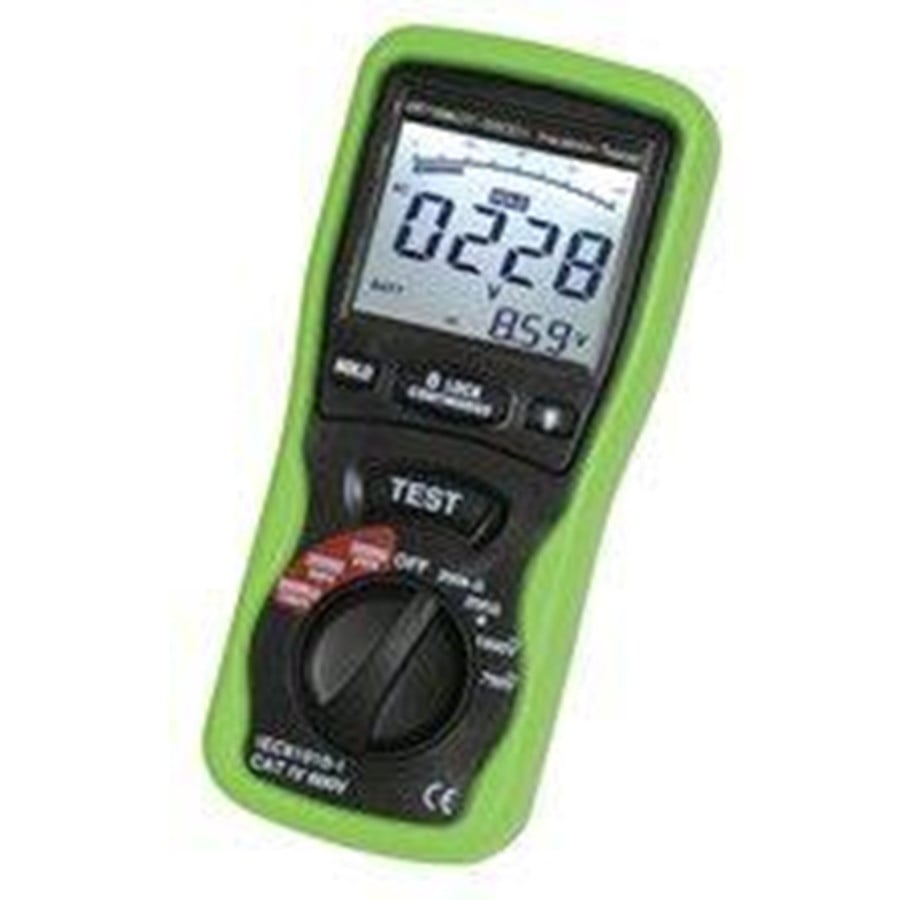

Elma Instruments Elma dt 5500a - 2 in 1 multimeter and insulation tester

Elma DT5500A is a new smart multimeter combined with an insulation tester with superior resolution. The instrument is very robust and fitted with large, easy to read illuminated display with smart analog bar chart. The multimeters measure AC / DC voltage, resistance and continuity. The insulation teste has optional test voltages 125, 250, 500 and 1000V, and lockable test function. Elma DT5500A have automatic discharge of capacitive voltage and automatically warns of dangerous voltage if attempting to perform an insulation test on live installations. The instrument has automatic range selection, data hold and min / max measurement. Elma DT 5500A is equipped with integrated rubber protection casing and meets IEC CAT III 1000V / CAT IV 600V. The instrument comes complete in bag incl. test leads, batteries and instructions. Technical data: Test voltage: 125, 250, 500 and 1000V Insulation Resistance: 0-4M-40M-400m-4000M Resolution: 0.01 M Test current: 1mA Voltage: 0-750/1000V AC / DC Resistance: 0-40-400 Batteries: 6x 1.5 V LR6 (inclusive) Dimensions: 200x92x50 mm Weight: 700g

Läs mer
3 260,00 kr 2 608,00 kr exkl. moms
Gratis frakt
Leverantör, 3-4 vardagar leveranstid

Isolation tester DT5500A Product description: Elma DT5500A is a new smart multimeter combined with an insulation tester with extra good resolution. The instrument is very robust and equipped with a large easy-to-read backlit display with a smart analog bar graph. The multimeter measures AC/DC voltage, resistance, and continuity. The insulation tester has optional test voltages of 125, 250, 500 and 1000V as well as a lockable test function. Elma DT5500A has automatic discharge of capacitive voltage and automatically warns of dangerous voltage if insulation testing is attempted on live installations. The instrument has automatic range selection, data hold and min/max measurement.Elma DT 5500A comes with an integrated rubber cover, complies with IEC CAT III 1000V / CAT IV 600V standards and comes complete in a bag including test leads, batteries and instructions.TECHNICAL DATA Test voltage:125,250 ,500,and1000 V Insulation resistance:  0-4M-40M-400M-40000 MΩ Resolution:  0.01 MΩ Test current :1mA Voltage :   AC/DC (750/100 V) Resistance :   (40/400 Ω) Batteries :6x1 .5V LR6 (included) Dimensions :(200 x92 x50 mm ) Weight :(700 g)

Producent
Varunummer
2760006
Modell
5706445840021
EAN
5706445840021
