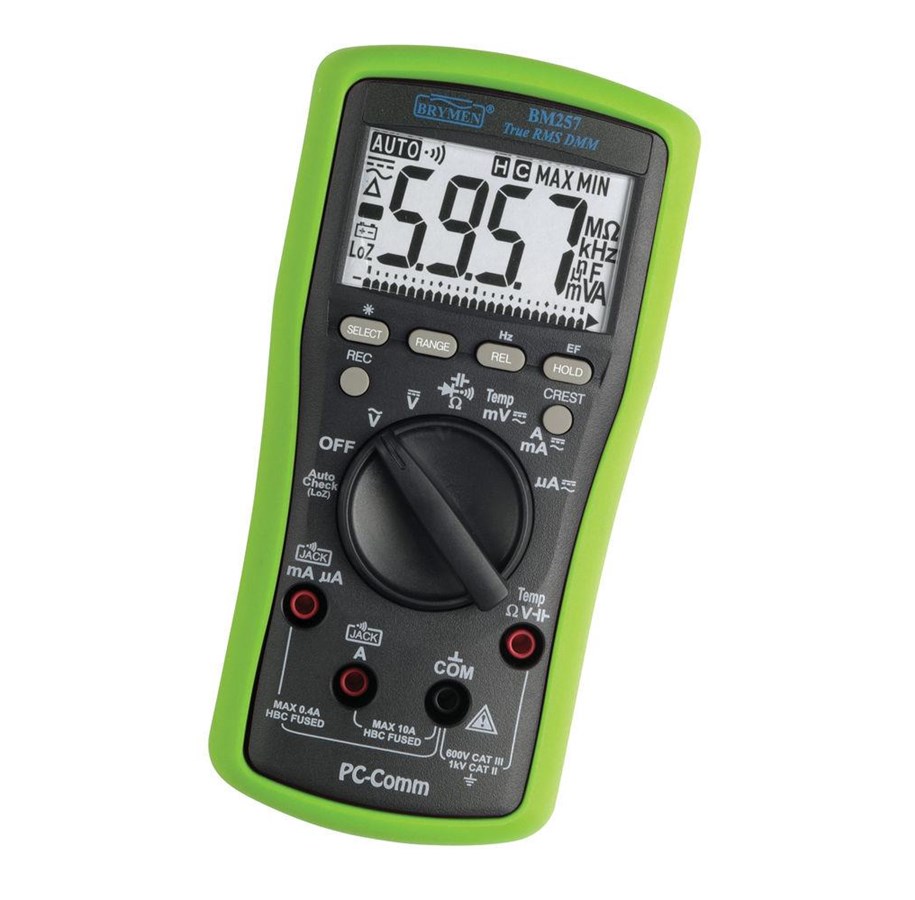

Elma Instruments Elma bm257 sand rms multimeter
Elma BM 257 is a new smart mini mult imeter, which gives two new exiting functions. Auto Check is an intelligent function which automatically detects and choose AC voltage, DC voltage and continuity test/resistance. All you need to do is to turn on the instrument and measure. Low Z is voltage measurement with a low impedance, which means, that the measuring point is loaded, and therefore is it the real voltage you are measuring. The instrument has build-in non contact detection of electrical fields, whick can be used to detect electromagnetical fieds from PC screens, or used as a non contact voltage detector. Elma BM 257 measures true RMS current, voltage, resistance, frequency, capacity, continuity and temperature. Elma BM 257 has backlighted display with analog bargraph for easy and quick reading. The instrument is equipped with automatical/ manual range selection, relative measurement, Peak hold, min/max, datahold and intelligent auto power off. With the PC-communication and the Windows software (extra option) is it possible to make ON-Line data logging. The instrument is very safeand robust. It can handle ffailure connection and is equipped with high efficiency fuses. Complies with IEC 61010-1 CAT III 600V. Elma BM 257 is delivered incl. rubber protection, test leads, temperature sensor (wire sensor -50 til +250°C), battery and manual Technical data: Voltage: 0-60m-600m-6-60-600-1000V AC/DC Accuracy: DC: ± 0,5%+2D, AC: ± 1,%+3D Current: 0-500-5000-50m-500m-5-10A AC/DC Accuracy: DC: ± 0,5% + 3D, AC: ± 1,0% + 3D Resistance: 0-600-6k-60k-600k-6M-60M (600V) Capacity: 0-60n-600n-6-60-600-3000F Frequency: 10Hz - 50kHz Temperature: -50...1000°C, (included wire probe -50...250°C) Diode test: 0-1000mV, 0,56mA < 1,8V DC Continuity test: < 10 akustical signal Display: 3 5/6 digits Max. display: 5999 Battery: 2x1,5V LR03 (inkl.) Size: 161 x 80 x 50 mm Weight: 340 g
2 550,00 kr
2 040,00 kr exkl. moms
Gratis frakt
Leverantör, 2-3 vardagar leveranstid
Elma BM257 Multimeter with RMS Product Description: Elma BM 257 is a new smart mini multimeter that offers two exciting new features. Auto Check is an intelligent function that automatically detects and selects AC voltage, DC voltage, and continuity test/resistance. All you have to do is turn on the instrument and measure. Low Z is low impedance voltage measurement, meaning the measuring point is loaded to ensure that the true voltage is measured. The instrument has built-in contactless detection of electric fields, which can be used to detect electromagnetic fields from computer screens or as a contactless pole finder. Elma BM 257 measures true RMS current, voltage, resistance, frequency, capacitance, continuity and temperature.Elma BM 257 has a backlit display with an analog bar graph for easy and quick reading. The instrument comes with automatic/manual range selection, relative measurement mode (REL), Peak hold (PEAK), min/max value recording (MIN/MAX), data hold (HOLD) as well as intelligent auto power off function after inactivity period of time.With PC communication capability via USB cable connection together with Windows software package available separately it allows ON-Line datalogging.The instrument is very safe and robust; it can withstand misuse due to its high-performance fuses installed inside for protection against overload conditions according IEC61010-1 CAT III 600V safety standard requirements .Elma BM 257 comes complete including rubber holster cover , test leads set , temperature probe (-50°C...+250°C wire type) , battery pack LR03 x2 pcs., Danish user manual.TECHNICAL DATA Voltage:0-60m-600m-6-60-600-1000V AC/DC Accuracy: DC: ±0.5%+2D; AC: ±1%+3D Current :0 -500 -5000 -50m -500m -5A/10A AC/DC Accuracy: DC: ±0.5%+3D; AC: ±1.0%+3D Resistance : 0-600-6k-60k-600k-6M -60MΩ (at 600V) Capacitance : 0 -60n -600n -6uF -60uF -3000uF Frequency :10Hz –50kHz Temperature :-50...1000°C, (with supplied wire probe type K, range from –50 to +250°C) Diode test : 0–1000mV, 56mA <1.8V DC Continuity test:<10Ω acoustic signal Display:3¾ digits Max display value:5999 Battery pack LR03 x2 pcs.(included) Dimensions HxWxD(mm):161x80x50 Weight(kg):340 g Technical specifications
