Instrument - Elma Instruments Elma bm037 trms ac/dc clamp multimeter - 5706445410422
Varunummer: 2952825

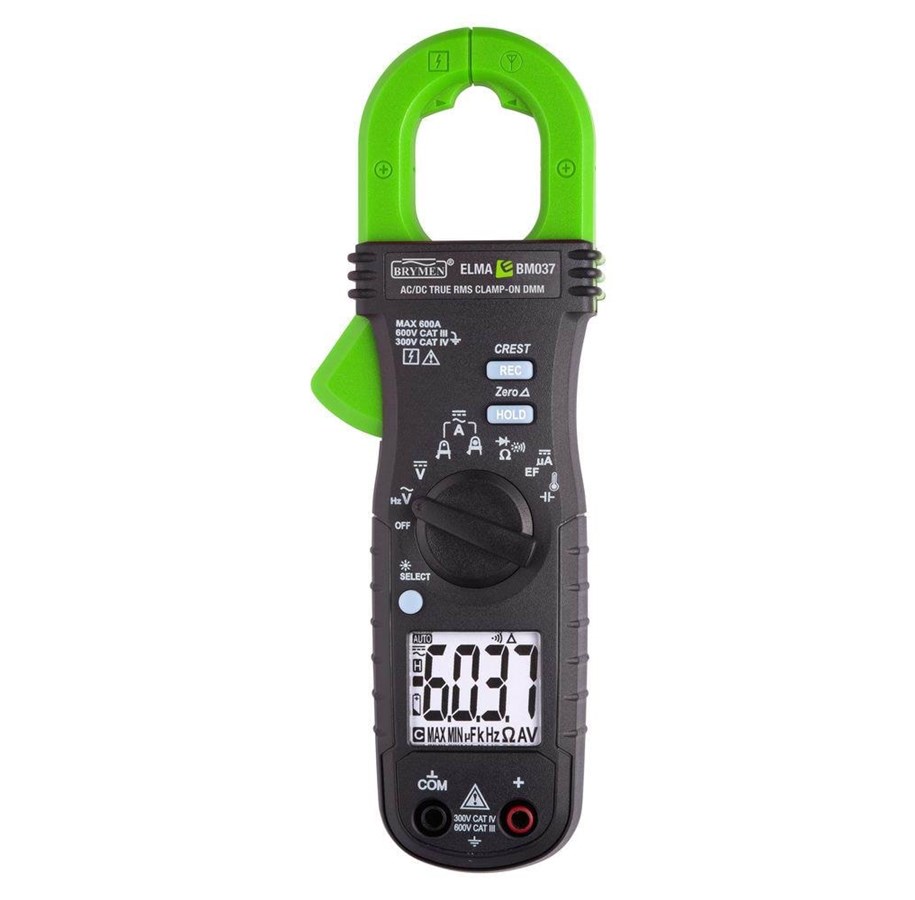

Elma Instruments Elma bm037 trms ac/dc clamp multimeter

Elma BM037 is a small and handy clampmeter designed for measuring True RMS AC and DC currents. Using this handy clamp multimeter, it is possible to measure currents as high as 600A. The multimeter function offers measurement of voltage, current, capacity, resistance and continuity. Besides the clamps function, the instrument is also measuring 0-2000 micro amperes on the sockets. Furthermore the instrument is equipped with temperature measurement, capable of measurements using standard type k sensor, for measuring numerous applications. The AmpTip function provides the opportunity to measure currents from 0-60A with enhanced accuracy.Elma BM037 is equipped with back lit display, min/max/rel, peak hold and voltage detection. Elma BM037 fulfills IEC 61010-1 CAT III 600V and CAT IV 300V and is delivered ready to use in bag including test leads, temperature sensor, battery and user manual.

2 193,00 kr 1 754,40 kr exkl. moms
Gratis frakt
Leverantör, 2-3 vardagar leveranstid

Elma BM037 sand RMS AC/DC clamp meter 0 - 600A AC/DC with temperature measurement. Product description: Elma BM037 is a small and handy clamp meter for measuring true RMS AC/DC current. With the handy clamp meter, it is possible to measure currents up to 600A and the multimeter function allows for measuring voltage, current, capacitance, resistance and continuity. It also measures current from 0-2000 microamperes in the bushings. Additionally, the instrument is equipped with temperature measurement which allows for measuring temperature on many applications using a standard type-k sensor. The AmpTip function enables accurate measurements of currents in the range of 0-60A. Elma BM037 has a backlit display, min/max/relative readings, data hold feature, peak hold feature as well as non-contact voltage indication. Elma BM037 complies with IEC 61010-1 CAT III 600V / CAT IV 300V standards and comes complete with test leads, temperature sensor (-50 to +250°C), battery and Danish user manual in a carrying case.Technical specifications: Temperature (°C): -40°C - +400°C (-50 to +250°C with included wire probe) Resistance (ohm): 0-600Ω /6kΩ Dimensions (mm):188x66x32 Voltage AC/DC:0-600V

Producent
Varunummer
2952825
Modell
5706445410422
EAN
5706445410422

Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
