Varunummer: 2749715

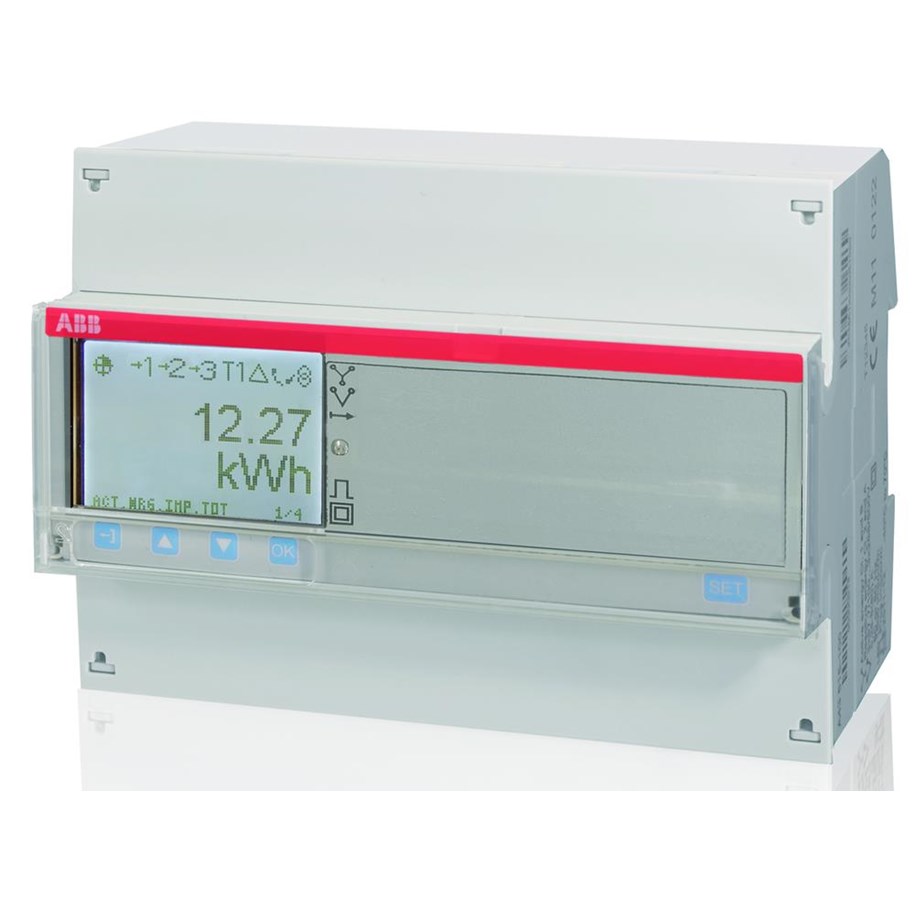

ABB Kwh meter#a43 111-100
Electricity meter, 3 phase, Active energy Cl. 1 & B, Approved according to: IEC 62052-11, IEC 62053-21, EN 50470-1, EN 50470-3
7 033,00 kr
5 626,40 kr exkl. moms
Gratis frakt
Leverantör, 2-3 vardagar leveranstid
Electric meter 3 phase direct measurement 80Amp with pulse/alarm output A43 111-100 Steel Product description: Electric meter for direct measurement up to 80Amp. 3P+N, 230-400V MID approved Cl. B (class 1), outputs for pulse or alarm. The electric meter is for DIN-rail mounting. Wiring or plug pins are connected at the bottom of the electric meters. LCD display showing kWh, instantaneous values in current, power per phase and total, voltage, cos phi, frequency. Automatic installation control. The meter is available in several variants for both single-phase and three-phase installations, for active energy in one direction (import) or two-way (import and export) and four-way (4-quadrant import/export in both active and reactive measurement). Also available with logging functions with time-stamped data. All logged data can be displayed on the display via easily understandable mobile language.MID approved as a billing meter according to: IEC 62052-11, IEC62053-21 EN50470-1 EN50470-3 Technical specifications: Mounting method: DRA(DIN-rail adapter)Type: Direct measurementSuitable for: ReferenceDisplay type : Digital
