Varunummer: 2755562

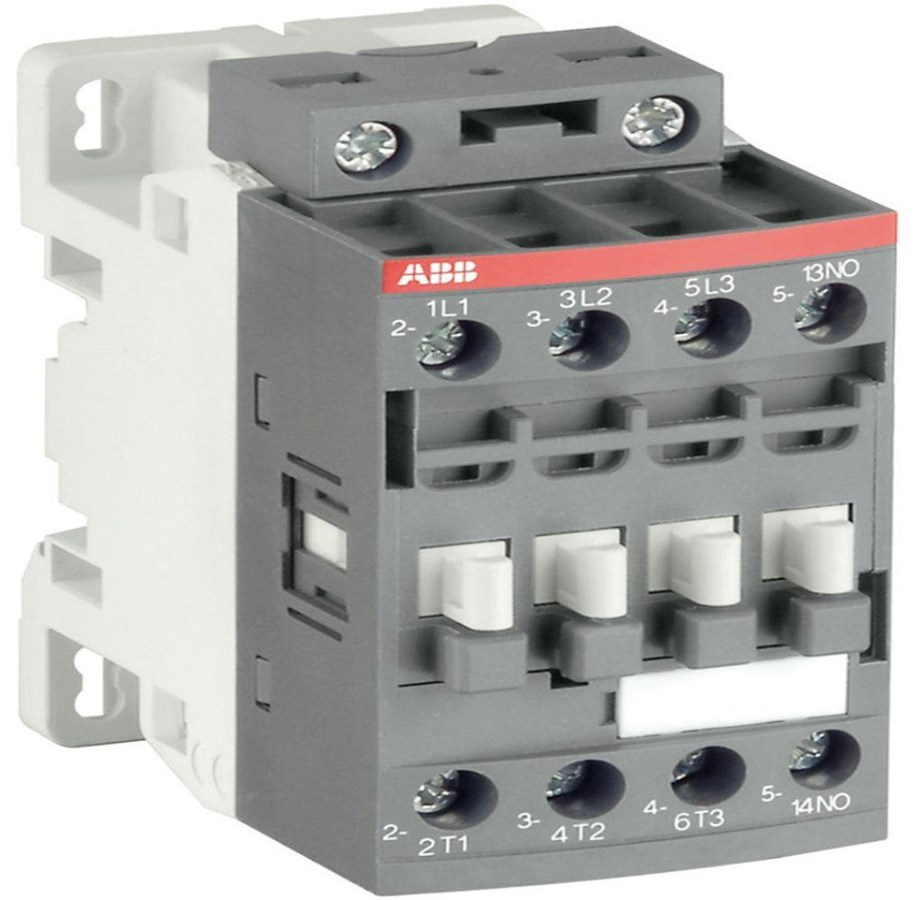

ABB Af16z-30-10-21 24-60vac-dc contactor

AF16Z contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF..Z contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...250 V 50/60 Hz or 12...250 V DC. AF..Z contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF..Z contactors allow direct control by PLC-output 24 V DC 500 mA and obtain a reduced holding coil consumption. AF..Z contactors withstand short voltage dips and voltage sags (SEMI F47-0706 compliance) between 24...250 V 50/60 Hz AF..Z contactors have built-in surge protection and do not require additional surge suppressors The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks. (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: AC or DC operated - Accessories: a wide range of accessories is available.

Läs mer
726,00 kr 580,80 kr exkl. moms
Billigaste frakt: 59,00 kr
Beställningsvara - leveranstid kan ej upplysas

Contactor 3-pole 7.5kW, 400V AC, control voltage 24-60V AC/20-60V DC, low pick-up power of 500mA at 24V DC, auxiliary contact 1NO, screw connection AF16Z-30-10-21 24-60V50/60HZ20-60VDC Product description: Contactors AF09-AF38 for motor operation or purely resistive loads. The contactors can handle a wide range of coil voltages as well as AC/DC voltages on the same contactor. Coil voltages from 20VDC to500 VDC and from24 VAC to500 VAC. Flexible coil voltage connection can be mounted at the top,bottom or both places.There is an integrated RC circuit in the contactor so this is not needed as an accessory.The contactors can be combined with motor protection or overload relays.All the contactors are in45 mm width.There are a wide range of accessories that can be mounted such as auxiliary contacts,timers,reversing connections and Y/D connections.The contactors can be mounted directly on DIN rail or on base plate.Rated power for3-phase motor AC -3 ,380 -400 V from4 kW up to18 .5kW.AC -1 operation from25A up to50A Technical specifications: Suitable for DIN rail mounting: FALSE Rated operating power AC -3 ,400 V :7 .5 Number of closing main contacts :3 Number of breaking main contacts NC :0

Producent
Varunummer
2755562
Modell
1SBL176001R2110
EAN
3471523113817
Produkttyp
Kontaktor
Produktens färg
Grå
Poltal
3P
Produktstorlek (BxDxH)
45 x 77 x 86 mm
Vikt
31 g
Förpackningens bredd
87 mm
Låddjup
79 mm
Förpackningens höjd
47 mm
Vikt inkl. förpackning
31 g

Egenskaper

Produkttyp
Kontaktor
Produktens färg
Grå
Poltal
3P

Vikt & dimension

Produktstorlek (BxDxH)
45 x 77 x 86 mm
Vikt
31 g
Förpackningens bredd
87 mm
Låddjup
79 mm
Förpackningens höjd
47 mm
Vikt inkl. förpackning
31 g

Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
