Varunummer: 2755538

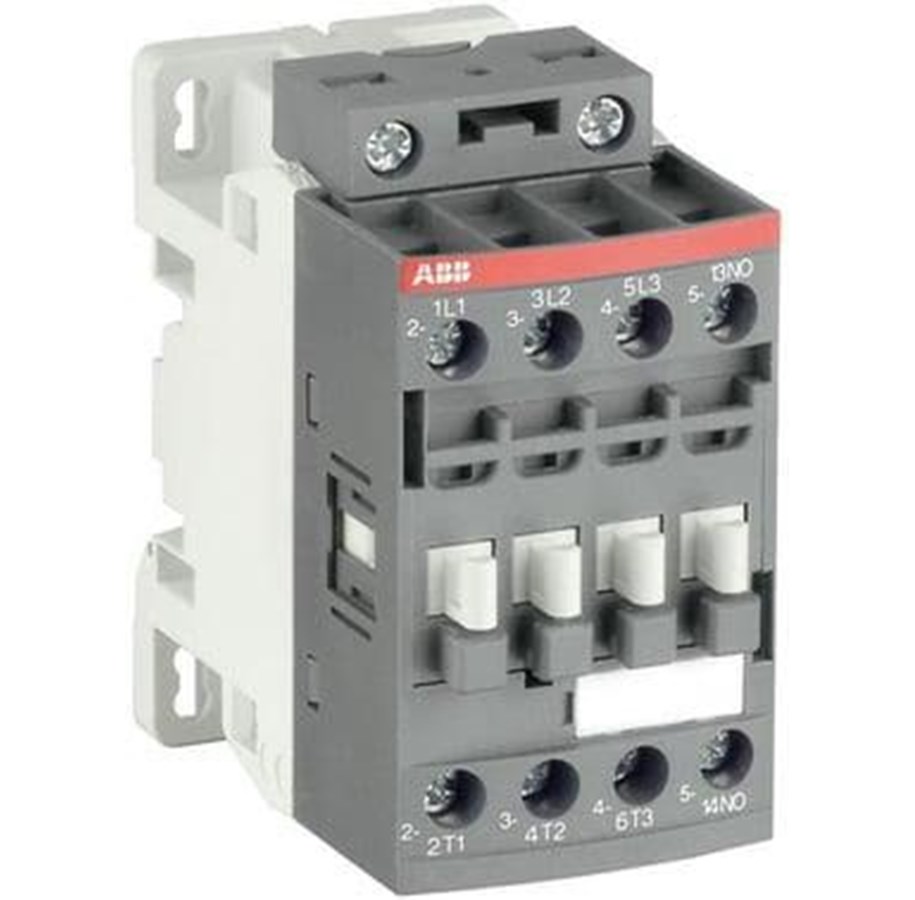

ABB Af16-30-10-13 100-250vac-dc contactor

AF16 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: AC or DC operated - Accessories: a wide range of accessories is available.

Läs mer
I lager
332,00 kr 265,60 kr exkl. moms
Billigaste frakt: 49,00 kr
1 st. I lager, 1-2 vardagars förväntad leveranstid

Contactor 3-pole 7.5kW, 400V AC, control voltage 100-250V AC/DC, auxiliary contact 1NO, screw connection AF16-30-10-13 100-250V50/60HZ-DC Product description: Contactors AF09-AF38 for motor operation or purely resistive loads. The contactors can handle a wide range of coil voltages as well as AC/DC voltages on the same contactor. Coil voltages from 20VDC to 500VDC and from24VAC to500VAC. Flexible coil voltage connection can be mounted at top,bottom or both places.There is an integrated RC circuit in the contactor so this is not needed as an accessory.The contactors can be combined with motor protection or overload relays.All the contactors are in45mm width.There are a wide range of accessories that can be mounted such as auxiliary contacts,timers,reversing connections and Y/D connections.Thecontactorscanbe directlymountedon DIN rail or on base plate.Rated power for3 phase motorAC -3380 -400 Vfrom4 kW up to18.5kW.AC -1operationfrom25Aup to50A Technical specifications: Suitable for DIN rail mounting: FALSE Rated operational power AC -3400 V:7.5 Number of closing main contacts:3 Number of breaking main contacts NC :0

Producent
Varunummer
2755538
Modell
1SBL177001R1310
EAN
3471523110632
