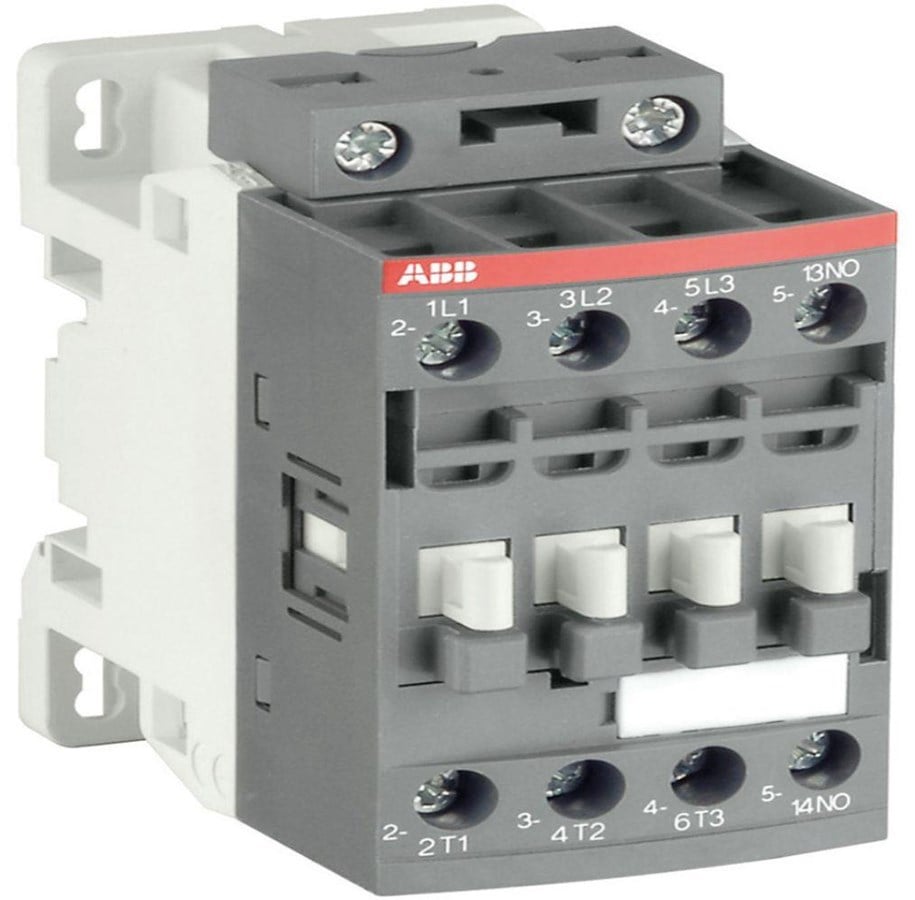

ABB Af09-30-10-11 24-60vac-dc contactor
AF09 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: AC or DC operated - Accessories: a wide range of accessories is available. Note: AF..-30-..-11 not suitable for a direct control by PLC-output. AF..-30-..-11 contactor type available in some countries: please consult your ABB representative.
284,00 kr
227,20 kr exkl. moms
Billigaste frakt: 49,00 kr
Leverantör, 2-3 vardagar leveranstid
Contactor 3-pole 4kW, 400V AC, control voltage 24-60V AC/20-60V DC, auxiliary contact 1NO, screw connection AF09-30-10-11 24-60V50/60HZ 20-60VDC. Product description: Contactors AF09-AF38 for motor operation or purely resistive loads. The contactors can handle a wide range of coil voltages as well as AC/DC voltages on the same contactor. Coil voltages from 20VDC to 500VDC and from 24VAC to500 VAC. Flexible coil voltage connection can be mounted at the top, bottom or both locations. There is an integrated RC circuit in the contactor so this is not needed as an accessory. The contactors can be combined with motor protection or overload relays. All contactors are in a width of45 mm.There are a wide range of accessories that can be mounted such as auxiliary contacts,timers,reversing connections and Y/D connections.Thecontactorscanbe directlymountedon DIN rail or on base plate.Rated power for3-phase motorAC -3380 -400 Vfrom4 kW up to18 .5 kW.AC -1operationfrom25Aup to50A.Technical specifications:SuitableforDINrailmounting:FALSERatedoperatingpowerAC -3400 V :4Numberofclosingmaincontacts:3NumberofbreakingmaincontactsNC :0
Inmatning spänning (min)
24 V
Inmatning spänning (max)
690 V
Växelström Frekvens
50 - 60 hz
Certifiering
IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14
Temperatur vid drift
-60 - 80 ° C
Förpackningens bredd
87 mm
Förpackningens höjd
47 mm
Vikt inkl. förpackning
270 g
Strömtillförsel
Inmatning spänning (min)
24 V
Inmatning spänning (max)
690 V
Växelström Frekvens
50 - 60 hz
Design
Certifiering
IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14
Miljökrav
Temperatur vid drift
-60 - 80 ° C
Vikt & dimension
Förpackning
Förpackningens bredd
87 mm
Förpackningens höjd
47 mm
Vikt inkl. förpackning
270 g
Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
