Varunummer: 2765328

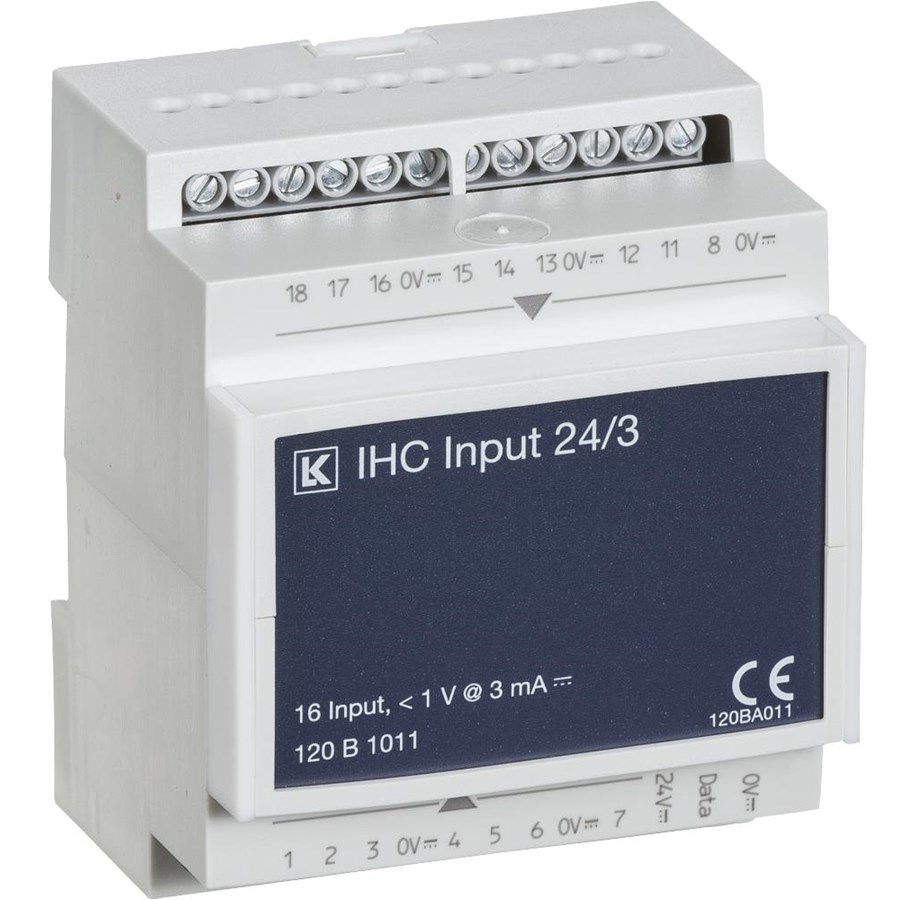

LK Ihc control input 24v d.c./3 ma 16 inputs

IHC Control input 24 V DC 3mA with 16 inputs. Used to collect the signals from the low-current contacts with low contact resistance, for example. alarm PIR, thermostats, magnetic switches and other signal generators with long lasting finish functions. Note! OPUS / FUGA PIR can not be used for this input module. To IHC system can be considered a low voltage system, it is a requirement that the used switches are insulated to double insulation (8 mm creepage distance) relative to the 230 / 400V network. It is possible to place the input module 24/3 both central controller and by a decentralized, distributed in the installation.

Läs mer
1 237,00 kr 989,60 kr exkl. moms
Gratis frakt
Leverantör, 2-3 vardagar leveranstid

IHC Input 24-3 LK Product Description: IHC Control Input 24 V DC 3mA with 16 inputs. Used for collecting signals from low-voltage switches with low resistance, such as alarm PIRs, thermostats, magnetic contacts and other signal transmitters with long-lasting closing functions. Note! OPUS/FUGA PIR cannot be used for this input module. In order for the IHC system to be considered a low-voltage system, it is a requirement that the contacts used are isolated corresponding to double insulation (8 mm creepage distance) in relation to the 230/400V network. It is possible to place the Input 24/3 module both centrally at the controller and decentrally distributed in the installation.

Producent
Varunummer
2765328
Modell
120B1011
EAN
5703302111423
Till producentens hemsida

Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
