Varunummer: 2765429

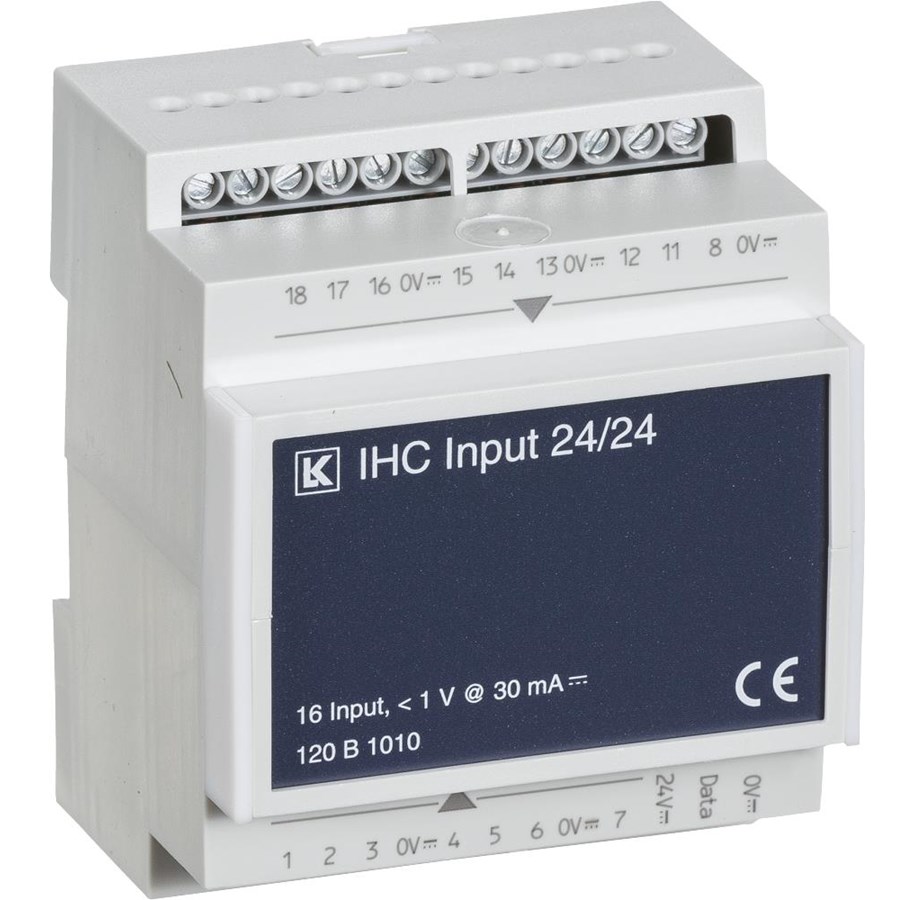

LK Ihc control input 24v d.c./24 ma 16 inputs

IHC Control input 24 V DC 24mA with 16 inputs. Used to collect the signals from the low-current switches, such as pressure control relatives, thermostats, and the like. To IHC system can be considered a low voltage system, it is a requirement that the used switches are insulated to double-insulation (8 mm creepage distance) relative to the 230 / 400V network. It is possible to place the input module 24 both centrally at the Controller and a decentralized, distributed in the installation.

Läs mer
1 242,00 kr 993,60 kr exkl. moms
Gratis frakt
Leverantör, 2-3 vardagar leveranstid

IHC Input module 24/24, 24VDC Product description: IHC Control Input 24 V DC 24mA with 16 inputs. Used for collecting signals from low voltage contacts, such as push buttons, thermostats and similar devices. In order for the IHC system to be considered a low voltage system, it is required that the contacts used are isolated corresponding to double insulation (8 mm creepage distance) in relation to the 230/400V mains network. It is possible to place the Input 24 module both centrally at the Controller and decentrally distributed throughout the installation.

Producent
Varunummer
2765429
Modell
120B1010
EAN
5703302026246
Till producentens hemsida
