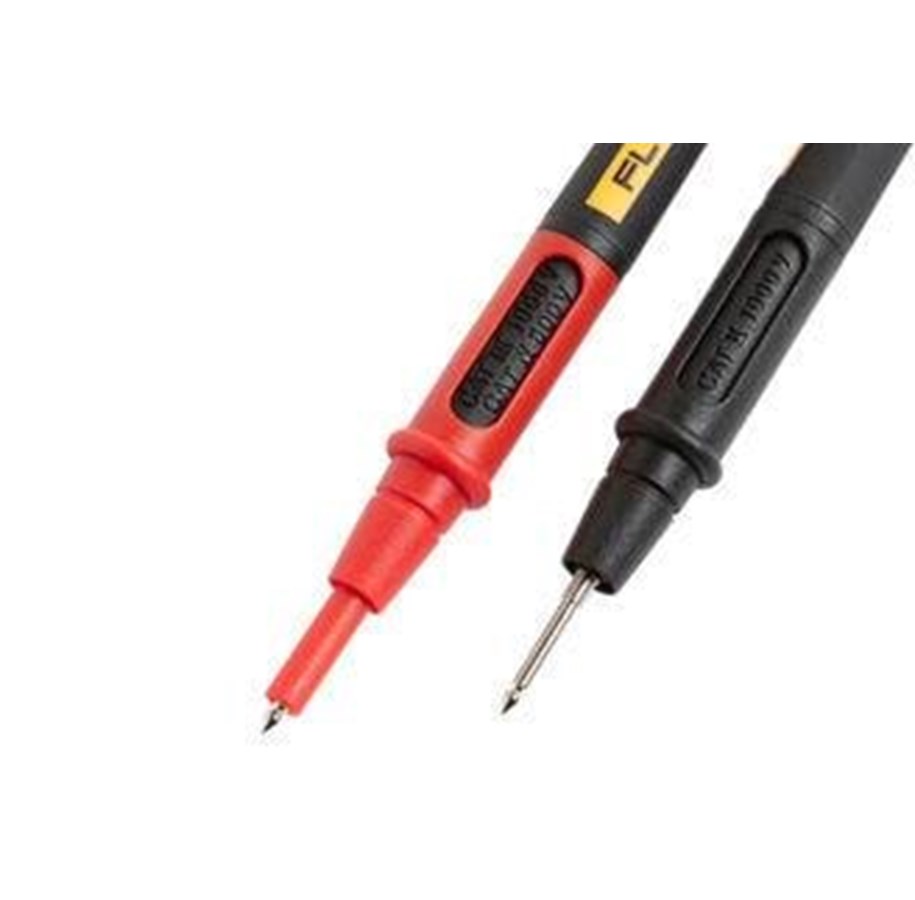

Fluke tl175 twistguardTMTM testledninger
Patented TwistGuardTM extendable tip shroud meets the highest electrical safety requirements to reduce tip exposure while providing the versatility needed for most measurementsNew WearGuardTM lead wire wear indication. Each test lead is covered by two layers of silicone insulation, inner contrasting color is exposed when the leads are nicked, scuffed, or otherwise damaged and in need of replacementDouble insulated silicone leads. TL175 test leads withstand high temperatures and remain flexible in cold temperatures.Extra-heavy duty strain relief on both probe-end and plug-end, tested beyond 30,000 bends without failure.Universal input plugs are compatible with all instruments that accept standard 4 mm shrouded banana plugsRatings: CAT II 1000 V, CAT III 1000 V, CAT IV 600 V, 10 A max., Pollution Degree 2TL175E also available. Includes removable 4 mm lantern tips that thread onto the lead tipProbes always show correct category rating for tip being usedEnvironmental ratings: -20 °C to 55 °C (-4 °F to 131 °F), altitude: 2000 m (6,562 ft)Conforms to EN61010-031
646,00 kr
516,80 kr exkl. moms
Billigaste frakt: 49,00 kr
Leverantör, 2-3 vardagar leveranstid
Fluke TL175 TwistGuardTM test leads Product description: Patented tip that can be extended and meets new electrical safety requirements for reducing sharp exposure while providing the versatility needed for most measurements. The length of the exposed probe tip can be changed from 3/4 (19 mm) to 4/25 (4 mm). New WearGuardTM indication of wear on wire. Each test lead is covered with two layers of silicone insulation. The inner contrasting color is exposed if the wires are cut, worn or otherwise damaged and need to be replaced. Double-insulated silicone wires. TL175 can withstand high temperatures and remain flexible at cold temperatures. Extra heavy-duty load protection both at the probe end and at the plug end has been tested to withstand 30,000 bends without failure.Universal plugs compatible with all instruments that can take standard 4mm encapsulated banana plugs.Classifications: CAT II 1000V, CAT III 1000V, CAT IV 600V, maximum current rating:10A,pollution degree2.TL175E includes removable lantern tips for versatility.The probes always show the correct category classification for the used tip.Environmental classification:-20°Cto55°C,elevation2000m.Complies with EN61010-031 standard
Mätkategorier som stöds
CAT II, CAT III, CAT IV
Längd på den exponerade testspetsen (min)
4 mm
Exponerad längd av givarspets (max)
1,9 cm
Isoleringsmaterial
Silikon
Temperatur vid drift
-20 - 55 ° C
Egenskaper
Mätkategorier som stöds
CAT II, CAT III, CAT IV
Längd på den exponerade testspetsen (min)
4 mm
Exponerad längd av givarspets (max)
1,9 cm
Isoleringsmaterial
Silikon
Miljökrav
Temperatur vid drift
-20 - 55 ° C
