Varunummer: 2769246

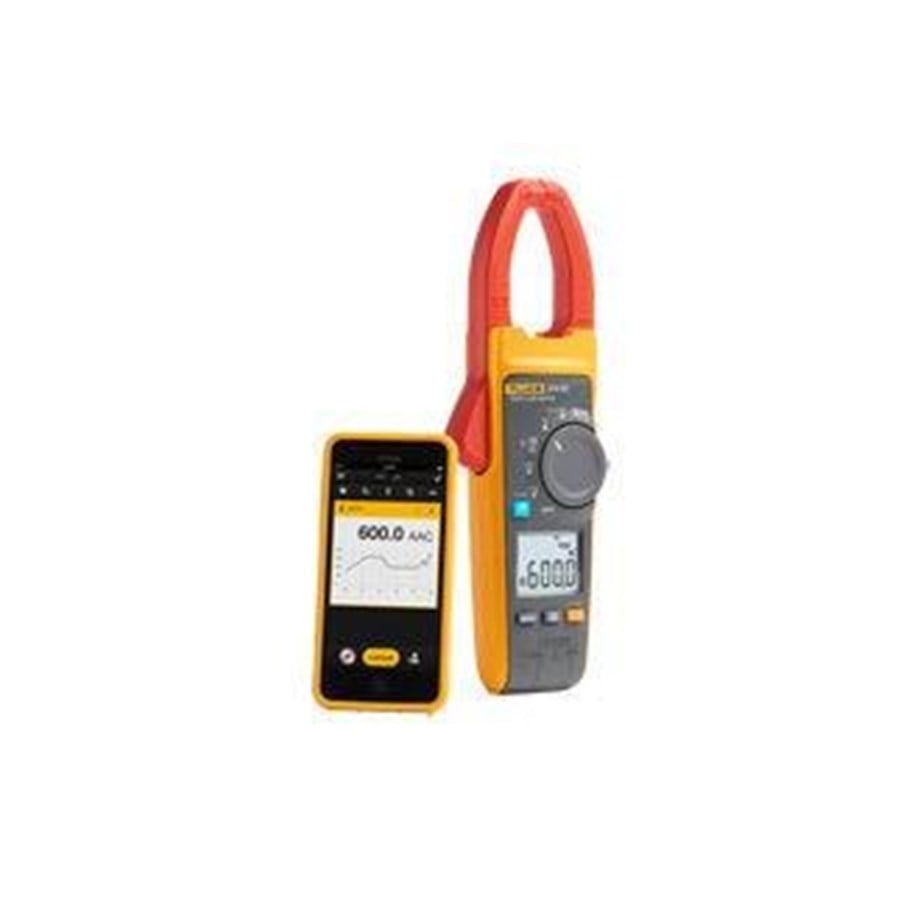

Fluke 374 fc

The Fluke 374 FC is part of the Fluke Connect family of wireless test tools. Now you can:Trend measurements and pinpoint intermittent faults by connecting your meter to your phone via Fluke Connect® Measurements appTransmit results wirelessly via Fluke Connect® Measurements appCreate and send reports right from the fieldStay safely away from the arc flash zone through Bluetooth connectivity to Apple and Android devicesThe Fluke 374 FC is the direct replacement for the Fluke 374 Clamp Meter.Connect your meter to your smartphone with Fluke Connect MeasurementsRead measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risksRecord results directly to your phone and the CloudCreate and share reports from the field via email, or converse in real-time with ShareLiveTM video callsCompatible with iFlex flexible current probe, use to expand the measurement range to 2500 A ac, provides access to large conductors in tight spacesCompatible with TPAK magnetic hanging strapProprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees itCAT IV 600 V, CAT III 1000 V safety ratingMeasurement Capability600 A ac and dc current measurement2500 A ac current measurement with (optional) iFlex flexible current probe1000 V ac and dc voltage measurementTrue-rms voltage and current for accurate measurements on non-linear signalsResistance measurement to 6000 with continuity detectionMin, max, average, and inrush recording to capture variations automatically1000 F capacitance measurementFluke 374 FC True-rms AC/DC Clamp MeterIncludes:Soft carrying caseTL75 test leadsTwo AA Alkaline batteriesCoated instruction cardSafety information sheet

7 393,00 kr 5 914,40 kr exkl. moms
Gratis frakt
Beställningsvara - leveranstid kan ej upplysas

Fluke 374 FC Product Description: The Fluke 374 FC has advanced troubleshooting features and is part of the Fluke Connect series of wireless test tools. Connect your meter to your smartphone with Fluke Connect Measurements. Read measurements on your phone from a safe distance wearing less protective gear while your meter stays in the hazardous zone. Save results directly to the phone and cloud. Create and share reports from the field via email or real-time ShareLiveTM video calls. Compatible with flexible iFlex current probe, use it to extend measurement range up to 2,500 A AC, accessing large conductors in tight spaces. Compatible with TPAK magnetic hanging strap specially designed technology for measuring inrush current for noise filtering and motor starting current detection just as protection circuits are exposed.CAT IV 600 V, CAT III 1000 V safety classification.Fluker's sand RMS AC/DC clamp meter includes:Soft carrying caseTL75 test leadsTwo AA alkaline batteriesSurface-treated instruction cardSafety data sheet

Producent
Varunummer
2769246
Modell
4696001
EAN
0095969798532
Mätningskategori
CAT III 1000V, CAT IV 600V
Växelström maximal upplösning (sond)
0,1 A
Likströmsspänning
1000 V
Växelspänning, upplösning (min)
0,1 V
Växelströmsspänning
1000 V
Likspänning, upplösning (min)
0,1 V
Resistans (min)
0,1 Ω
Resistans (max)
6000 Ω
Produktens färg
Svart, Röd, Gul
Batteriteknik
Alkalisk
Batterityp
AA
Antal batterier
2
Temperatur vid drift
-10 - 50 ° C
Temperaturintervall (förvaring)
-40 - 60 ° C
Intervall för relativ operativ luftfuktighet
0 - 90%
Altitud vid drift
0 - 3000 m
Höjd över havet i avstängt läge
0 - 12000 m
Bredd
85 mm
Djup
45 mm
Höjd
249 mm
Vikt
395 g
Väska
Ja
Batterier medföljer
Ja
Testkablar
Ja
Instruktionsblad
Ja

Prestanda

Mätningskategori
CAT III 1000V, CAT IV 600V
Växelström maximal upplösning (sond)
0,1 A
Likströmsspänning
1000 V
Växelspänning, upplösning (min)
0,1 V
Växelströmsspänning
1000 V
Likspänning, upplösning (min)
0,1 V
Resistans (min)
0,1 Ω
Resistans (max)
6000 Ω

Design

Produktens färg
Svart, Röd, Gul

Strömtillförsel

Batteriteknik
Alkalisk
Batterityp
AA
Antal batterier
2

Miljökrav

Temperatur vid drift
-10 - 50 ° C
Temperaturintervall (förvaring)
-40 - 60 ° C
Intervall för relativ operativ luftfuktighet
0 - 90%
Altitud vid drift
0 - 3000 m
Höjd över havet i avstängt läge
0 - 12000 m

Vikt & dimension

Bredd
85 mm
Djup
45 mm
Höjd
249 mm
Vikt
395 g

Förpackningens innehåll

Väska
Ja
Batterier medföljer
Ja
Testkablar
Ja
Instruktionsblad
Ja

Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
