LK Section board type:pge 150-21 white

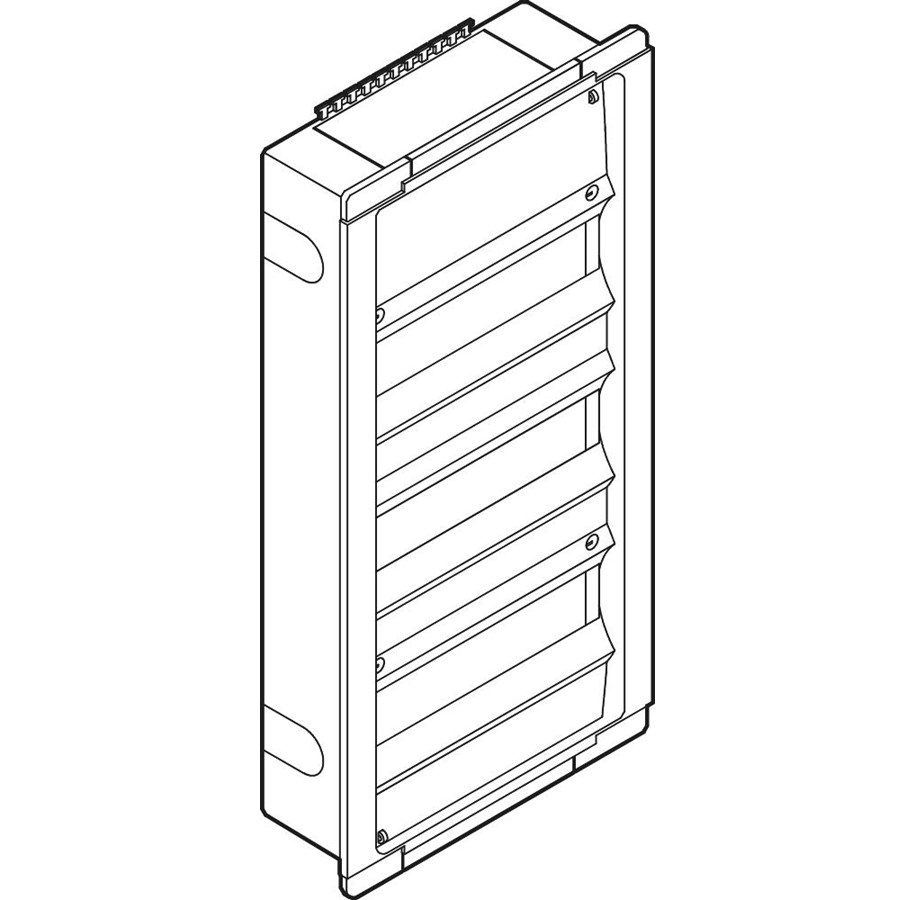

Group board PGE150-21 white Product description: Application: Designed for flush mounting in sheet walls or masonry. When mounted in masonry, the installation box is secured with screws through the holes located on the edge of the box. When mounted in a sheet wall, use sheet wall brackets. Construction: Consists of an installation box, base frame and sealable component cover. Can be horizontally or vertically combined using combination brackets. The component openings are 252 mm, equivalent to 7 M36 units and can be expanded by 9 mm on each side. The installation box has removable cable covers at top and bottom as well as knockout sheets on the back and sides of the installation box. Comes with a branching terminal for protective conductor for 4x16 mm2 and 16x6 mm2 cables. Additional branching terminals can be mounted on base frame or installation box.The distance between DIN rails is 150mm and distance from bottom of installation case to underside of DIN rail is 23.5mm.PGE150-21 cover set must be ordered separately.Technical data:Isolation class: Fully insulated.Rated current le:63A.Power loss:max32W.Electronic manual available online.Color:white Technical specifications: Color:whiteRated current le :63A.Isolation class :Fully insulated.Power loss (W):Max32 W
