Varunummer: 2766786

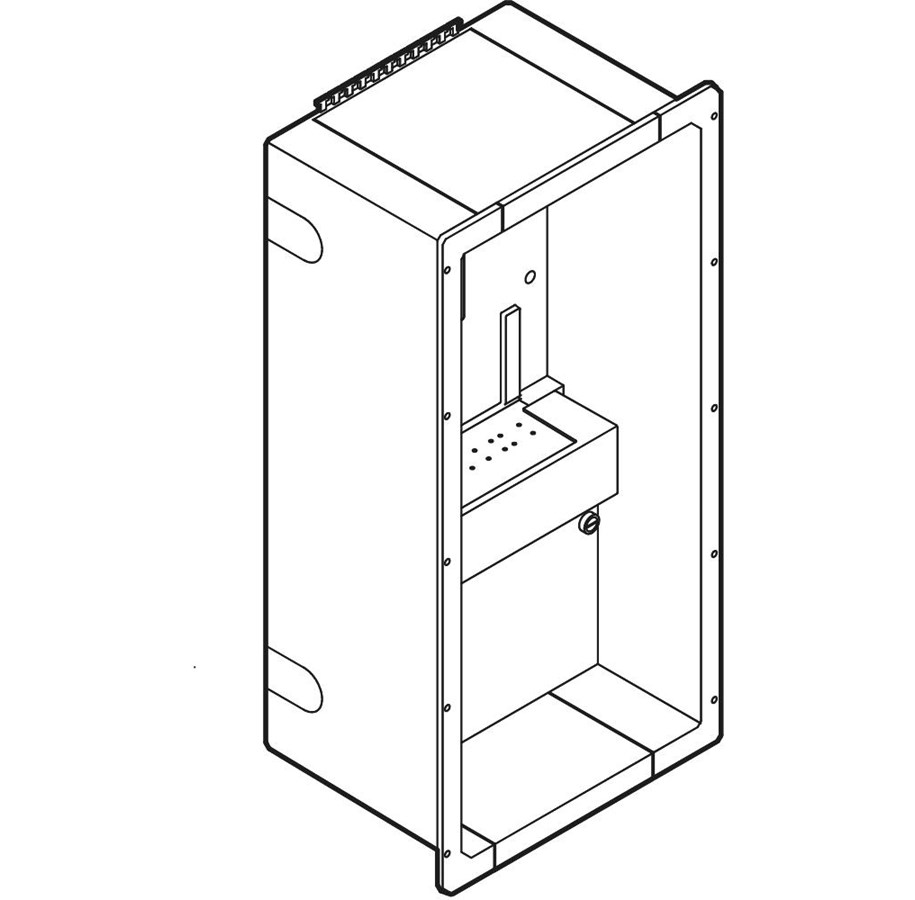

LK Recessed meter cabinet type pme 150-s
empty consumer unit - PME 150-s - flush mounting - for pin connection
4 798,00 kr
3 838,40 kr exkl. moms
Gratis frakt
Leverantör, 3-4 vardagar leveranstid
Painting board PME150-s for plug-in connection Product description: Application: Designed for flush mounting in sheet walls or masonry. When mounted in masonry, the installation box is secured with screws via the holes located on the edge of the box. When mounted in a sheet wall, use a sheet wall bracket. Can be assembled horizontally or vertically. Can also be assembled with PGSE150-18. For looping earth conductors, branching terminal 169D1217 can be used. Cover set must be ordered separately.Construction: Consists of an installation box, base frame with meter socket box, cover frame and terminal cover plate. The installation box is equipped with removable cable glands at top and bottom as well as knockout blanks on the back and sides of the installation box.The cover has sealable locking screws.Technical data:Enclosure class: IP20D.Insulation class: Fully insulated.Rated voltage: 400 V a.c.Rated current : Max 63 A.Ambient temperature : -10 °C to +35 °C.Terminals : Cu 4-25 mm2 , Al 16-25 mm2 only solid round.Loop option : Cu 2x16 mm2 or1x16mm2+2x10mm².Al not allowed.Earth loop connection : Branching terminal169D1217 can be used.Standards : FR2000.Electronic manual : See online catalog.Technical specificationsTerminals:Cu4-25mm² ,Al16-25mm² only solid round.Ambient temperature (°C): -10°C to +35°C.Rated current:max63A.Insulation class:Fully insulated
