Varunummer: 2748785

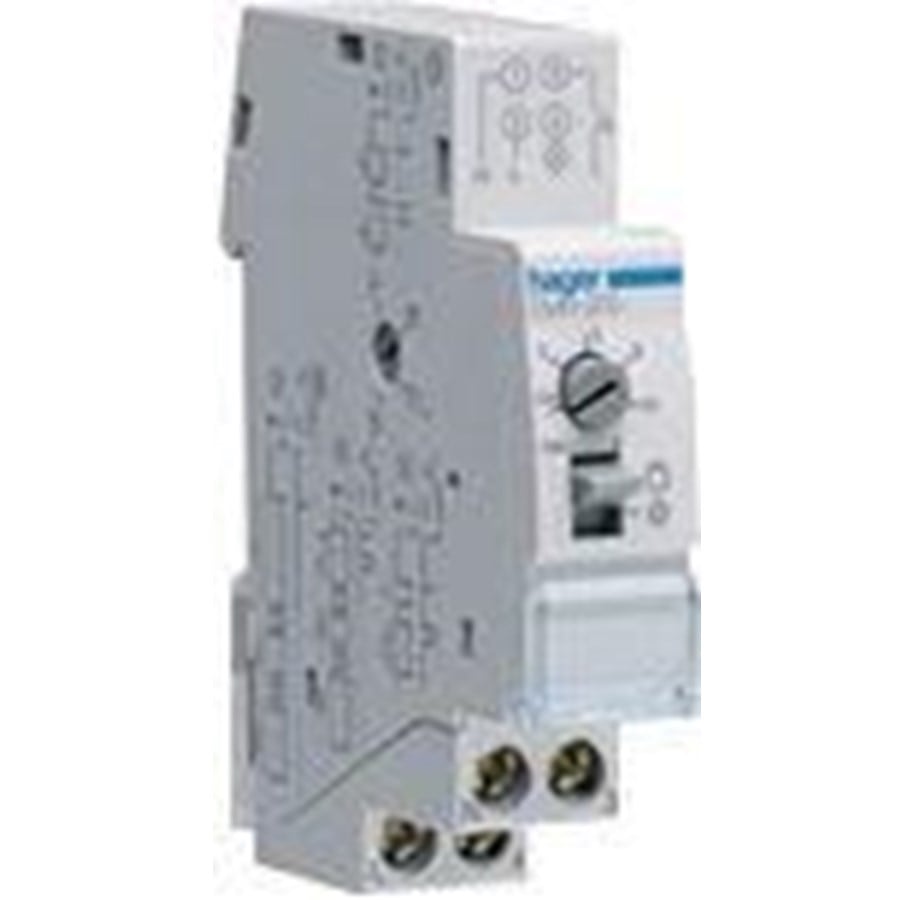

Hager Multifunction stair case time lag switch
Stair case time lag switchTechnical characteristics:Type of contacts: 1NOSupply voltage: 230V ACFrequency: 50/60 HzBreaking capacity: 16A 250V AC1Max. power with incandescent lamps: 2300 WType of connection: With screwConnection cross-sect. rigid cable: 1,5 / 10mm2Connection cross-sect. flexible cable: 1 / 6mm2Operating temperature: -10 to 55 °CNumber of modules: 1
921,00 kr
736,80 kr exkl. moms
Billigaste frakt: 59,00 kr
Leverantör, 2-3 vardagar leveranstid
Staircase timer multi 30s-10 min/1 time Product description: Multifunctional staircase timer. The staircase timer is used for time-limited lighting control in stairwells, entrances, garages and outdoor lighting etc. - Automatic setting for 3- or 4-wire system - Max. 100mA load from LED lights - Operation via push buttons Rated current In: 16A AC1 Rated voltage Un: 230VAC Coil voltage: 230VAC Coil consumption: 5W Time setting: from 30s to10 min Connection: flexible conductor of size16mm2 Load capacity : Incandescent lamps2300W Halogen lamps at230V2300W Fluorescent tubes (series)3600W Electronic transformer.2300WEMN005 has the same functions as EMN001 but with an additional four functions:-A : Time delay from30 sec.to10 min.-B : With switch-off warning during the last40 sec.- short flashes-C : Time delay of1 hour (with long press on >3 sec.)-D : Time delay with long-term operation and switch-off warning Width: one module of17.5mm
Producent
Varunummer
2748785
Modell
EMN005
EAN
3250612339952
AC-inspänning
195 - 253 V
Antal
1
Strömtillförsel
AC-inspänning
195 - 253 V
Förpackningens innehåll
Antal
1
