Varunummer: 2892503

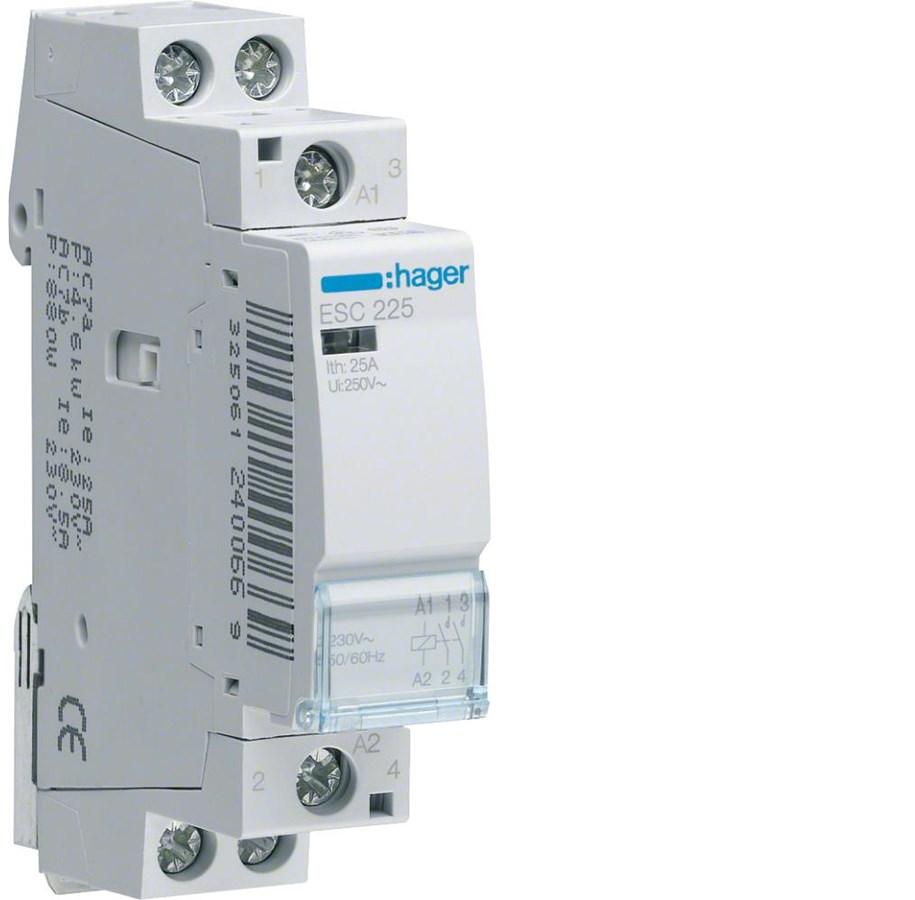

Hager Contactor 25a 1no+1nc 230v 1m

Contactor 25A 1NO+1NC 230V Standard for the control of circuitsCan be equipped with auxiliary contact and sealig capsRated operational voltage: 230 V Frequency: 50/60Hz Type of connection: With screw Operating temperature: -10 to 50 ° C Storage temperature: -40 to 80 ° C Connection cross-sect rigid cable: 1 / 10mm2 Connection cross-sect. flexible cable: 1 / 6mm2 To reduce the mutual heating when using several contactorsit is recommended to use the LZ060 spacerNumber of modules: 1According to standard: EN 61095

Läs mer
597,00 kr 477,60 kr exkl. moms
Billigaste frakt: 59,00 kr
Leverantör, 2-3 vardagar leveranstid

Contactor 25A 1NO + 1NC 230V AC Product description: Contactor rated at 25A with one normally open and one normally closed contact suitable for controlling and switching lighting systems and heating in residential and office environments. Rated voltage: 250V AC, frequency:50/60Hz. Operating category: AC1. Number of operations: up to one million cycles. Operating temperature range from -10°C to +50°C. Connection terminals accept solid conductors ranging from 1-10mm² or flexible conductors ranging from 1-6mm² in size. Width is equivalent to one module at a dimension of17.5mm wide.

Producent
Varunummer
2892503
Modell
ESC227
EAN
3250612400621
Till producentens hemsida
Antal moduler
1
Kontakt nuvarande kapacitet
25 A
Antal kontakter
2
AC-inspänning
230 V

Egenskaper

Antal moduler
1
Kontakt nuvarande kapacitet
25 A
Antal kontakter
2

Strömtillförsel

AC-inspänning
230 V

Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
