Varunummer: 2759797

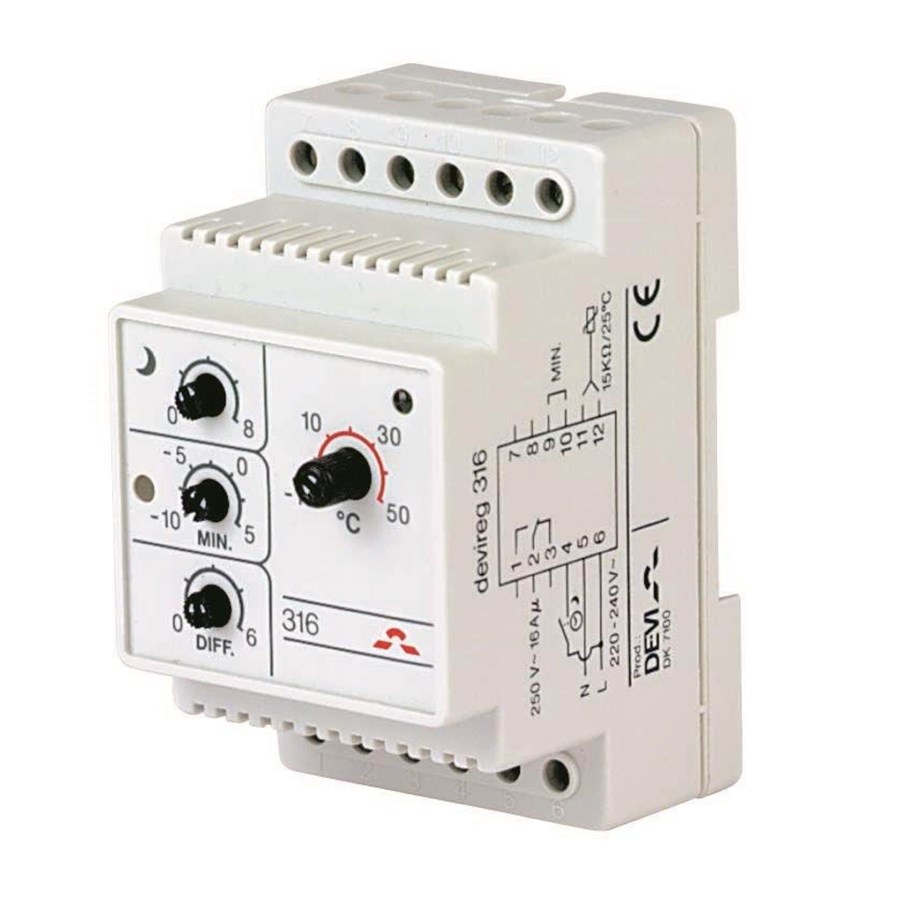

Danfoss Thermostat devireg 316 inclusiv 3m sensor cable

DEVIreg TM 316 is a simple, electronic thermostat with enhanced installation functionalityin cabinets with DIN rail fittings. The thermostat is primarily used for frost protection on roofs, igutters and downpipes. In addition, it can be used to control room and floor temperature,ventilation, cooling or snowmelt on the ground, pipe fencing and similar installations.The primary characteristics of the thermostat are the temperature setting range - with setting ofboth an upper and lower temperature, between which the thermostat allows the system to heat.This mode is primarily used to control frost protection systems on roofs, gutters anddownpipe (an external outdoor air sensor must be used).The thermostat is equipped with two additional buttons for adjusting the hysteresis andthe temperature value for use during economy periods (an external timer is required).The thermostat has a relay with two contact pairs - NO (normally open) and NC (normally closed), and it is intended to use the thermostat for heat andcooling systems. In addition, the NO and NC contact pairs are not powered by a voltage source within the thermostat and can be used forcontrol systems with any voltage up to 250 V. It is designed so that the sensor circuit is galvanically separated from the high voltage part.

Läs mer
1 787,00 kr 1 429,60 kr exkl. moms
Gratis frakt
Leverantör, 3-4 vardagar leveranstid

Thermostat DEVIreg 316 -10°+50°C - 2C Product description: DEVIregTM 316 is a simple, electronic thermostat with improved functionality for installation in electrical cabinets with DIN rail mounting. The thermostat is primarily used for frost protection on roofs, gutters and downspouts. In addition, it can be used to control room and floor temperature, ventilation, cooling or snow melting on the ground, pipe protection and similar installations. The primary features of the thermostat are the temperature setting range - with settings for both upper and lower temperatures between which the thermostat allows the system to heat up. This mode is primarily used to control frost protection systems on roofs, gutters and downspouts (an external outdoor sensor must be used). The thermostat is equipped with two additional buttons for adjusting hysteresis and temperature value for use during economy periods (an external timer must be used). The thermostat has a relay with two contact pairs - NO (normally open) and NC (normally closed), designed to use the thermostat for heatingand cooling systems. Furthermore, NO- and NC-contact pairs are not voltage supplied via a voltage source inside the thermostatand can be used to control systems with any voltage up to 250 V. It is designed so thatthe sensor circuitryis galvanically isolated fromthe high-voltage part.Technical specifications: Width(mm):95Height(mm):95Length(mm):95Temperature range(°C):-10°C-+50°C

Producent
Varunummer
2759797
Modell
140F1075
EAN
5703466209240
Till producentens hemsida
