Varunummer: 3530570

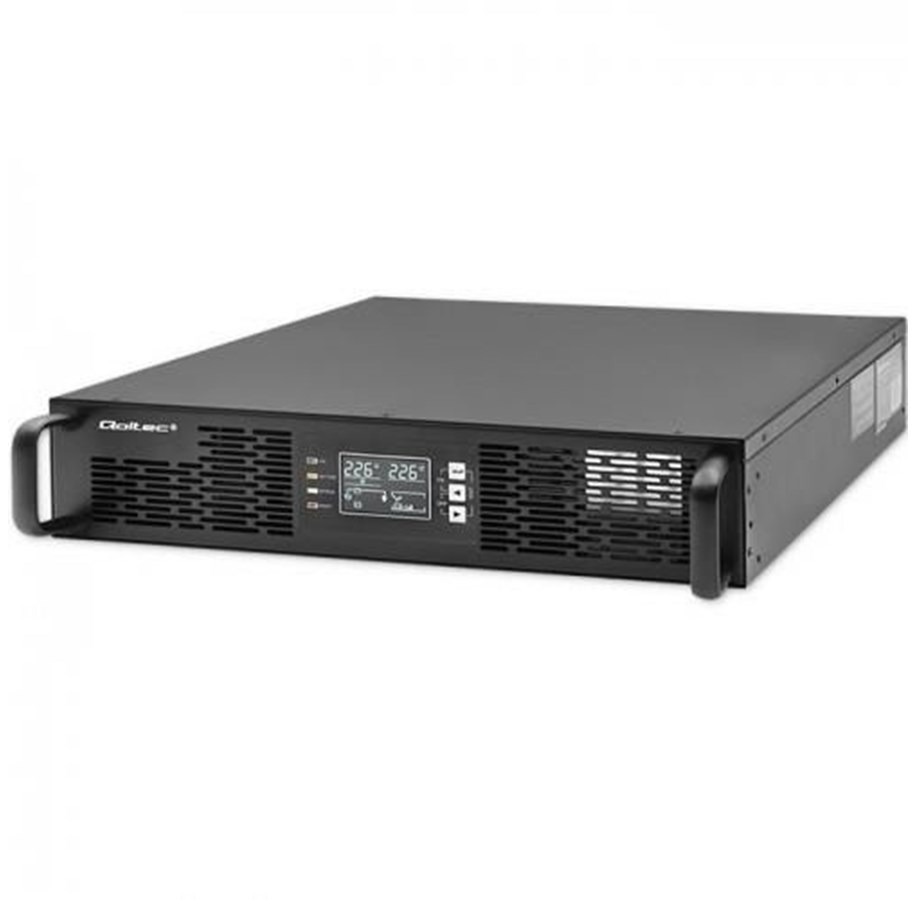

Qoltec 52285 online rack-UPS - 1000VA/1000W - LCD - 2x Type F

UPS för rackmontering med 1 kVA / 1000 W uteffekt, online dubbelkonvertering, ren sinusvåg, LCD-display, EPO-gränssnitt och två Type F AC-uttag.

Qoltec 52285 ger stabil ström med noll omkopplingstid, effektfaktor 1.0 och skydd mot överbelastning, kortslutning och överhettning. Den inkluderar aktiv kylning, inbyggda 2 x 7Ah-batterier, RS-232-kommunikation, USB-port och möjlighet att lägga till SNMP-hantering.

Utformad för IT-infrastruktur och känslig utrustning hjälper den till att upprätthålla kontinuerlig drift vid strömavbrott, spänningsfall och störningar i elnätet.

3 565,00 kr 2 852,00 kr exkl. moms
Gratis frakt
Beställningsvara, 10-11 vardagar leveranstid

Qoltec Uninterruptible Power Supply UPS for RACK
RACK UPS from Qoltec suitable for rack mounting. It will provide your device with clean power with constant voltage and output frequency and comprehensive protection when powering even the most sensitive equipment. Features of the power supply include:
- Pure sine wave
- Zero switching time
- Double conversion
- True Isolation technology - offers the most complete power protection and highest power quality for all IT applications.
It will meet the requirements of anyone who wants to have control over the stable operation of their equipment regardless of mains power fluctuations.
SNMP compatible module can be fitted.

Eliminates the risk of data loss and equipment failure due to power outages or voltage drops
The Qoltec 1kVA 1000W RACK UPS is the perfect solution for those who value business continuity and security for their IT infrastructure. This state-of-the-art on-line UPS provides an uninterrupted power supply, eliminating the risk of data loss and equipment failure due to power outages or voltage drops. With it, you can rest assured that your servers and equipment are running uninterrupted, ensuring stable operation and the security of stored information.

Power factor 1.0, zero switching time, double conversion, ECO mode and more
The Qoltec 1kVA RACK UPS is distinguished by :
- power factor of 1.0 - all supplied electrical power is used to do the job, which is the optimum situation in the energy efficiency of the electrical system,
- pure sinusoidal energy without interference,
- the zero switching time is the rate at which the UPS will switch to battery mode in the event of a power failure,
- protection against overloading, short-circuiting and overheating,
- double conversion - stable power supply,
- ECO mode - provides the best balance between energy saving and power conservation,
- extended back-up time - the additional time the UPS will be able to autonomously supply power to the connected equipment in the event of a main power failure,
- true Isolation technology - offers the most complete power protection and highest power quality for all IT applications,
- built-in service bypass - for trouble-free unit maintenance,
- the possibility of mounting an SNMP card or connecting an SNMP adapter - this is a network management standard with which you can quickly and easily collect information about connected devices or configure their parameters,
- EPO interface - a function that allows the power supply to be shut down remotely in emergency situations,
- RS-232 port and RS-232 cable - is a communication bus designed for serial data transmission,
- built-in set of 2 x 7Ah batteries,
- fan - ensures intensive cooling of the unit during continuous operation.

Stable, clean energy with sinusoidal shape without interference for complete protection of equipment
Qoltec RACK UPS units offer stable interference-free pure sine wave power. It's complete protection for your devices, thanks to the double conversion, which first converts the AC of the mains supply to DC and then to AC, ensuring the highest level of power quality and protecting against potential mains disturbances such as voltage drops, power outages, surges and failures.

The back-up time of the equipment is a few to several minutes
An online UPS has a voltage that is continuously recycled; in the event of an unexpected drop in mains voltage, the UPS maintains the operation of the connected device, thanks to the built-in batteries, which are continuously charged. Thus, mains power is only needed to charge the batteries. Permanently connected devices always receive clean energy, without interference from the battery, so the output voltage of the online UPS will always be constant, regardless of the input voltage. The back-up time of the equipment is from a few minutes to several minutes which allows data to be saved and the equipment to be switched off safely, minimising the risk of data loss and equipment damage.

Integrated LCD display for intuitive operation and monitoring of power supply parameters
Thanks to the integrated LCD display, managing the unit becomes intuitive and convenient. On the screen you receive up-to-date information on the operating status and key parameters of the power supply. This ensures that you are kept up to date with the operation of the unit, allowing you to react quickly to any problems and to optimise the operation to suit your needs. Working with the power supply becomes easy, fast and reliable, allowing you to concentrate on your main tasks without worrying about the stability of the power supply.

Product with 24 months guarantee
Do you value high-quality products when making a purchase? Our solutions will meet your expectations. Each of our offered on-line UPS RACK power supplies comes with a 24-month warranty from the date of purchase.

Producent
Varunummer
3530570
Modell
52285
EAN
5901878522852
Till producentens hemsida
UPS-topologi
Dubbelkonvertering (Online)
Uteffekt kapacitet (VA)
1 kVA
Uteffekt
1000 W
Vågform
Ren sinus
Inmatning spänning (min)
110 V
Inmatning spänning (max)
300 V
Utgång, driftspänning (max)
230 V
Utfrekvens
50/60 hz
Utgångsfrekvensreglering
0.05 hz
Utgångsspänningsreglering
5%
Ljudnivå Lc IEC
50 dB
Effekt skyddsfunktioner
Överspänning, Överbelastning, Kortslutning
AC försäljningsställen
Typ F
Antal uttag AC
2 AC-utgångar
USB-port
Ja
Seriellt gränssnitt
Ja
Seriellt gränssnitt
RS-232
RS-232 port
1
Batterikapacitet
7 Ah
Batterispänning
24 V
Antal batterier
2
Formfaktor
Rackmonterad
Produktens färg
Svart
Kylning typ
Aktiv
Inbyggd fläkt
Ja
Kontrolltyp
Knappar
Skärmtyp
LCD
LED-indikatorer
Ja
Temperatur vid drift
0 - 40 ° C
Temperaturintervall (förvaring)
-15 - 60 ° C
Bredd
385 mm
Djup
438 mm
Höjd
88 mm
Vikt
10 kg
Förpackningens bredd
550 mm
Låddjup
470 mm
Förpackningens höjd
180 mm
Vikt inkl. förpackning
11 kg

Egenskaper

UPS-topologi
Dubbelkonvertering (Online)
Uteffekt kapacitet (VA)
1 kVA
Uteffekt
1000 W
Vågform
Ren sinus
Inmatning spänning (min)
110 V
Inmatning spänning (max)
300 V
Utgång, driftspänning (max)
230 V
Utfrekvens
50/60 hz
Utgångsfrekvensreglering
0.05 hz
Utgångsspänningsreglering
5%
Ljudnivå Lc IEC
50 dB
Effekt skyddsfunktioner
Överspänning, Överbelastning, Kortslutning

Anslutningar

AC försäljningsställen
Typ F
Antal uttag AC
2 AC-utgångar
USB-port
Ja
Seriellt gränssnitt
Ja
Seriellt gränssnitt
RS-232
RS-232 port
1

Batteri

Batterikapacitet
7 Ah
Batterispänning
24 V
Antal batterier
2

Design

Formfaktor
Rackmonterad
Produktens färg
Svart
Kylning typ
Aktiv
Inbyggd fläkt
Ja
Kontrolltyp
Knappar
Skärmtyp
LCD
LED-indikatorer
Ja

Miljökrav

Temperatur vid drift
0 - 40 ° C
Temperaturintervall (förvaring)
-15 - 60 ° C

Vikt & dimension

Bredd
385 mm
Djup
438 mm
Höjd
88 mm
Vikt
10 kg

Förpackning

Förpackningens bredd
550 mm
Låddjup
470 mm
Förpackningens höjd
180 mm
Vikt inkl. förpackning
11 kg

Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
