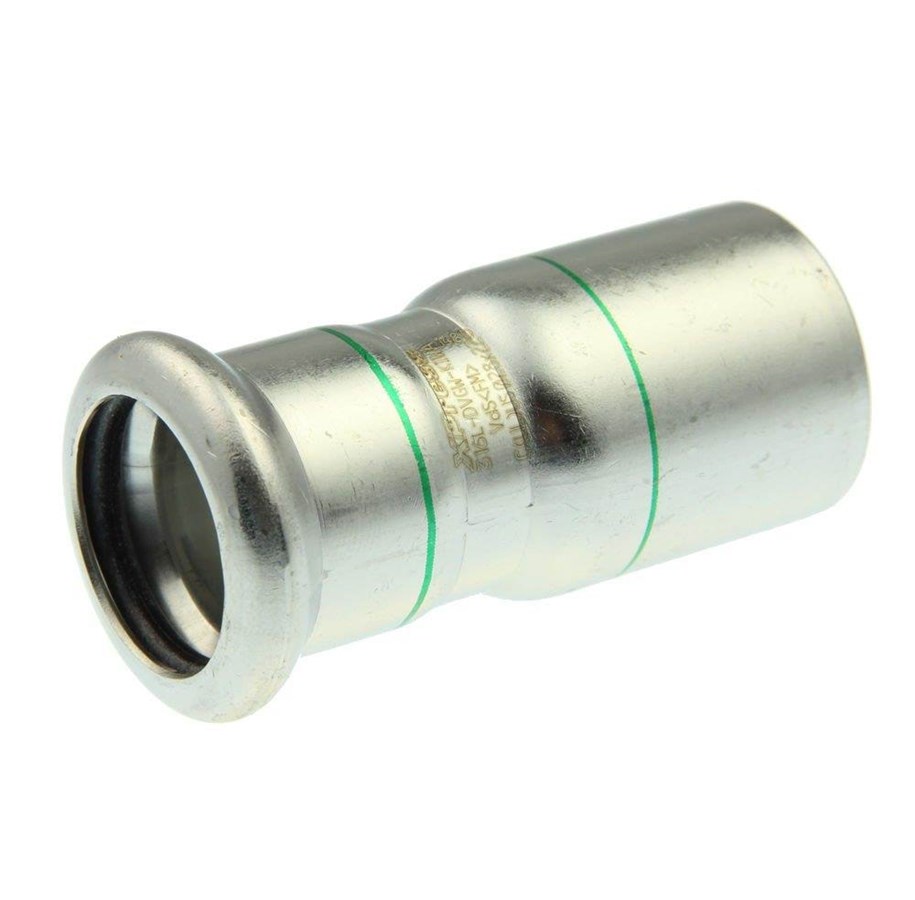

Vsh Fabrieken Xpr stainless reducer fø 28x35

VSH reduction nipple/socket acid-resistant 35X28 mm Product description: VSH X Press in stainless steel is a complete system with fittings and pipes from 15 mm - 108 mm for installations for domestic water, rainwater, softened water, desalinated water, distilled water, heating systems and cooling systems. Benefits: Can be pressed with most brands of universal M-profile pressing tools. Complete system program with fittings, pipes and valves. Approved in accordance with DVGW working diagram W534. Very precise tolerances make the pipe easy to insert into fittings. Pressure testing of all welded parts. VA approved. Suitable for all pipe types that comply with DIN 17455.Technical characteristics Material: Pipe and fittings: AISI 316 (1.4401) O-ring: EPDM (LBP) Leak Before Pressed Application area: Medium: Water Temperature:-20/+110 C Pressure:max16 bar Approval :VAProduct family VSH XPress in galvanized steel is a complete system with fittings and pipes ranging from12mm-108mmfor heatingandcooling systems.Benefits Can be pressedwithmostbrands ofuniversalM-profilepressingtools.Complete systemprogramwithfittings,pipesandvalves.O-ringwithleakbeforepressed.Laser-weldedjoints.Allweldedjointsarepressuretested.Veryprecisetolerancesmakethepipeeasytoinsertintofittings.SuitableforallpipetypescomplyingwithEN10305-3(formerlyDIN2394).Technical characteristics Material:FittingsGalvanizedsteelRSt34-2 PackingEPDM leak before pressed(LBP) Application area MediumWater Temperature:-20/+110C Pressure:max16bar Technical specifications Weight0.087Dimension35X28mm
