Schneider Electric Screw terminal contact b

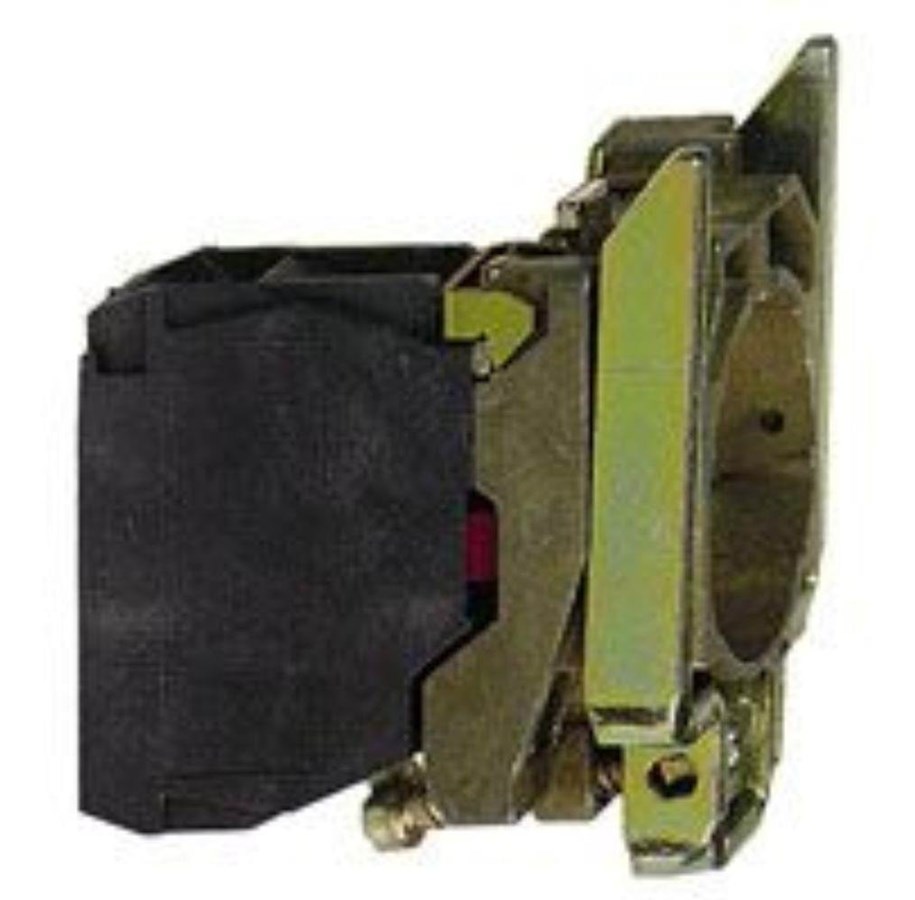

Harmony contact block in metal consisting of 1xNO+2xNC contact elements with screw terminals. Product description: Pushbuttons, switches and diodes with chrome-plated metal front rings, Ø 22 mm. Very wide range of products including pushbuttons, impulse buttons, multi-function buttons in the same Ø22 hole, switches and key grips. Dioders (LED-, glow- or neon bulbs). Combined functions: contact + signal (lamp press). Finished products (XB**) or loose parts (ZB**) assembled at customer's site. Connection to contact element: screw terminal with self-tightening feature, plug-in-with connector or finished cables, spade connectors and spring clamps. High power contacts (10A) normally 6A. Gold contacts for early closing and late breaking circuits that are robust and safe certified to meet requirements on all continents including EN/IEC UL CSA CCC Gost JIS NEMA...CE marked up to IP66 IP69K Electric contacts with low load capacity but high efficiency Ruggedized connection screws that do not require tightening Also available for use in harsh environments A complete set of accessories is available for applications exposed daily to high-pressure cleaning dust extreme temperatures etc More information can be found under Additional Links Simple and fast installation requires only one installation program Secured by a single locking screw that prevents rotation Common accessories Technical specifications Type: NO+2NC
