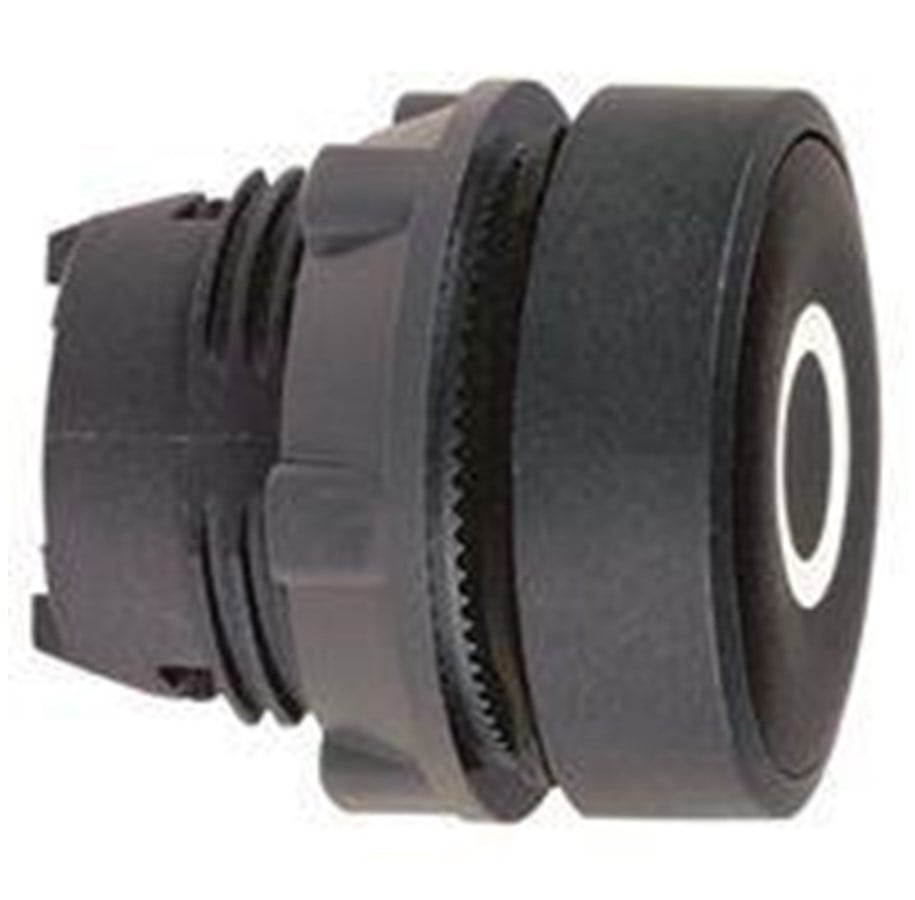

Schneider Electric Pushbutton operator head

ZB5AA232 flush-mounted black button label: O Product description: Pushbuttons, rotary and key switches Harmony Style 5 (Series XB5) plastic Ø 22 mm - Complete units - Paddle push, black Ø40mm Pushbutton program Harmony style 5 The pushbutton program Harmony style 5 designates the series of pushbuttons, signal lamps and lamp pushes with plastic front ring. The series type numbers start with XB5 and replace the Ø22 mm XA2-B series. However, the XA2-B series is still used with the XAC pendant push program and is therefore included in this catalog. See section on pendant pushes. Signal lamps and lamp pushes now use Protected LED technology, which provides up to 100,000 hours of maintenance-free operation. Some advantages of the new LEDs compared to traditional incandescent bulbs include: less maintenance no need for lamp testing all colors available (including blue and white) large voltage range with same light intensity: 12V and 230V (see limit values ​​on page 311). Connection can be made either via screws with locking washer, plug or pins for printed circuit boards.The program consists of:Complete units XB5-AComponents for assembly ZB5-ALoose parts and accessories ZB5-ADThe complete units consist of:Flush-mounted buttons, flush-mounted with silicone cap, raised buttons and paddle presses , double-push buttons , emergency stop (push-pull , press-turn , emergency stop with key according to EN418), rotary switch , key switch.Signal lamps (3 types):With built-in LED for BA9s incandescent bulbs direct supply or transformer.Lamp switches (five types):Round ones With built-in LED For BA9s incandescent bulbs direct supply or transformer Double-lamp switch With built-in LED And rotary switch With built-in LED.Signs(common to XB4andXB55eries)The signs can be designed by the user using design software provided on a floppy disk.Ø 22 mm timers, sounders and fuse holdersAmong other products from the Harmony style 5 series are:timers from 0 to 9999.9 hoursSounders, 80DBFuse holders for 5x20mm fuses Technical specifications: Color: BlackType: Flush-mountedContacts: O
