Varunummer: 2757585

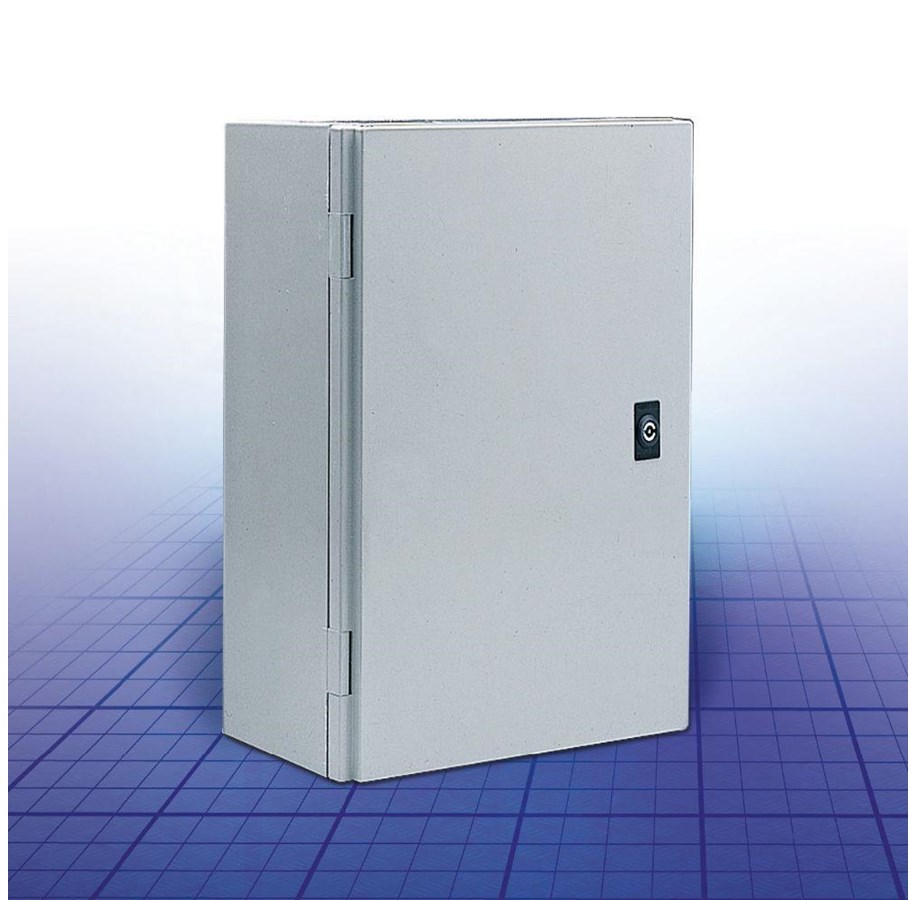

ELDON Wall mounted 735x535x270
Wall mounted, 735x535x270, Compact enclosure, 1-door, no MP, polyester, IP66
3 720,00 kr
2 976,00 kr exkl. moms
Gratis frakt
Leverantör, 2-3 vardagar leveranstid
Wall cabinet 735x535x270 UCP750 Product description: Description: Pol. Cabinet 735x535x270 Material: Material: Fiberglass reinforced polyester. UCPT Window of polycarbonate. Cabinet: Monoblock cast with a thickness of 3 mm. Four holes for direct wall mounting. Without flange openings.Door: Door with or without window and 180o opening. For UCP/UCPT750 and larger sizes, a door support ensures that the door returns to the center position when closed.Sealing with foamed polyurethane packing in one piece.Lock:DIN 3 mm insert and 90o movement.UCP/UCPT540 and above have three locking points.Other locks are supplied as accessories.Temperature range:-50 °C to +70 °C during continuous use (temperature peaks up to +150 oC).Characteristics:self-extinguishing and halogen-free.Double insulated according to DS/EN60439-1.Nominal insulation voltage Ui =1000 V.Protection class :In accordance with IP66and NEMA4,4X,12,and13.Impact resistance IK10(IK07for cabinets with glass doors)Surface treatment RAL7035,colored raw material.Delivery includes:Cabinetwithdoor,mountingscrewsforthemountingplate,andanadhesive rain cover.Approvals CE.For CSAandULapproval,pleasecontactoursalesdepartment.Technical specifications Color GrayWidth535Height735Depth270
