ELDON Wall mounted 400x300x155

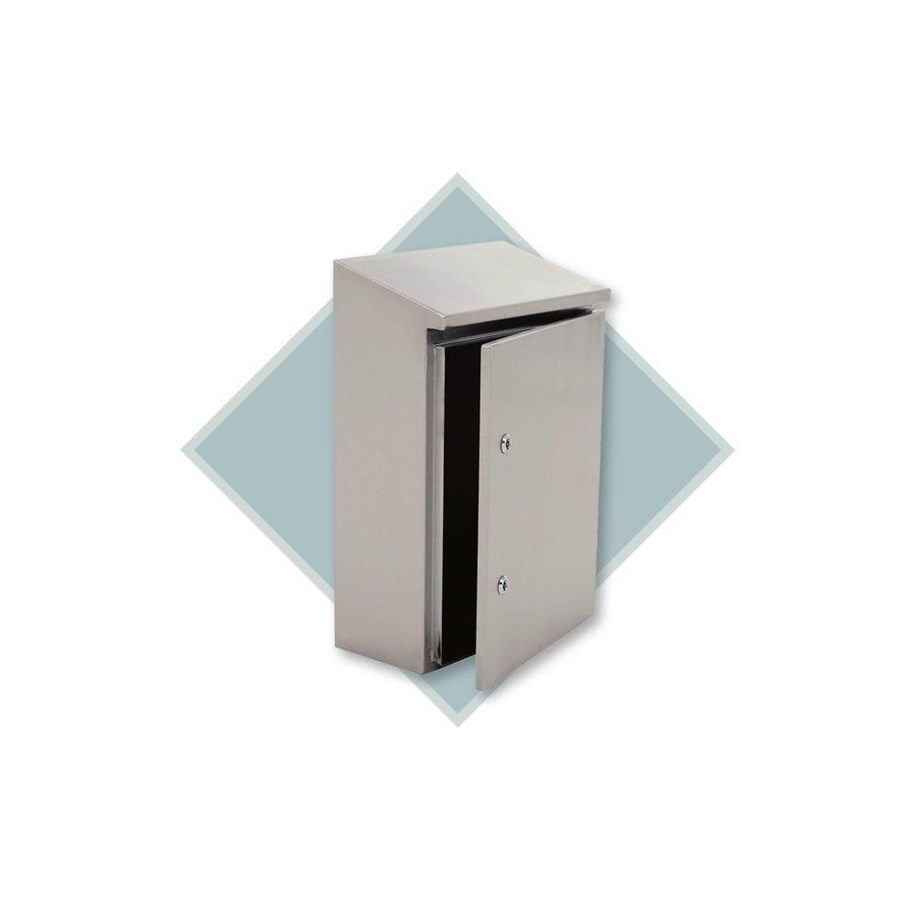

Wall cabinet 400x300x155 AFS04031 Product description: Description: RFt cabinet 400x300x155 Material: AISI 304 stainless steel. AISI 316L on request. Cabinet: 1.5 mm, Door: 2.0 mm on AFS10083 and larger. Mounting plate: 2.0 mm galvanized steel.Cabinet:The top of the cabinet is equipped with a sloping roof with an angle between 8 and20 degrees, which slopes towards the front of the cabinet with a10mm overhang.Bent and nail-welded edge.Door:The door is shaped in one piece130° opening.Hidden hinges removable hinge pin.Can be mounted for left or right opening.Foamed polyurethane packing in one piece.The door interior is equipped with4 welded threaded rods for mounting accessory profiles.Locking mechanism:Chrome-plated3mm DIN lockwith90° movement.Stainless steel locks and other locks are available upon request.Mounting plate:Fitted to M8 screws welded to the back wall of the cabinet.In cabinets with a height of800mmand above, themounting plate hasa bendon all four sidesfor extra stability.When using AMG accessories,the mountingplate can be adjusted indpeth.Cable entry:HACCP flange openings are not standard.Rating :In accordancewithIP66andNEMA4X,12,13.IK10.Surface treatment:Sanded240s(average0.5micron),(Other classes on request).Delivery includes :Mounting plate complete with mounting accessories.Additional information :Temperature regulationandventilation shouldbe usedfor demandingandoutdoor applications.Please see our sectionon generalaccessoriesas well as the technical chapter for further information.Technical specifications :Color :Stainless SteelWidth :300Height :400Depth :155
