Varunummer: 2745899

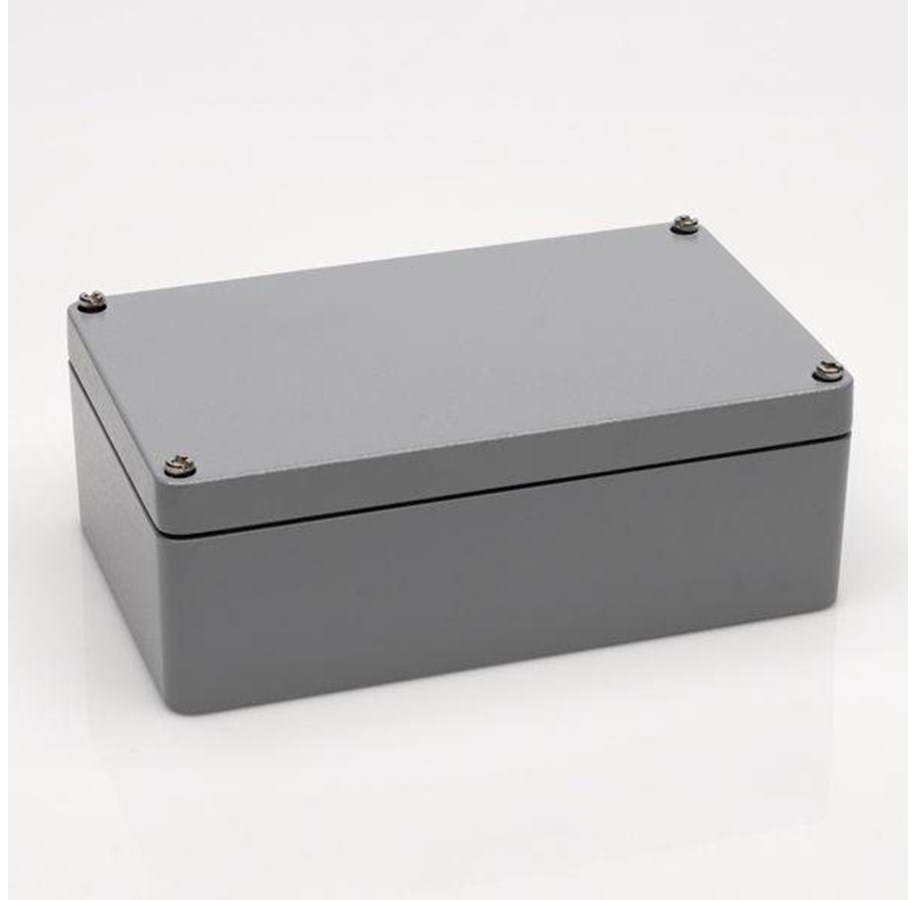

Bernstein Enclosure cp-300 polyester 260x160x91
CP polyester enclosures are produced from highgrade glass fibre-reinforced polyester. Polyester enclosures are therefore particularly suitable for accepting and encapsulating electrical and electronic components.All enclosures achieve protection class IP 66 in accordance with DIN EN 60529 (optionally IP 67).
1 095,00 kr
876,00 kr exkl. moms
Gratis frakt
Leverantör, 2-3 vardagar leveranstid
CP-300 polyester enclosure 260X160X91 Product description: Fiberglass reinforced polyester enclosures for encapsulating electrical, electronic and pneumatic components. The enclosures are extremely impact-resistant and chemical resistant. They are equipped with mounting points for DIN rail, printed circuit boards or mounting plates. All types can be supplied on request with silicone gaskets for higher temperature range (-60OC to +130OC). All types can be supplied on request in RAL9005 (black). The enclosures can be supplied on request with ATEX-U approval. Germanischer Lloyd approved. Degree of protection: IP66. IP67 on request Color: RAL7000 (gray) Temperature range: -30 GrC to +80 GrC Lid screws: Stainless steel Gasket material: Neoprene or PUR Material: Fiberglass reinforced polyester Can be supplied on request with UL label Flammability UL94 : V0 Technical specifications : Protection class (IP): IP66 External dimensions (LxWxH) (mm): 260x160x91 Construction : Polyester
