Varunummer: 2745901

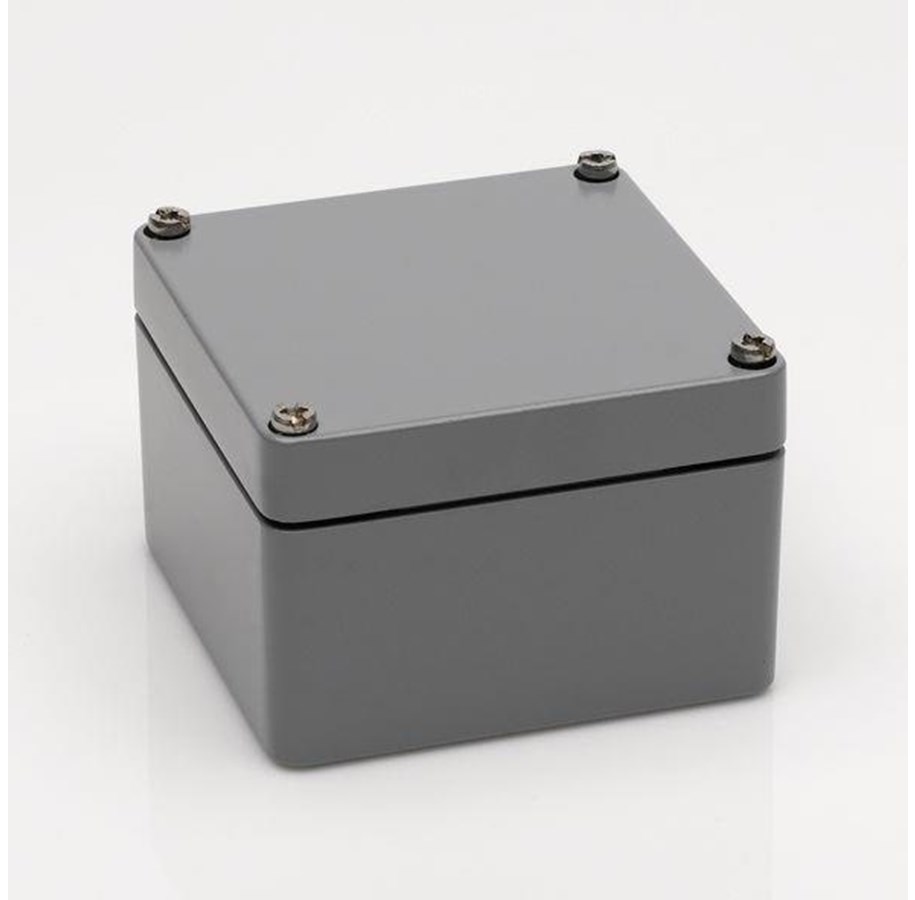

Bernstein Enclosure cp-220 polyester 122x120x90
CP polyester enclosures are produced from highgrade glass fibre-reinforced polyester. Polyester enclosures are therefore particularly suitable for accepting and encapsulating electrical and electronic components.All enclosures achieve protection class IP 66 in accordance with DIN EN 60529 (optionally IP 67).
763,00 kr
610,40 kr exkl. moms
Billigaste frakt: 59,00 kr
Leverantör, 2-3 vardagar leveranstid
CP-220 polyester enclosure 122X120X90 Product description: Fiberglass reinforced polyester enclosures for encapsulating electrical, electronic and pneumatic components. The enclosures are extremely impact-resistant and chemical-resistant. They are equipped with mounting points for DIN rail, printed circuit boards or mounting plates. All types can be supplied on request with silicone gaskets for higher temperature range (-60OC to +130OC). All types can be supplied on request in RAL9005 (black). The enclosures can be supplied on request with ATEX-U approval. Germanischer Lloyd approved. Degree of protection: IP66. IP67 on request Color: RAL7000 (gray) Temperature range: -30 GrC to +80 GrC Lid screws: Stainless steel Gasket material: Neoprene or PUR Material: Fiberglass reinforced polyester Can be supplied on request with UL label Flammability UL94 : V0 Technical specifications : Protection class (IP): IP66 External dimensions (LxWxH) (mm): 122x120x90 Construction : Polyester
