Varunummer: 2434575

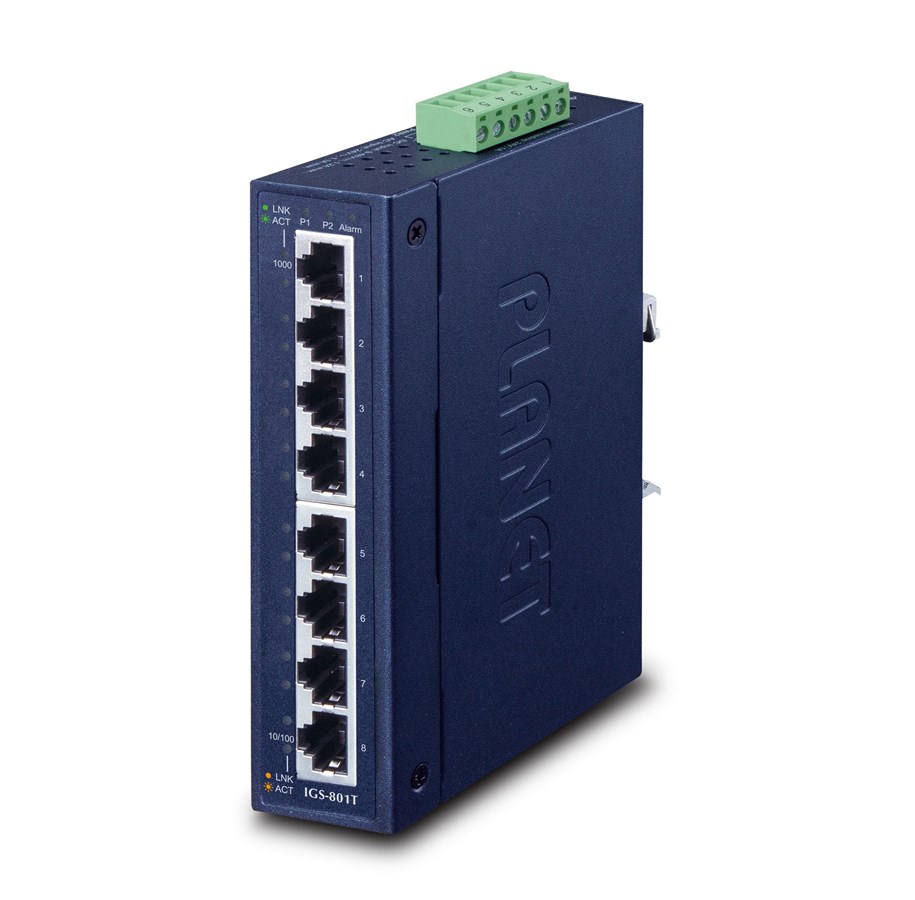

PLANET IGS-801T - switch - 8 portar - DIN-skenm
Switch, 8 x 10/100/1000, DIN-skenmonterbar
1 793,00 kr
1 434,40 kr exkl. moms
Gratis frakt
Leverantör, 3-4 vardagar leveranstid
The compact, IP-30 standard metal case IGS-801T allows either DIN rail or wall mounting for efficient use of cabinet space. The IGS-801T equips with 8 10/100/1000Mbps auto negotiation ports and operates reliably in heavy industrial demanding environments.
The IGS-801T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. The IGS-801T can be placed in almost any difficult environment. The IGS-801T also possesses an integrated power supply source with wide range of voltages for worldwide high availability applications requiring dual or backup power inputs.
The IGS-801T offers high performance switch architecture. With the 8 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput and the 8K MAC address table, the IGS-801T can perform wire-speed packets transfer without risk of packet loss.
The IGS-801T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. The IGS-801T can be placed in almost any difficult environment. The IGS-801T also possesses an integrated power supply source with wide range of voltages for worldwide high availability applications requiring dual or backup power inputs.
The IGS-801T offers high performance switch architecture. With the 8 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput and the 8K MAC address table, the IGS-801T can perform wire-speed packets transfer without risk of packet loss.
Producent
Varunummer
2434575
Modell
IGS-801T
EAN
4711213687792
Till producentens hemsida
Produktbeskrivning
PLANET IGS-801T - switch - 8 portar
Typ av enhet
Switch - 8 portar
Undertyp
Gigabit Ethernet
Portar
8 x 10/100/1000
MAC Address Table Size
8K poster
Funktioner
Auto-uplink (auto MDI/MDI-X), lagra och vidarebefordra, Broadcast Storm Control, Jumbo Frames-support
Standarder som följs
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Dimensioner (BxDxH)
13.5 cm x 8.7 cm x 3.2 cm
Vikt
473 g
Allmänt
Typ av enhet
Switch - 8 portar
Modell
DIN-skenmonterbar
Undertyp
Gigabit Ethernet
Portar
8 x 10/100/1000
MAC Address Table Size
8K poster
Funktioner
Auto-uplink (auto MDI/MDI-X), lagra och vidarebefordra, Broadcast Storm Control, Jumbo Frames-support
Standarder som följs
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Expansion/Anslutning
Gränssnitt
8 x 1000Base-T RJ-45
Diverse
Standarder som följs
UL, cUL, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15 A, IEC 60529 IP30
Dimensioner och vikt
Bredd
13.5 cm
Djup
8.7 cm
Höjd
3.2 cm
Vikt
473 g
Miljöparametrar
Min temperatur vid drift
-40 °C
Max temperatur vid drift
75 °C
Luftfuktighet vid drift
5 - 90%
Min temperatur vid förvaring
-40 °C
Max temperatur vid förvaring
75 °C
Luftfuktighet vid lagring
5 - 90 % (icke-kondenserande)
