Varunummer: 2522288

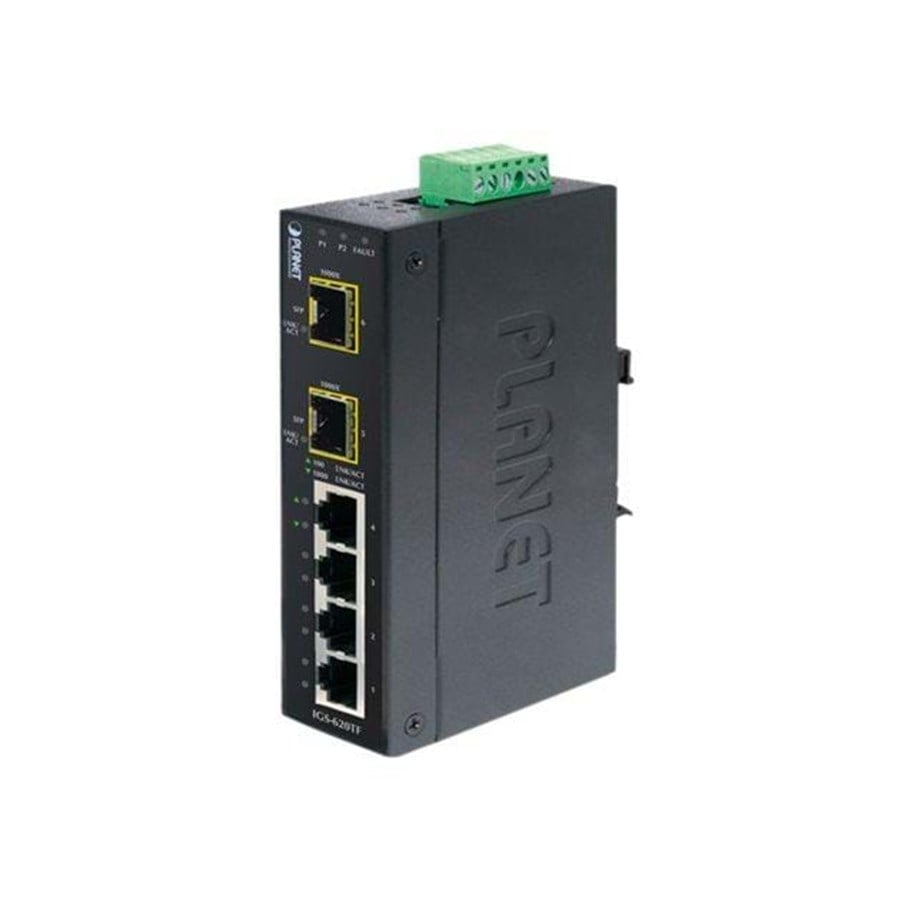

PLANET IGS-620TF
Switch, ohanterad, 4 x 10/100/1000 + 2 x Gigabit SFP, DIN-skenmonterbar, Likström
2 193,00 kr
1 754,40 kr exkl. moms
Gratis frakt
Beställningsvara, 4-5 vardagar leveranstid
The two SFP slots allow to change the operation mode with its built-in DIP switch. Via the built-in DIP switch, the IGS-620TF can be configured as 6-port Ethernet switch or 4+2 fiber redundant mode. With the 6-port switch mode, the IGS-620TF can operate in Store-and-Forward mechanism with high performance; on the other hand, when in the 4+2 fiber redundant mode, it provides rapid fiber redundancy of link for highly critical Ethernet applications. The redundant mode also supports auto-recovering function. If the destination port of a packet is link-down, it will forward the packet to the other port of the backup pair.The IGS-620TF is equipped with the slim-type IP30 metal case for easy deployment in heavy Industrial demanding environments. With IP30 industrial case protection, the IGS-620TF provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperat
Producent
Varunummer
2522288
Modell
IGS-620TF
EAN
4711213689536
Till producentens hemsida
Produktbeskrivning
PLANET IGS-620TF - switch - 6 portar - ohanterad
Typ av enhet
Switch - 6 portar - ohanterad
Undertyp
Gigabit Ethernet
Portar
4 x 10/100/1000 + 2 x Gigabit SFP
Prestanda
Omkopplingsbar fabriksbandbredd: 12 Gbps
Genomströmning (64 byte paketstorlek): 8,93 Mpps
Genomströmning (64 byte paketstorlek): 8,93 Mpps
MAC Address Table Size
1K poster
Jumbo Frame-support
9KB
Funktioner
Auto-uplink (auto MDI/MDI-X), auto-negotiation, lagra och vidarebefordra, monterbar på vägg, 6KV ESD Protector, flödeskontroll
Standarder som följs
IEEE 802.3x, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Strömtillförsel
Likström 12 - 48 V
Dimensioner (BxDxH)
13.5 cm x 8.7 cm x 3.2 cm
Vikt
503 g
Allmänt
Typ av enhet
Switch - 6 portar - ohanterad
Modell
DIN-skenmonterbar
Undertyp
Gigabit Ethernet
Portar
4 x 10/100/1000 + 2 x Gigabit SFP
Prestanda
Omkopplingsbar fabriksbandbredd: 12 Gbps
Genomströmning (64 byte paketstorlek): 8,93 Mpps
Genomströmning (64 byte paketstorlek): 8,93 Mpps
MAC Address Table Size
1K poster
Jumbo Frame-support
9KB
Funktioner
Auto-uplink (auto MDI/MDI-X), auto-negotiation, lagra och vidarebefordra, monterbar på vägg, 6KV ESD Protector, flödeskontroll
Standarder som följs
IEEE 802.3x, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Statusindikatorer
Strömförsörjning, portstatus, länk/akvititet
Expansion/Anslutning
Gränssnitt
4 x 1000Base-T RJ-45
2 x 1000Base-X SFP
2 x 1000Base-X SFP
Strömtillförsel
Nätspänning
Likström 12 - 48 V
Energiförbrukning vid drift
7.2 Watt
Egenskaper
RPS-kontakt
Diverse
Standarder som följs
IP30, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15 A
Dimensioner och vikt
Bredd
13.5 cm
Djup
8.7 cm
Höjd
3.2 cm
Vikt
503 g
Miljöparametrar
Min temperatur vid drift
-40 °C
Max temperatur vid drift
75 °C
Luftfuktighet vid drift
5 - 95 % (icke-kondenserande)
Min temperatur vid förvaring
-40 °C
Max temperatur vid förvaring
75 °C
Luftfuktighet vid lagring
5 - 95 % (icke-kondenserande)
Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
