Varunummer: 3064703

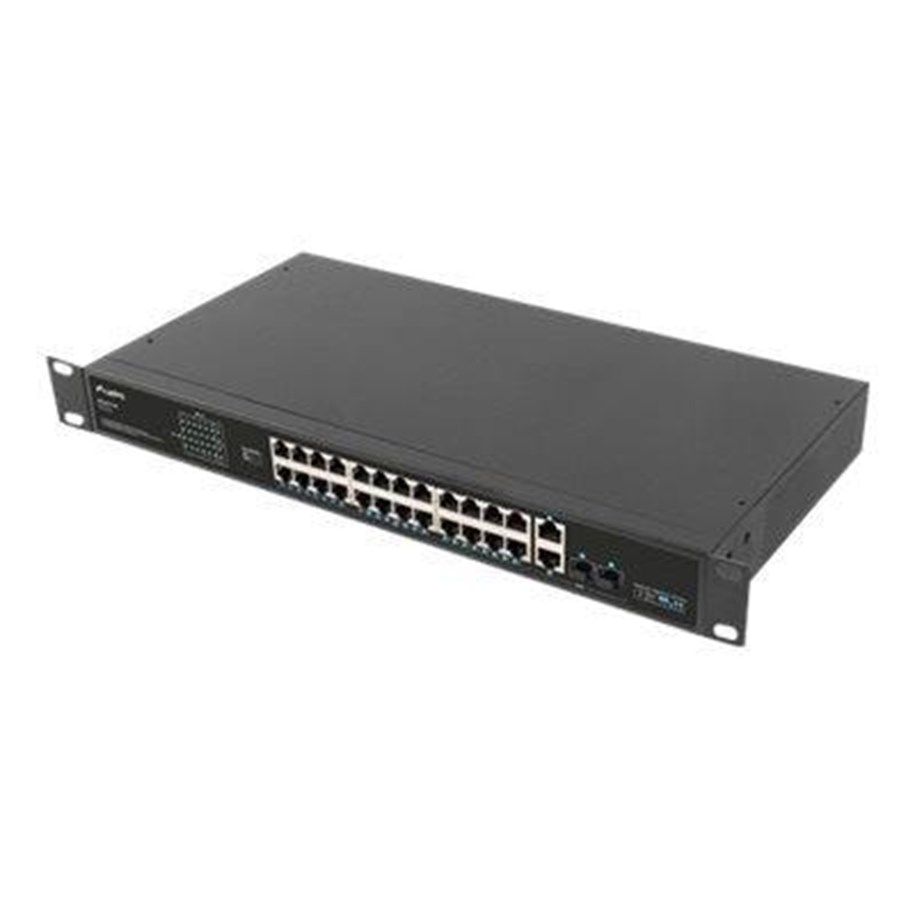

Lanberg RSFE-24P-2C-360 - switch - 24 ports - unmanaged - rack-mountable

Switch, ohanterad, 24 x 10/100 (PoE+) + 2 x gigabit SFP (upplänk) + 2 x 1000Base-LX/SX, rackmonterbar, PoE+ (360 W)

1 990,00 kr 1 592,00 kr exkl. moms
Gratis frakt
Leverantör, 3-4 vardagar leveranstid

The PoE+ switch is an essential active networking device in any Ethernet infrastructure using power transmission through the structural cabling. RSFE-24P-2C-360 is dedicated to all kinds of installations: home, business, low-voltage, surveillance, IP, VoIP, cable TV networks, and in a particular product can be used in alarm, fire, or access control system.Apart from the switch's primary function, i.e., supporting Ethernet frame transfer between ports, the device also provides a power supply for each appliance in PoE/PoE+ standard - 802.3af and at. This means that the switch can supply the devices with a total of up to 360 W. All of this is combined with data transmission at the same time.As a result, such a solution saves resources, space, and time to install a separate electrical and network infrastructure. This is especially important if the network is dispersed and its end-devices do not have direct access to the power source, in particular, when they are mounted outside.

Producent
Varunummer
3064703
Modell
RSFE-24P-2C-360
EAN
5901969429329
Till producentens hemsida
Produktbeskrivning
Lanberg RSFE-24P-2C-360 - switch - 24 portar - ohanterad - rackmonterbar
Typ av enhet
Switch - 24 portar - ohanterad
Modell
Rackmonterbar 1U
Undertyp
Fast Ethernet
Portar
24 x 10/100 (PoE+) + 2 x gigabit SFP (upplänk) + 2 x 1000Base-LX/SX
PoE (Power Over Ethernet)
PoE+
PoE-budget
360 W
Prestanda
Switchningsbandbredd: 8,8 Gbps
MAC Address Table Size
16K poster
Funktioner
Metallhölje, 4MBit paketbuffert, fläktlös, VLAN-stöd, 6KV ESD Protector
Standarder som följs
IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
Strömtillförsel
AC 100-240 V
Dimensioner (BxDxH)
44 cm x 20.7 cm x 4.4 cm
Vikt
2.45 kg

Allmänt

Typ av enhet
Switch - 24 portar - ohanterad
Modell
Rackmonterbar 1U
Undertyp
Fast Ethernet
Portar
24 x 10/100 (PoE+) + 2 x gigabit SFP (upplänk) + 2 x 1000Base-LX/SX
PoE (Power Over Ethernet)
PoE+
PoE-budget
360 W
Prestanda
Switchningsbandbredd: 8,8 Gbps
MAC Address Table Size
16K poster
Funktioner
Metallhölje, 4MBit paketbuffert, fläktlös, VLAN-stöd, 6KV ESD Protector
Standarder som följs
IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
Statusindikatorer
Status

Expansion/Anslutning

Gränssnitt
24 x Fast Ethernet RJ-45 PoE+ - 30 W
2 x 100/1000 SFP
2 x 1000Base-LX/SX

Strömtillförsel

Nätdel
Intern strömförsörjning
Nätspänning
AC 100-240 V
Energiförbrukning vid drift
370 watt

Diverse

Rackmonteringssats
Inkluderat
Standarder som följs
IP20

Dimensioner och vikt

Bredd
44 cm
Djup
20.7 cm
Höjd
4.4 cm
Vikt
2.45 kg

Miljöparametrar

Min temperatur vid drift
5 °C
Max temperatur vid drift
55 °C
Luftfuktighet vid drift
0 - 80%

Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
