Varunummer: 3064712

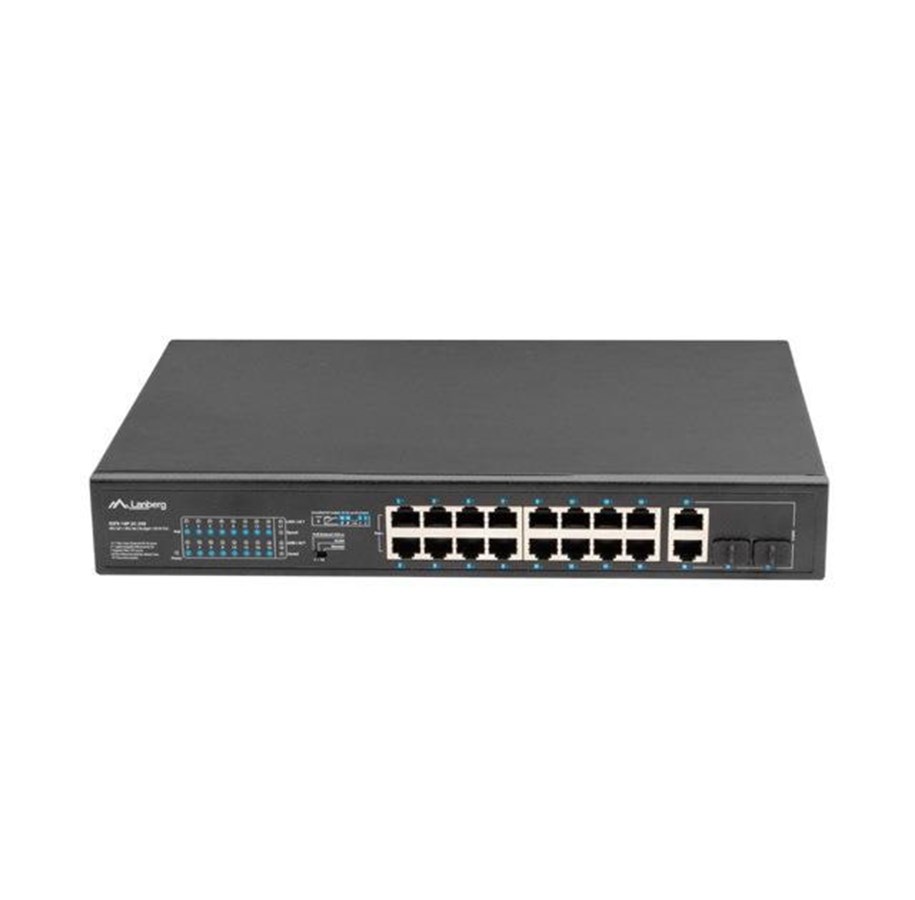

Lanberg RSFE-16P-2C-250 - switch - 16 ports - unmanaged - rack-mountable
Switch, ohanterad, 16 x 10/100 (PoE+) + 2 x combo Gigabit SFP/RJ-45 (upplänk), rackmonterbar, PoE+ (250 W)
1 194,00 kr
955,20 kr exkl. moms
Gratis frakt
Beställningsvara, 9-10 vardagar leveranstid
PoE+ switch is an indispensable active device in any network structure, using power transmission through structured cabling. RSFE-16P-2C-250 is dedicated to all installations: home, business, low-current, monitoring, IP, VoIP, cable TV networks, and in particular will find use in alarm, fire and access control infrastructure.
In addition to the primary function of the switch, i.e. handling Ethernet frame traffic between ports, it additionally provides power to each device in PoE/PoE+ - 802.3af and at standards. This makes it possible to provide up to 250 watts of total power to devices. And all this together with simultaneous data transmission to them.
This saves resources, space and the time it would take to install a separate electrical and network installation. This is especially important if the network is dispersed and its end devices do not have access to a power source, even more so if they are mounted outdoors.
In addition to the primary function of the switch, i.e. handling Ethernet frame traffic between ports, it additionally provides power to each device in PoE/PoE+ - 802.3af and at standards. This makes it possible to provide up to 250 watts of total power to devices. And all this together with simultaneous data transmission to them.
This saves resources, space and the time it would take to install a separate electrical and network installation. This is especially important if the network is dispersed and its end devices do not have access to a power source, even more so if they are mounted outdoors.
Producent
Varunummer
3064712
Modell
RSFE-16P-2C-250
EAN
5901969429305
Till producentens hemsida
Produktbeskrivning
Lanberg RSFE-16P-2C-250 - switch - 16 portar - ohanterad - rackmonterbar
Typ av enhet
Switch - 16 portar - ohanterad
Modell
Rackmonterbar 1U
Undertyp
Fast Ethernet
Portar
16 x 10/100 (PoE+) + 2 x combo Gigabit SFP/RJ-45 (upplänk)
PoE (Power Over Ethernet)
PoE+
PoE-budget
250 W
Prestanda
Switchningsbandbredd: 7.2 Gbps
MAC Address Table Size
16K poster
Funktioner
Metallhölje, 4MBit paketbuffert, 6KV ESD Protector
Standarder som följs
IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
Strömtillförsel
AC 100-240 V
Dimensioner (BxDxH)
32 cm x 20.8 cm x 4.5 cm
Vikt
1.9 kg
Allmänt
Typ av enhet
Switch - 16 portar - ohanterad
Modell
Rackmonterbar 1U
Undertyp
Fast Ethernet
Portar
16 x 10/100 (PoE+) + 2 x combo Gigabit SFP/RJ-45 (upplänk)
PoE (Power Over Ethernet)
PoE+
PoE-budget
250 W
Prestanda
Switchningsbandbredd: 7.2 Gbps
MAC Address Table Size
16K poster
Funktioner
Metallhölje, 4MBit paketbuffert, 6KV ESD Protector
Standarder som följs
IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
Expansion/Anslutning
Gränssnitt
16 x Fast Ethernet RJ-45 PoE+ - 30 W
2 x 100/1000 RJ-45/SFP
2 x 100/1000 RJ-45/SFP
Strömtillförsel
Nätdel
Intern strömförsörjning
Nätspänning
AC 100-240 V
Energiförbrukning vid drift
250 watt
Diverse
Rackmonteringssats
Inkluderat
Standarder som följs
IP20
Dimensioner och vikt
Bredd
32 cm
Djup
20.8 cm
Höjd
4.5 cm
Vikt
1.9 kg
Miljöparametrar
Min temperatur vid drift
5 °C
Max temperatur vid drift
55 °C
Luftfuktighet vid drift
0 - 80%
