Varunummer: 2864956

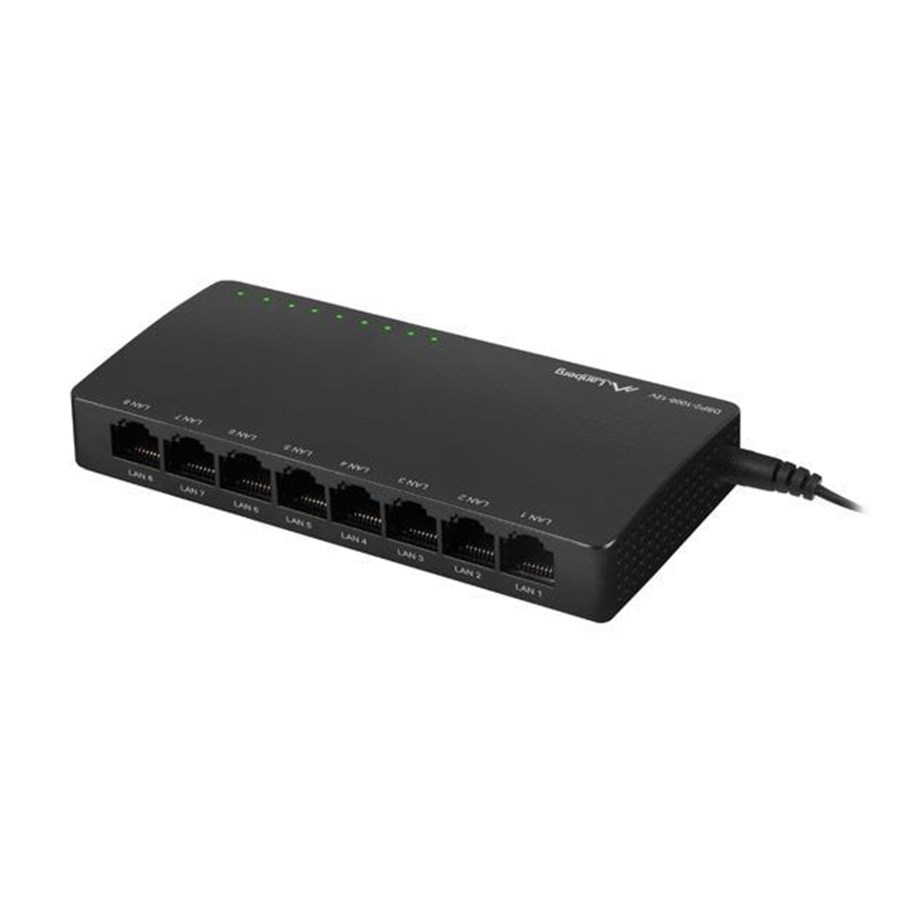

Lanberg DSP2-1008-12V 8-Port Gigabit Ethernet Unmanaged Switch

Switch, ohanterad, 8 x 10/100/1000, skrivbordsmodell, väggmonterbar, Växelström 100, 240 V

I lager
248,00 kr 198,40 kr exkl. moms
Billigaste frakt: 59,00 kr
1 st. I lager, 1-2 vardagars förväntad leveranstid

Lanberg DSP2-1008 is a compact, unmanaged desktop switch equipped with eight Gigabit Ethernet RJ-45 ports. The device itself is small and handy with Plug-and-Play operation principles. Product provides switching functions for eight 10/100/1000 Mbps RJ-45 ports with automatic connection negotiation and MDI/MDI-X support.

The distinctive feature of the DSP2 series switches is the use of universal 12V power supply, used in many other IP and CCTV surveillance, alarm, security, and IT devices. With this solution, the end-users, ISPs, or installers are not forced to use the default power supply, thus the greater freedom in regards to delivering the power to the switch using this voltage.

The switch is an ideal solution for domestic use due to its modest size and silent passive cooling. Moreover, the device is suitable for office applications, including SOHO and SMB. The Lanberg switch boasts adequate performance, meeting the requirements established by users in the switch segment.

Automatic recognition and adaptation to the type of connected network cable (solid or strand) feature eliminates the requirement to use only one type of Ethernet cabling, as well as a need for uplink ports, allowing simultaneous reduction of unnecessary costs. The flow control feature allows data flow management, thus avoiding any data transmission blocks on the port when one of the receiving devices is unable to receive enough data.

Producent
Varunummer
2864956
Modell
DSP2-1008-12V
EAN
5901969424171
Till producentens hemsida
Produktbeskrivning
Lanberg DSP2-1008-12V - switch - 8 portar - ohanterad
Typ av enhet
Switch - 8 portar - ohanterad
Undertyp
Gigabit Ethernet
Portar
8 x 10/100/1000
Prestanda
Switchningsbandbredd: 16 Gbps
MAC Address Table Size
4K poster
Funktioner
Flödeskontroll, auto-negotiation, auto-uplink (auto MDI/MDI-X), lagra och vidarebefordra, halvduplexläge, fullt duplexläge, monterbar på vägg, plasthölje, Back Pressure Support, stöd för passiv PoE, MAC-adressinlärning, MAC-adressålder
Standarder som följs
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3x
Strömtillförsel
Växelström 100 - 240 V (50/60 Hz)
Dimensioner (BxDxH)
13.7 cm x 8.9 cm x 2.8 cm
Vikt
240 g

Allmänt

Typ av enhet
Switch - 8 portar - ohanterad
Modell
Skrivbordsmodell, väggmonterbar
Undertyp
Gigabit Ethernet
Portar
8 x 10/100/1000
Prestanda
Switchningsbandbredd: 16 Gbps
MAC Address Table Size
4K poster
Funktioner
Flödeskontroll, auto-negotiation, auto-uplink (auto MDI/MDI-X), lagra och vidarebefordra, halvduplexläge, fullt duplexläge, monterbar på vägg, plasthölje, Back Pressure Support, stöd för passiv PoE, MAC-adressinlärning, MAC-adressålder
Standarder som följs
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3x
Processor
1 x Realtek Semiconductor RTL8370N-VB
Statusindikatorer
Strömförsörjning, länk/akvititet

Expansion/Anslutning

Gränssnitt
8 x 1000Base-T RJ-45

Strömtillförsel

Nätdel
Extern strömadapter
Effekt
12 V - 0.5 A
Nätspänning
Växelström 100 - 240 V (50/60 Hz)
Energiförbrukning vid drift
4.53 watt

Diverse

Standarder som följs
Plug and Play, RoHS, WEEE

Dimensioner och vikt

Bredd
13.7 cm
Djup
8.9 cm
Höjd
2.8 cm
Vikt
240 g

Miljöparametrar

Min temperatur vid drift
0 °C
Max temperatur vid drift
40 °C
Luftfuktighet vid drift
0 - 85%

Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
