Varunummer: 3448578

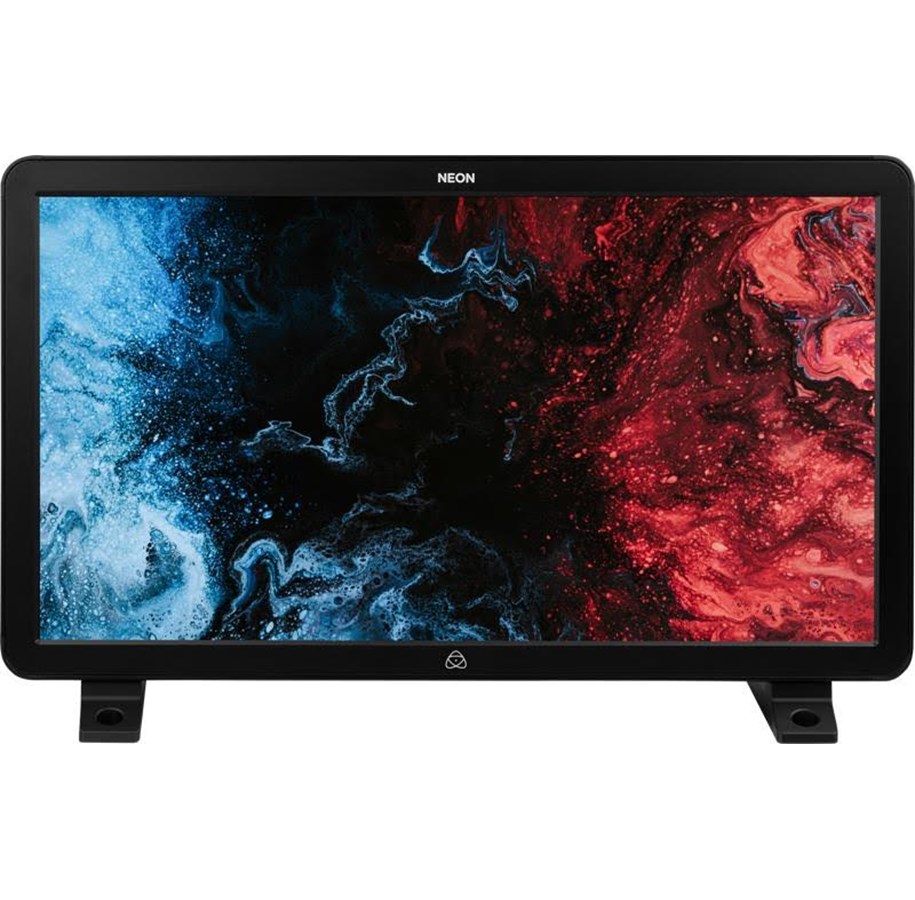

Atomos Neon 24
Produktionsmonitor kombinerar en exakt 24" 17:9 4K DCI HDR-skärm med inbyggd inspelning och uppspelning, samt flexibel HDMI 2.0- och 12G SDI-anslutning.
Atomos Neon 24 är utformad för monitoring på inspelningsplats och i studio med 10-bitars panelprecision, full array local dimming för djupa 0-nit-svarta nivåer och 1000-nit HDR-ljusstyrka över hela skärmen, stödd av AtomHDR-bearbetning för konsekvent hantering av gamma och färgomfång i SDR- och HDR-arbetsflöden.
- 24" 17:9 4K DCI-skärm med 100% DCI-P3-täckning och 1,000,000:1 dynamisk kontrast
- Valbara SDR/HDR-lägen inklusive Rec.709, Rec.2100 HLG och ST.2084 PQ
- AtomHDR-skärmpipeline med LOG-till-HDR-konverteringar och 3D LUT-stöd (upp till 8 lagrade internt)
- Stöder upp till 4K60p via HDMI 2.0 eller 12G SDI med 10-bitars signalloop-utgångar
- Waveform-monitorer, vectorscope, pixelzoom, fokushjälp (focus peaking), zebra, falsk färg och audio PPM-mätning
- Spelar in 10-bit 4:2:2 i Apple ProRes eller Avid DNx med rik metadata
- Bildramsguider och stöd för anamorfisk de-squeeze (2x, 1.5x, 1.33x)
- AtomRemote OS-styrning via Bluetooth från iOS-enheter (iOS-enhet krävs)
Byggd för trygg HDR-monitoring och effektiv granskning hjälper NEON 24 till att hålla färg, exponering och fokus konsekventa från inspelning till leverans.
60 386,00 kr
48 308,80 kr exkl. moms
Billigaste frakt: 20,00 kr
Leverantör, 4-5 vardagar leveranstid
Exceptional HDR Performance
NEON 24 features:
4K DCI resolution (4096 × 2160)
True 10-bit panel
Full array local dimming backlight
0-nit blacks
1000 nits full-screen brightness
Accurate DCI-P3 coverage with wide gamma
It achieves a dynamic contrast ratio of 1,000,000:1, revealing detail in both shadows and highlights so your production truly stands out.
Advanced Color Management Pipeline
The AtomHDR engine ensures precise handling of input signals and display gamma/gamut.
Selectable display modes allow operation in SDR or HDR to match camera capture settings or delivery standards, including:
Rec.709
Rec.2100 HLG
ST.2084 PQ
NEON 24 delivers native accurate color with DCI-P3 coverage. Wider gamuts such as BT.2020 are accurately processed by the AtomHDR engine for consistent representation.
Built-in transformations allow:
LOG to HDR conversion
3D LUT application for SDR workflows
Monitoring with creative looks or exposure compensation
Downstream output conversion enables standard conversion for SDR, LUT, or HDR delivery as needed.
Flexible & Upgradeable I/O
The NEON platform is modular, allowing I/O to be serviced, replaced, or upgraded without removing the panel from operation.
Master Control Unit (MCU)
The MCU is the brain of NEON and includes:
HDMI 2.0 input and output
Support for 4096 × 2160 DCI up to 60p
Firmware upgrade capability
Storage for up to 8 × 3D LUTs internally
Support for unlimited LUT storage via 2.5" HDD/SSD
LUT management via AtomOS app on iOS
The MCU also includes an Xpansion port. NEON ships with the AtomX SDI module, providing:
2 × 12G-SDI
Support for single and dual link 1.5G / 3G / 6G
A/B input switching
Up to 4K60p input
As standards evolve, both the MCU and Xpansion modules can be upgraded without replacing the entire monitor.
Analysis & Assist Tools
NEON’s professional toolset enables analysis during monitoring, recording, or playback:
Waveform monitors (Luma Parade, RGB Parade)
Vectorscope with zoom
Pixel zoom with pan and scan
Focus peaking (color, mono, edges only)
Adjustable zebra and false color
Audio PPM meters for all embedded channels
Headphone monitoring of selected stereo pair
Additional 3.5mm audio input on MCU
Control & Remote Operation
Built-in Timecode Systems SYNC technology enables Bluetooth control via Atom Remote OS from iOS devices.
An iOS device is required to operate NEON remotely.
Recording & Playback Modes
Connect cameras or video sources via:
12G-SDI (up to 4K DCI 60p)
Dual 6G
1.5G / 3G SDI
HDMI up to 4K60p (non-HDCP)
HD up to 120fps
Supports up to 12 channels of embedded audio (SDI) and 8 channels via HDMI.
10-bit 4:2:2 recording in:
Apple ProRes
Avid DNx
Files use Scene/Shot/Take naming with rich metadata for NLE or MAM workflows.
Playback is available directly from SSD via the MCU drive slot. Clips from other Atomos devices or exported/transcoded ProRes/DNx files can also be played back.
Frame Guides & Anamorphic De-Squeeze
Includes:
Broadcast frame guides
EBU R5 graphic and action safe areas
Cinematic guides
Anamorphic de-squeeze modes (2x, 1.5x, 1.33x)
Compatible with a wide range of anamorphic lenses.
Key Specifications
24" 17:9 4K DCI display
100% DCI-P3 coverage
1,000,000:1 dynamic contrast ratio
1000 nits HDR with Dynamic Full Array Local Dimming
AtomHDR pipeline (LOG to PQ/HLG with 3D LUT for SDR workflows)
Up to 4K60p via HDMI 2.0 or 12G-SDI with 10-bit loop-outs
Anti-glare coating and ultra-wide viewing angle
HD and 4K processing (HD upscaling to 4K DCI crop or downconversion to HD)
AtomRemote OS Bluetooth control via iOS (iOS device required)
Factory calibrated; compatible with Atomos Calibrator supporting X-Rite i1Display Pro Plus
In the Box
Master Control Unit
Master Caddy II
12V 3A AC power supply
AtomX SDI Expansion Module
NEON 24″ panel
Feet
Quick start guide
Button Bar Remote Control Unit
NEON 24 features:
4K DCI resolution (4096 × 2160)
True 10-bit panel
Full array local dimming backlight
0-nit blacks
1000 nits full-screen brightness
Accurate DCI-P3 coverage with wide gamma
It achieves a dynamic contrast ratio of 1,000,000:1, revealing detail in both shadows and highlights so your production truly stands out.
Advanced Color Management Pipeline
The AtomHDR engine ensures precise handling of input signals and display gamma/gamut.
Selectable display modes allow operation in SDR or HDR to match camera capture settings or delivery standards, including:
Rec.709
Rec.2100 HLG
ST.2084 PQ
NEON 24 delivers native accurate color with DCI-P3 coverage. Wider gamuts such as BT.2020 are accurately processed by the AtomHDR engine for consistent representation.
Built-in transformations allow:
LOG to HDR conversion
3D LUT application for SDR workflows
Monitoring with creative looks or exposure compensation
Downstream output conversion enables standard conversion for SDR, LUT, or HDR delivery as needed.
Flexible & Upgradeable I/O
The NEON platform is modular, allowing I/O to be serviced, replaced, or upgraded without removing the panel from operation.
Master Control Unit (MCU)
The MCU is the brain of NEON and includes:
HDMI 2.0 input and output
Support for 4096 × 2160 DCI up to 60p
Firmware upgrade capability
Storage for up to 8 × 3D LUTs internally
Support for unlimited LUT storage via 2.5" HDD/SSD
LUT management via AtomOS app on iOS
The MCU also includes an Xpansion port. NEON ships with the AtomX SDI module, providing:
2 × 12G-SDI
Support for single and dual link 1.5G / 3G / 6G
A/B input switching
Up to 4K60p input
As standards evolve, both the MCU and Xpansion modules can be upgraded without replacing the entire monitor.
Analysis & Assist Tools
NEON’s professional toolset enables analysis during monitoring, recording, or playback:
Waveform monitors (Luma Parade, RGB Parade)
Vectorscope with zoom
Pixel zoom with pan and scan
Focus peaking (color, mono, edges only)
Adjustable zebra and false color
Audio PPM meters for all embedded channels
Headphone monitoring of selected stereo pair
Additional 3.5mm audio input on MCU
Control & Remote Operation
Built-in Timecode Systems SYNC technology enables Bluetooth control via Atom Remote OS from iOS devices.
An iOS device is required to operate NEON remotely.
Recording & Playback Modes
Connect cameras or video sources via:
12G-SDI (up to 4K DCI 60p)
Dual 6G
1.5G / 3G SDI
HDMI up to 4K60p (non-HDCP)
HD up to 120fps
Supports up to 12 channels of embedded audio (SDI) and 8 channels via HDMI.
10-bit 4:2:2 recording in:
Apple ProRes
Avid DNx
Files use Scene/Shot/Take naming with rich metadata for NLE or MAM workflows.
Playback is available directly from SSD via the MCU drive slot. Clips from other Atomos devices or exported/transcoded ProRes/DNx files can also be played back.
Frame Guides & Anamorphic De-Squeeze
Includes:
Broadcast frame guides
EBU R5 graphic and action safe areas
Cinematic guides
Anamorphic de-squeeze modes (2x, 1.5x, 1.33x)
Compatible with a wide range of anamorphic lenses.
Key Specifications
24" 17:9 4K DCI display
100% DCI-P3 coverage
1,000,000:1 dynamic contrast ratio
1000 nits HDR with Dynamic Full Array Local Dimming
AtomHDR pipeline (LOG to PQ/HLG with 3D LUT for SDR workflows)
Up to 4K60p via HDMI 2.0 or 12G-SDI with 10-bit loop-outs
Anti-glare coating and ultra-wide viewing angle
HD and 4K processing (HD upscaling to 4K DCI crop or downconversion to HD)
AtomRemote OS Bluetooth control via iOS (iOS device required)
Factory calibrated; compatible with Atomos Calibrator supporting X-Rite i1Display Pro Plus
In the Box
Master Control Unit
Master Caddy II
12V 3A AC power supply
AtomX SDI Expansion Module
NEON 24″ panel
Feet
Quick start guide
Button Bar Remote Control Unit
Producent
Varunummer
3448578
Modell
ATOMNEO241
EAN
814164022071
Till producentens hemsida
Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
