Varunummer: 3351657

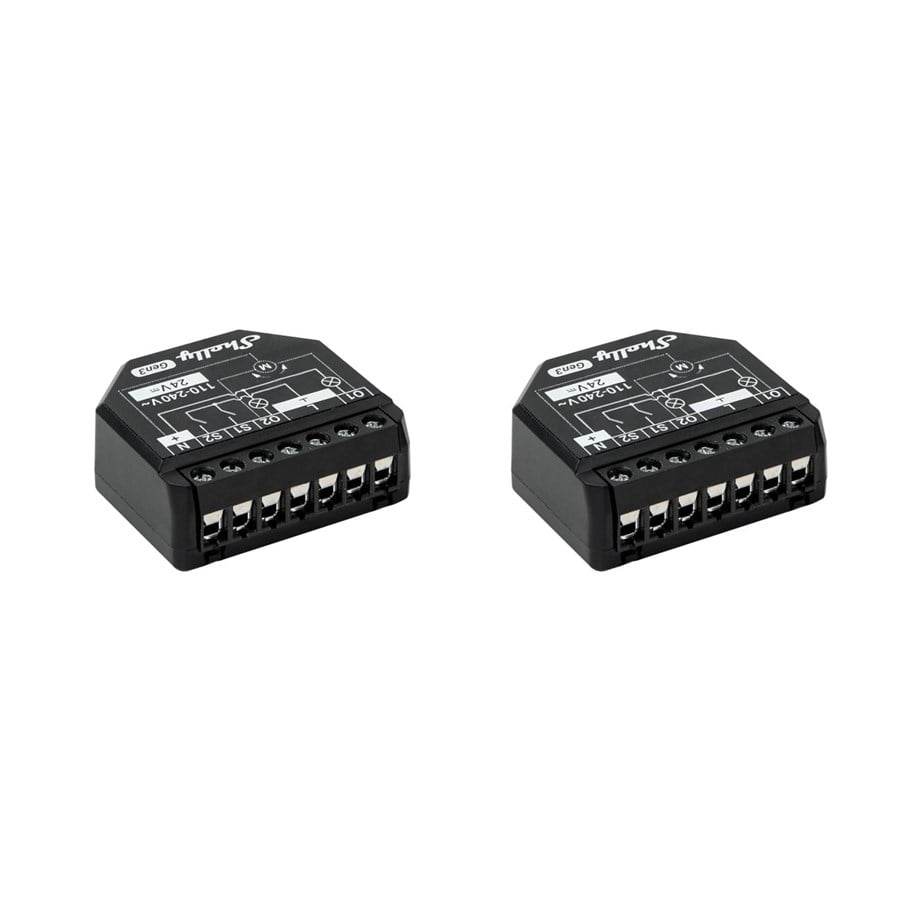

Shelly 2PM Gen3 - 2 pack

Shelly 2PM Gen3 is a WiFi-controlled 2-channel relay, primarily suitable for automating roller shutters, blinds, awnings, and all two-way AC motors. The two integrated power meters allow for measuring the consumption of each channel separately (PM = Power Metering), making the device also ideal for controlling two channels of lights or two sockets. The device can handle up to 10A per channel and a maximum of 16A in total. Shelly Plus 2PM is designed for installation behind the switch, socket, or lamp outlet and fits in most wall and ceiling boxes thanks to its compact design. Shelly 2PM Gen3 is easily set up and controlled through the Shelly Smart Control app or your preferred Smart Home or Smart Building system. Shelly devices work 100% locally and only require a local network to operate. Shelly can be used alone in the Shelly Smart Control app or with more than 200 partner systems such as Google Home, Amazon Alexa, Home Assistant, Samsung SmartThings, Athom Homey, KNX, and many more. Function Shelly 2PM Gen3 has many applications. It can be powered with 24V DC or 110-230V AC. Shelly 2PM has two switch inputs, which are optional to use. The device automatically measures power consumption on each channel, which can be monitored through the Shelly Smart Control app and easily used for automations. Shelly 2PM can be used for many purposes such as: Two-channel light control, Socket control, Control of roller shutters, blinds, awnings, garage doors, and similar. Connection Shelly 2PM Gen3 can connect to the internet or the local network via 2.4 GHz WiFi. Additionally, the device has built-in Bluetooth like the rest of the Pro, Plus, and Gen3 devices, so it can also be used as a gateway for Shelly Bluetooth battery-powered devices. All Shelly devices work locally without connection to Shelly Cloud, but it is recommended to activate it for easy data storage and increased functionality. The devices can also communicate via MQTT, HTTP, and WebSocket. All support TLS. Hardware The device is equipped with generation 3 hardware, which includes the powerful ESP-Shelly-C38F CPU with 8MB flash. This makes Shelly 2PM Gen3 future-proof and allows for scripting functions and virtual devices for advanced and customized functionality.

679,00 kr 543,20 kr exkl. moms
Billigaste frakt: 59,00 kr
Beställd: förväntas i eget lager 2026-11-03

The Shelly 2PM Gen3 from Allterco Robotics is a versatile relay controller designed for integrated systems and automation. With a power measuring function, this device allows for efficient monitoring of energy consumption, making it ideal for smart homes and energy-conscious environments. It features support for scripting, allowing users to customize and automate their control processes, while safety features such as overheat and overvoltage protection ensure reliable operation under varying conditions. Operating efficiently within a wide temperature range from -20°C to 40°C and suitable for 30% to 70% humidity environments, the Shelly 2PM Gen3 is built with durability in mind. Its compatibility with various protocols, including MQTT, HTTPS, and WebSockets, ensures seamless integration with existing smart home systems, enhancing connectivity and control through Bluetooth and Wi-Fi technologies. The device's ability to function in gateway mode adds to its versatility, supporting a wide range of IoT applications.

Producent
Varunummer
3351657
Modell
Shelly_2PM_Gen3_2er
EAN
3800235261910
Kontakta tillverkaren
Produktbeskrivning
Shelly 2PM Gen3 - reläkontroll - 802.11b/g/n, Bluetooth 4.2 - svart (paket om 2)
Produkttyp
Reläkontroll
Förpackad kvantitet
2 (specificationerna gällerenskild post)
Placering/montering
Montering i väggdosa
Funktioner
Strömmätning, persiennstyrning, ljuskontroll, slå på/av elektronik
Strömkälla
Fast
IoT-plattform
Google Home
Intelligent assistent
Google Assistant, Alexa
Anslutning
Trådlös - 802.11b/g/n, Bluetooth 4.2
Frekvensband
2412 - 2472 MHz
Färg
Svart
Dimensioner (BxDxH)
4.2 cm x 1.6 cm x 3.7 cm

Allmänt

Förpackad kvantitet
2 (specificationerna gällerenskild post)
Produkttyp
Reläkontroll
Funktioner
Strömmätning, persiennstyrning, ljuskontroll, slå på/av elektronik
Strömkälla
Fast
Placering/montering
Montering i väggdosa
Anslutningsteknik
Trådlös - Bluetooth 4.2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Max område inomhus
30 m
Max räckvidd på öppen plats
50 m
Frekvensband
2412 - 2472 MHz
Funktioner
Strömövervakning, stöd för skripting, överhettningsskydd, överspänningsskydd, hinderdetektering, 2 kanaler, fjärråtkomst, schemaläggningsfunktion, upp till 20 scheman MQTT-stöd, HTTPS-stöd, WebSockets-stöd, UDP-stöd, TLS-kryptering, gatewayläge, överspänningsskydd, HTTP-stöd, Matter-kompatibel

Internet of Things (IoT)

Kompatibel med Internet of Things (IoT)
Ja
Kompatibelt program
Samsung SmartThings
Plattform
Google Home
Intelligent assistent
Google Assistant, Alexa

Processor

CPU
ESP32 ESP-Shelly C38F
Tillverkare
Espressif Systems

Flash-minne

Installerad storlek
8 MB

Diverse

Produktmaterial
Plast
Färg
Svart
Nätspänning
AC 110-240/ DC 24 V
Nominell ström
16 A
Garanti
3 års garanti
Energiförbrukning vid drift
1.4 watt

Mått och vikt

Bredd
4.2 cm
Djup
1.6 cm
Höjd
3.7 cm
Vikt
30 g

Miljöparametrar

Min temperatur vid drift
-20 °C
Max temperatur vid drift
40 °C
Luftfuktighet vid drift
30 - 70% RH

Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
