Varunummer: 2863650

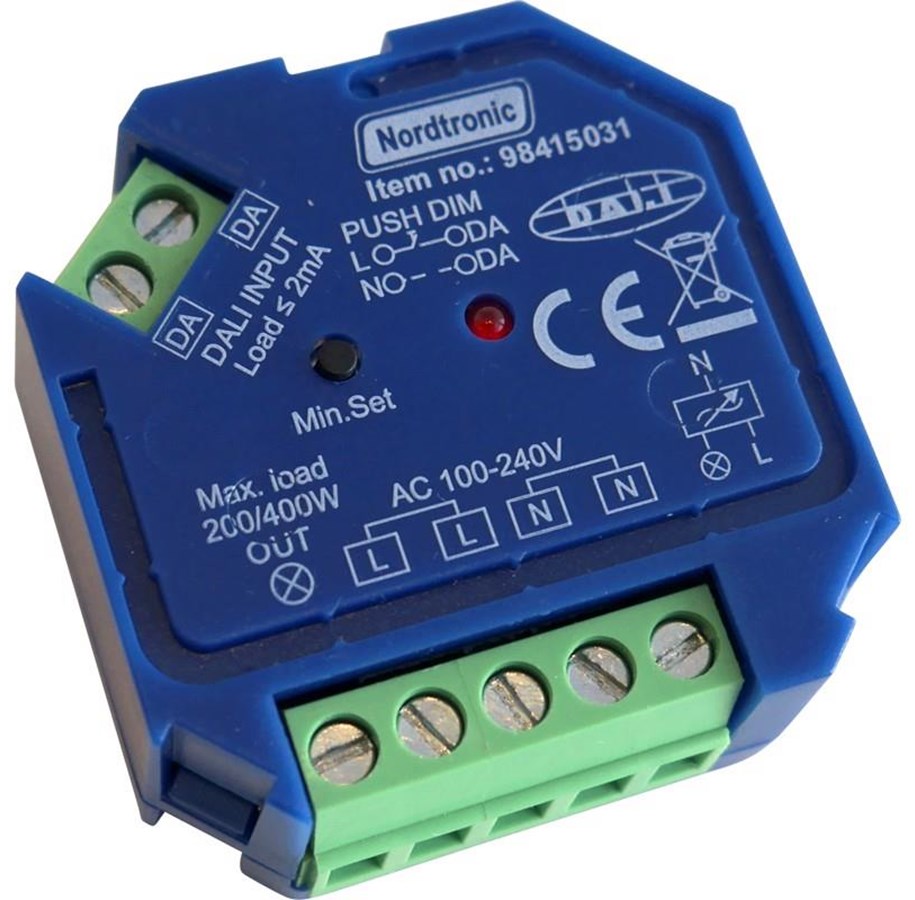

Nordtronic Box dimmer dali

Box Dimmer Dali is a small built-in dimmer for 230V loads that can be controlled via a Dali signal, or push-dimmed with an 8-230V control signal.The product is used to control ordinary dimmable luminaires with a Dali signal.• Dali Trailing edge dimming, 0-200W LED / 0-400W halogen with the option to set the minimum level of attenuation directly on the dimmer.• 1 Dali address to control 1 Channel Output, up to 400W• Input and Output with screw terminals, safe and reliable• Innovative minimum brightness setting function• Can be controlled by universal 8-230V input single wire push-switch• Complies to Dali standards IEC 62386-102, IEC 62386-207• Compatible with universal Dali systems and master controllers on the market• Mini size, easy to be installed into a standard 86 x 86 mm wall box• DO NOT expose the unit to moisture• DO NOT connect the device when the power is on

Läs mer
I lager
492,00 kr 393,60 kr exkl. moms
Billigaste frakt: 59,00 kr
1 st. I lager, 1-2 vardagars förväntad leveranstid

Box Dimmer Dali Product Description: Box Dimmer Dali is a small recessed dimmer for 230V loads that can be controlled via a Dali signal or push-dimmed with an 8-230V control signal. The product is used to control common dimmable fixtures with a Dali signal. It features a Dali trailing-edge dimmer, 0-200W LED / 0-400W halogen, with the ability to set minimum level for direct dimming on the dimmer. It has one Dali address for controlling one channel output up to 400W and allows for daisy-chaining with screw terminals. The memory function enables easy recall of previous settings and it has input options of spring pressure from 8-230V or via Dali protocol. It complies with the IEC standards IEC62386-102 and IEC62386-207, making it compatible with universal systems and master controllers in the market. It fits into standard ceiling boxes (68mm PL) or Eurodose boxes but should not be exposed to moisture nor connected while power is on.Technical Specifications:Width (mm):45Height (mm):20.5Voltage (V AC):100 -240Length(mm):45.5

Producent
Varunummer
2863650
Modell
98415031
EAN
5704629000964
Till producentens hemsida

Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
