Varunummer: 3512866
18" ATEN CL3108NX - KVM console - 18.5"
KVM-konsol, PS/2, USB, USA, engelska (QWERTY), 18.5", kan monteras i rack, 1366 x 768 @ 60 Hz, 250 cd/m², 1000:1, 5 ms, VGA, 1U
15 422,00 kr
12 337,60 kr exkl. moms
Gratis frakt
Beställningsvara, 4-5 vardagar leveranstid

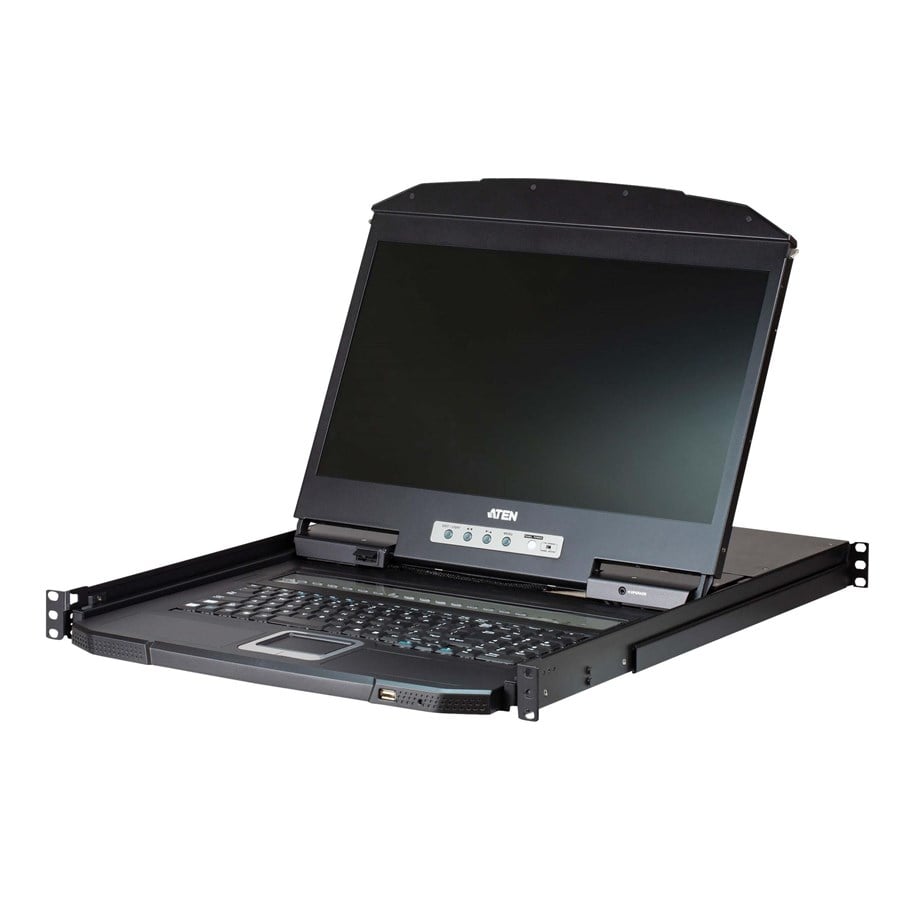

The ATEN CL3108 LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable sliding housing. The short-depth design maximizes space utility for equipping rack-mounting devices in narrow spaces. In addition, its exclusive LED illumination light provides users with proper visibility when working in low-light conditions.The CL3108 can control up to 8 computers; when 8 additional KVM switches are cascaded, a single CL3108 LCD KVM Switch can control up to 128 computers. To achieve greater operational efficiency, the CL3108 offers Broadcast mode, which the console spreads out the commands to all computers to perform operations simultaneously. Besides, the Auto scan mode fulfills the needs for continuous monitoring a specific group of computers, and establishing a reliable working environment for users.To enhance information safety, the CL3108 provides two-level password security which restricts unauthorized users from viewing and controlling the computers. For added convenience, the CL3108 comes with an additional hot-pluggable USB mouse port that only supports HID device for keyboard and mouse.
Producent
Varunummer
3512866
Modell
CL3108NX-ATA-AG
EAN
4719264648977
Till producentens hemsida
Produktbeskrivning
ATEN CL3108NX - KVM-konsol - 18.5"
Typ av enhet
KVM-konsol - 18.5"
KVM-omkopplare
PS/2, USB
Tangentbordslayout
USA - engelska (QWERTY)
Egenskaper
Tangentbord, pekplatta
Ursprunglig upplösning
1366 x 768 vid 60 Hz
Pixelhöjd
0.3 mm
Ljusstyrka
250 cd/m²
Kontrastförhållande
1000:1
Responstid
5 ms
Färgstöd
16,7 miljoner färger
Inmatningsanslutningar
VGA
Spänning
Växelström 100 - 240 V (50 - 60 Hz)
Dimensioner (BxDxH)
63.17 cm x 48.06 cm x 4.28 cm
Höjd (U-format)
1U
Vikt
10.5 kg
Standarder som följs
DDC-2B, RoHS
Allmänt
Typ av bildskärm
KVM-konsol / TFT aktiv matris
Diagonal storlek
18.5"
Ursprunglig upplösning
1366 x 768 vid 60 Hz
Pixelhöjd
0.3 mm
Ljusstyrka
250 cd/m²
Kontrastförhållande
1000:1
Färgstöd
16,7 miljoner färger
Responstid
5 ms
Horisontell visningsvinkel
170
Vertikal visningsvinkel
160
Bakgrundsbelysningsteknik
LED-bakgrundsbelysning
Dimensioner (BxDxH)
63.17 cm x 48.06 cm x 4.28 cm
Höjd (U-format)
1U
Vikt
10.5 kg
Inmatning
Typ
Tangentbord, pekplatta
KVM
Tangentbords-/musgränssnitt
PS/2, USB
Max upplösning
1920 x 1200 @ 60 Hz
Anslutning
Gränssnitt
8 x KVM (SPHD-18)
Diverse
Egenskaper
Fast programvara kan uppdateras, enkel skena
Medföljande kablar
2 x kabel för tangentbord/mus/video - 1.8 m
Rackmonteringssats
Inkluderat
Standarder som följs
DDC-2B, RoHS
Strömtillförsel
Inspänning
Växelström 100 - 240 V (50 - 60 Hz)
Strömförbrukning (typisk)
14.9 watt
Mått och vikt
Mått och vikt (komponenter)
Stomme - bredd: 58.4 cm - djup: 44.92 cm - höjd: 4.28 cm
Miljöparametrar
Min temperatur vid drift
0 °C
Max temperatur vid drift
40 °C
Luftfuktighet vid drift
0 - 80% (icke-kondenserande)
Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
