Varunummer: 2755216

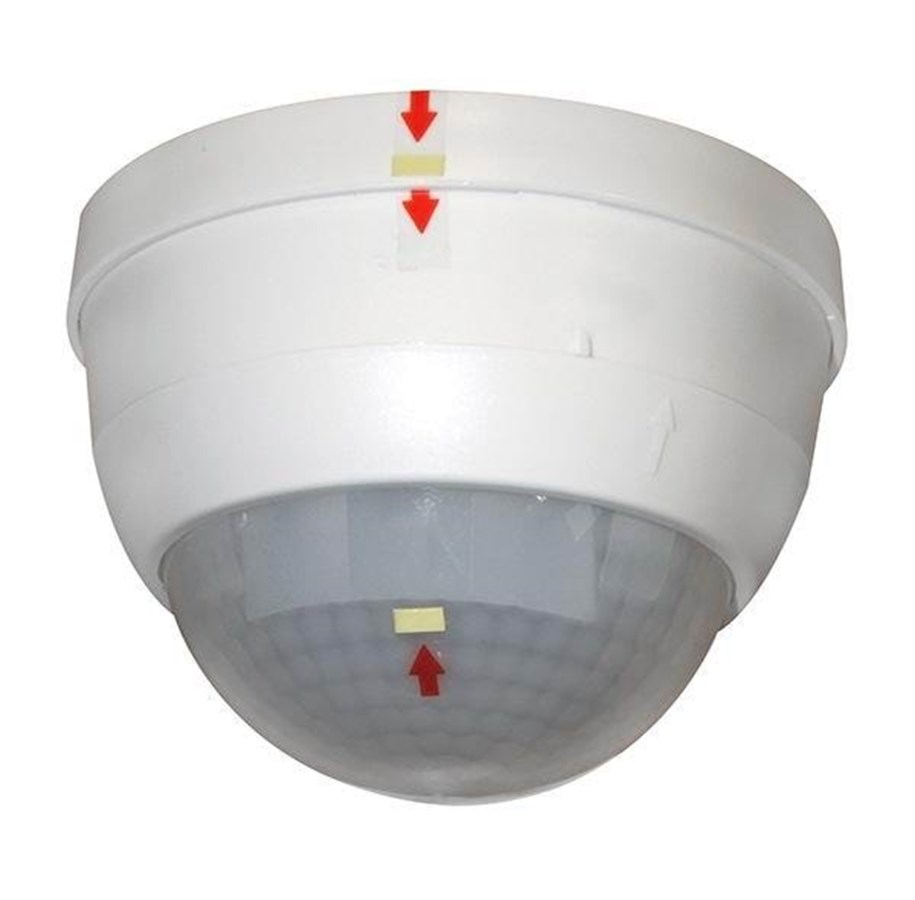

B.E.G. Occupancy detector pd4-m-1c-c-sm

Product: PD4-M-1C-K-P (92587) Presence / motion detector LUXOMAT® PD4-M-1C-K-P for mounting in fixed ceiling or PL canned, with narrow detection range specifically for korridorer. Kraftigt relay for ignition of lamps with high consumption. In particular, an optical system for detecting the slightest movements. Series production impulse function Application examples: monitoring of long corridors etc. Power supply voltage: 230V ~ ± 10%, Detection: 360 ° Range (around) m: - sitting Ø 6.40 m - across Ø 24.00 m - head Ø 8 00 m Protection class: IP20 / Class II / CE, Dimensions: Ø 97 x H 103 mm. Ambient temperature: -25 ° C to + 50 ° C Housing: UV-resistant High-quality polycarbonate Channel 1 (light control), Max load: 2300 W, power factor measure = 1, 1150 VA, power factor measure = 0.5 Time settings: 15 sec. - 30 min. or pulsed. Brightness Value: 10-2000 Lux. Power consumption:> 0.5W

Läs mer
1 395,00 kr 1 116,00 kr exkl. moms
Gratis frakt
Leverantör, 2-3 vardagar leveranstid

Presence sensor PD4-M-1C-K-P corridor master, Surface-mounted product description: • Presence/motion sensor for surface mounting on ceiling • Special corridor lens with range up to 40m• 1 channel for lighting (potential-free). • Powerful relay for switching lamps with high consumption. • Special optical system for detecting the smallest movements. • An unlimited number of slaves can be connected for cost-effective expansion of the detection area! • Application examples: monitoring large areas such as parking garages, sports halls, warehouses, loading ramps. Technical specifications: Supply voltage (V AC): 230Color: white RAL 9010Range (M): 40Mounting height: 2.5

Producent
Varunummer
2755216
Modell
92587
EAN
4007529925872
