Varunummer: 2755239

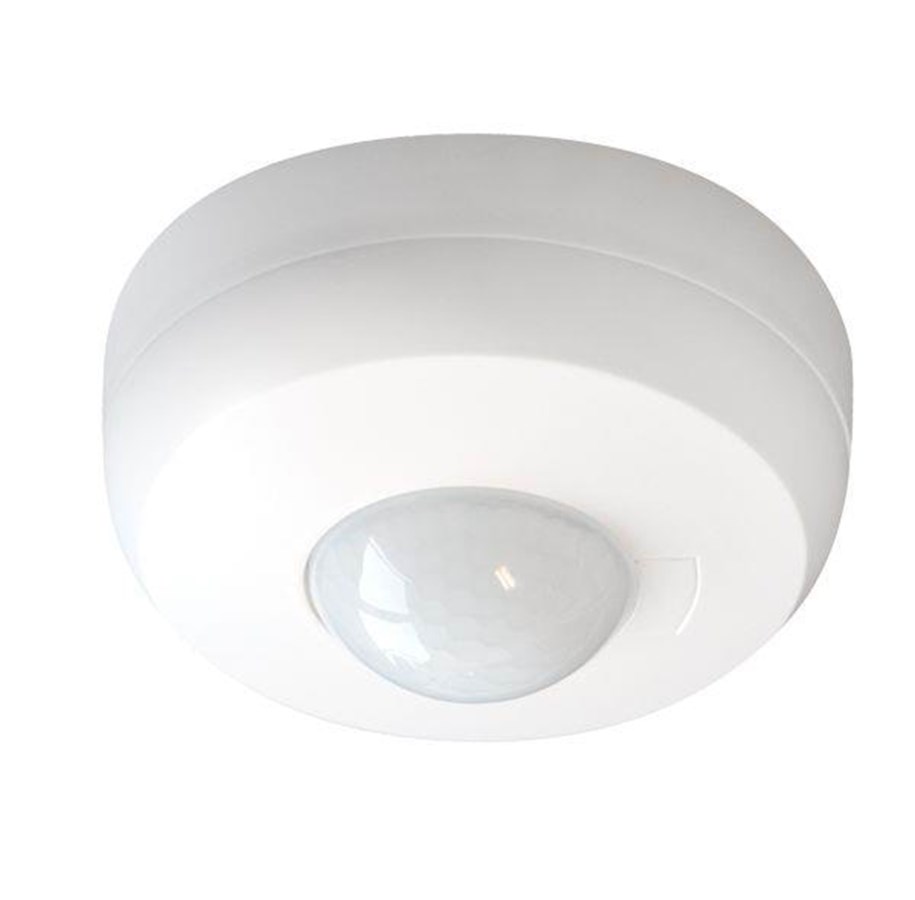

B.E.G. Occupancy detector pd3n-1c/sm-micro

Product: PD3N-1C-P Micro (92219) Motion detector LUXOMAT® PD3-1C for attachment to the wall surface mounting in ceiling and PL can. A channel for ignition of light. Thick relay for ignition of lamps with high consumption. In particular, an optical system for detecting the slightest movements. Series production impulse function (gong). Fixtures with integrated acoustic sensor for detecting people who would otherwise not be detected by the sensor infrared rays (eg. In corners or behind walls)! Application examples: monitoring of smaller surfaces such. stairwells, private garages, lobbies, restrooms. Power supply voltage: 230V ~ ± 10%, Detection: 360 ° Range (around) m: - across Ø 10.00 m - head Ø 6.00 m. Protection: IP44 / Class II / CE, Dimensions: Ø 106 x H 53 mm. Ambient temperature: -25 ° C to + 50 ° C. Housing: UV-resistant polycarbonate high-quality. Remote controllable: IR PD3N, IR-PD-Mini. Channel 1 (light control): Max Load: 2000 W, power factor measure = 1, 1000 VA, power factor measure = 0.5. Time settings: 30 sec. - 30 min. or pulsed. Brightness Value: 10-2000 Lux. Power consumption:> 0.5W

Läs mer
949,00 kr 759,20 kr exkl. moms
Billigaste frakt: 59,00 kr
Leverantör, 2-3 vardagar leveranstid

Movement sensor PD3N-1C-MIC-P, Surface-mounted product description: • LUXOMAT® PD3-1C-i Micro movement sensor with built-in acoustic sensor• Equipped with an integrated acoustic sensor for detecting people who are not detected by the sensor's infrared rays (e.g. in corners or behind partitions)• Can be programmed via remote control (accessory)• Powerful relay for switching on lamps with high power consumption.• Application examples: monitoring of small areas such as stairwells, single garages, entrance halls, toilets. Technical specifications: Supply voltage (V AC): 230Color: white RAL 9010Range (M): 10Mounting height: 2.5

Producent
Varunummer
2755239
Modell
92219
EAN
4007529922192
