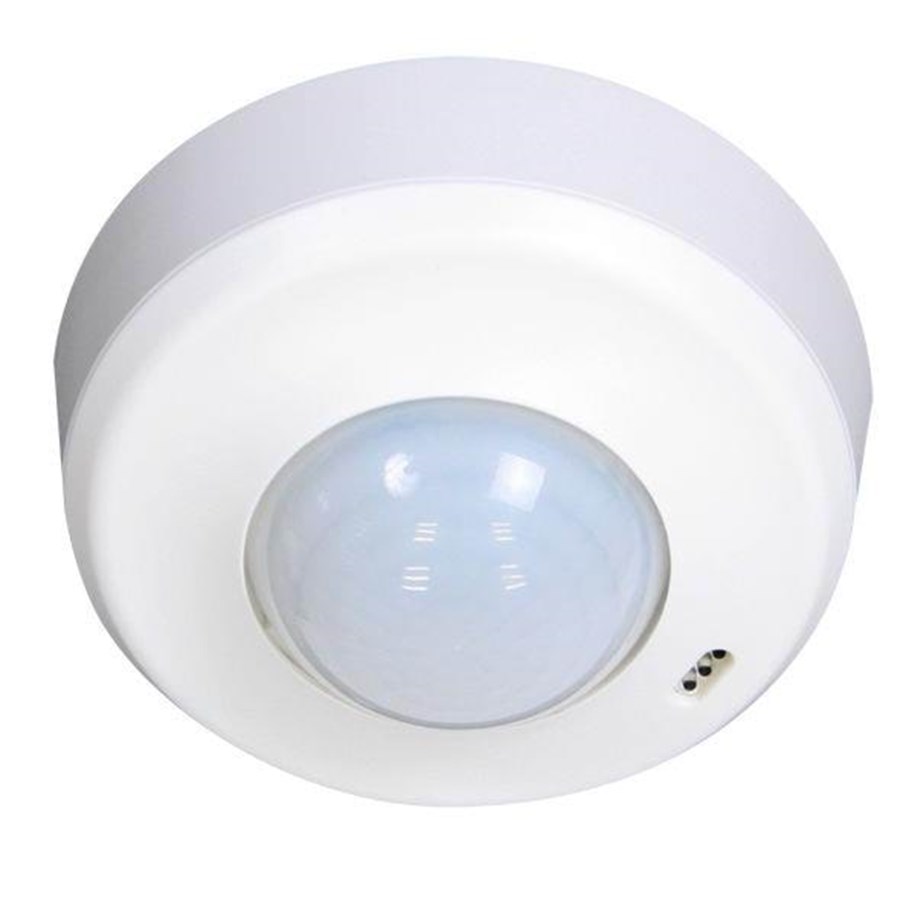

B.E.G. Occupancy detector pd2m-1c-sm
Product: PD2-M-1C-P (92550) Presence detector LUXOMAT® PD2-M-1C as Master version for mounting onto ceiling, wall or PL can. A channel for ignition of light (potential). Thick relay for ignition of lamps with high consumption. In particular, an optical system for detecting the slightest movements. You can connect an unlimited number of slaves for cheap extension of the detection area! Series production impulse function Application examples: offices, conference rooms, schools, kindergartens, hospitals. Power supply voltage: 230V ~ ± 10%. Detection range: 360 °. Range (around) m: - sitting Ø 4.00 m - across Ø 10.00 m - head Ø 6.00 m. Protection: IP20 / Class II / CE Dimensions: Ø 98 x H 50 mm. Ambient temperature: -25 ° C to + 50 ° C Housing: UV-resistant polycarbonate high-quality. Channel 1 (light control), Max Load: 2300 W, power factor measure = 1, 1150 VA, power factor measure = 0.5, Time settings: 15 sec. - 30 min. or impulse, Brightness Value: 10-2000 Lux. Power consumption:> 0.5W
