Varunummer: 2755253

B.E.G. Occupancy detector pd2-m-2c-sm

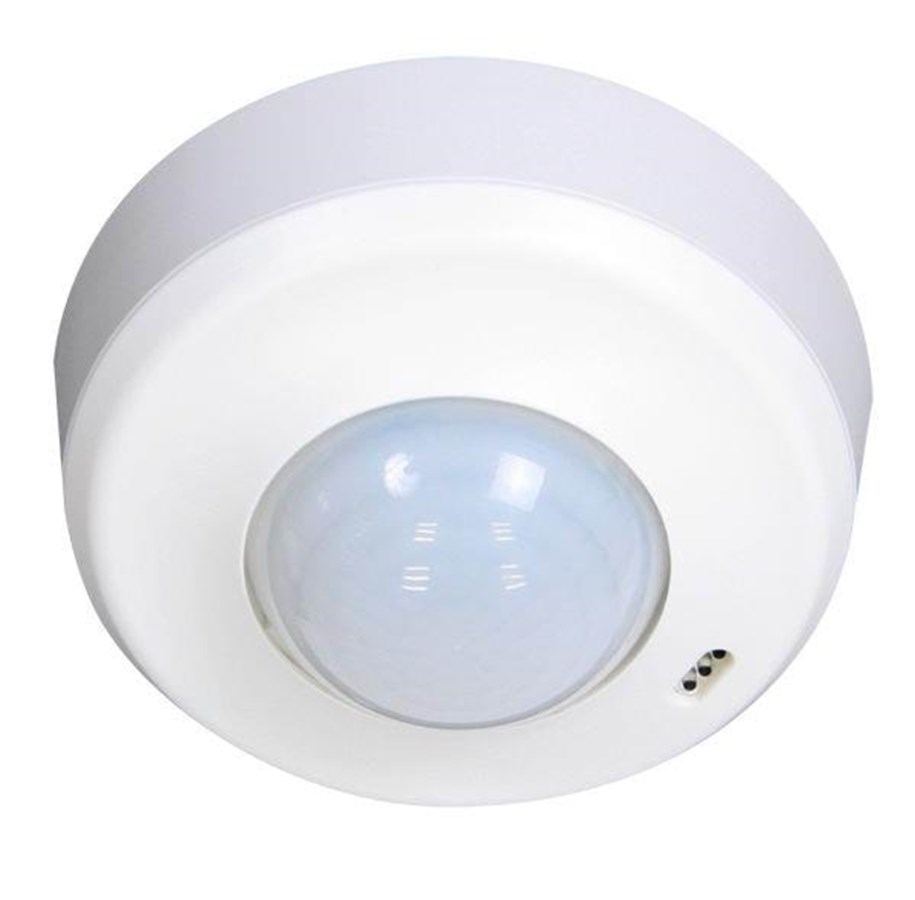

Product: PD2-M-2C-P (92150) Presence / motion detector LUXOMAT® PD2- M-2C as Master version for wall, ceiling or PL can. Two channels, one for switching on the lighting, and a potential for ignition of HVAC (heating, air conditioning and ventilation). You can connect an unlimited number of slaves for the extension of the detection area! Several different programs with the remote control LUXOMAT® IR-PD. Application examples: offices, conference rooms, schools, kindergartens, hospitals Mains voltage: 230 V ~ ± 10%. Detection range: 360 ° Range (around) m: - sitting Ø 4.00 m - across Ø 10.00 m - head Ø 6.00 m. Protection: IP20 / Class II / CE Dimensions: Ø 98 x H 50 mm Ambient temperature: -25 ° C to + 50 ° C. Housing: UV-resistant polycarbonate high-quality. Channel 1 (light control) Max load: 2300 W, power factor measure = 1, 1150 VA, power factor measure = 0.5, Time settings: 15 sec. - 30 min. or impulse, Brightness Value: 10-2000 Lux, Channel 2 (HVAC) Max load: Shutter, NO contact, 3 A, 230 V, power factor measure = 1 Time settings: Alarm pulse, impulse or 5-120 min. Power consumption:> 0.5W

Läs mer
1 185,00 kr 948,00 kr exkl. moms
Gratis frakt
Leverantör, 3-4 vardagar leveranstid

Presence sensor PD2-M-2C-P 2-Channel, Surface-mounted Product description: • Presence/motion sensor LUXOMAT® PD4-M-2C-P Master version for mounting on fixed ceilings, on PL box• Can be overridden via remote control (accessory)• Two channels, one for lighting activation and one potential-free for HVAC activation (radiators, air conditioning and ventilation systems) • Up to 10 slaves can be connected for cost-effective expansion of the detection area• Application examples: monitoring of large areas such as parking garages, sports halls, warehouses, loading ramps etc. Technical specifications: Supply voltage (V AC): 230Color: white RAL 9010Range (M): 10Mounting height: 2.5

Producent
Varunummer
2755253
Modell
92150
EAN
4007529921508
