Varunummer: 2755262

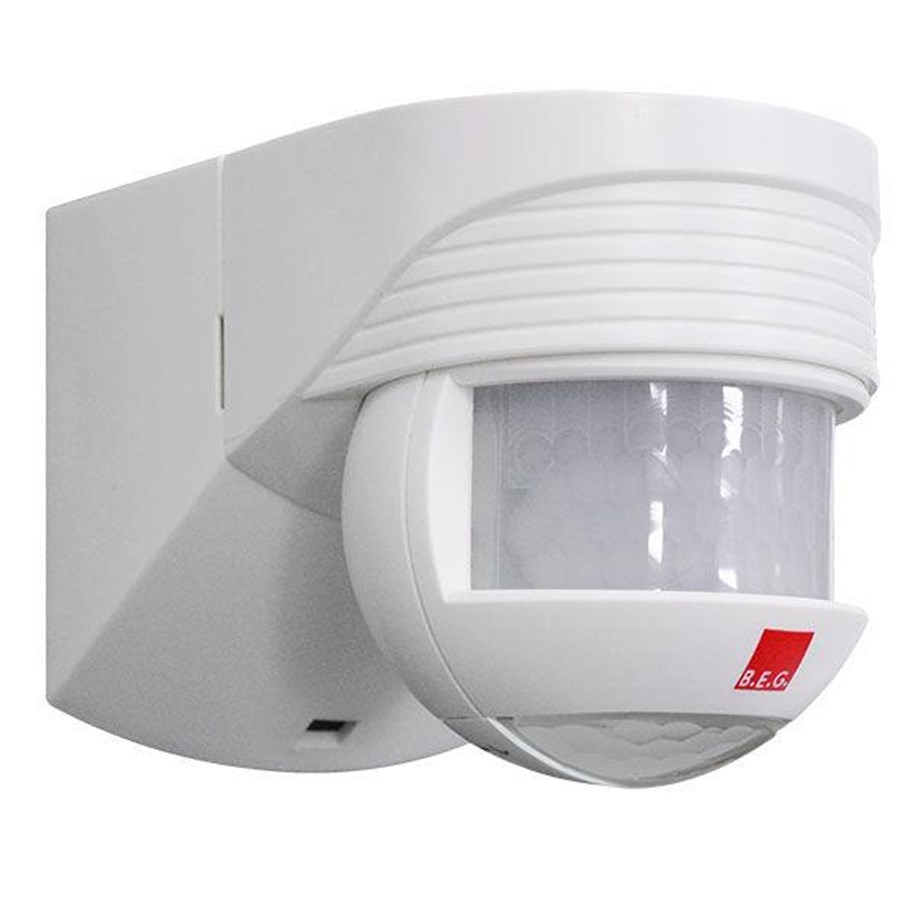

B.E.G. Lc-click n 200° white

Product: LC-Click-N 200 (91002) white. Motion sensor with a detection range of 200 °. Sensor head can be turned on two levels. Range can be adjusted by rotating the sensor head. Masking terminals for precise shielding of sources of interference or to limit the detection area. Adjustable lux value and the delay time with potentiometer on the sensor's underside. Wall mounting, Simple installation. Application examples: monitoring of narrow grounds, driveways. Power supply voltage: 230V ~ ± 10%. Detection range: 200 ° + 360 °. Range (around) m: max. 12 m by moving across the detection area (tangential). Protection: IP44 / Class II / CE. Dimensions: L 103 x W 78 x H 78 mm Ambient temperature: -25 ° C to + 50 ° C. Housing: UV-resistant High-quality polycarbonate Channel 1 (light control) .max Load: 1000 W, power factor measure = 1, Time settings: 4 sec. - 10 min. Brightness Value: 2-2500 Lux

Läs mer
I lager
325,00 kr 260,00 kr exkl. moms
Billigaste frakt: 49,00 kr
1 st. I lager, 1-2 vardagars förväntad leveranstid

Motion sensor LC-Click-N 200, low-crawl zone, White Product description: • Motion sensor with a detection range of 200°. • Sensor head can be rotated on 2 levels. • Range can be adjusted by rotating the sensor head. • Cover clamps for precise shielding of interference sources or to limit the detection area. • Stepless adjustment of lux value and delay time with potentiometer on the underside of the sensor. • Wall mounting, easy installation.• Pin mounting, easy installation.Technical specifications: Supply voltage (V AC): 230Color: whiteRange (M): 12Mounting height: 2.5

Producent
Varunummer
2755262
Modell
91002
EAN
4007529910021

Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
