Varunummer: 2755263

B.E.G. Lc-click 140° n black

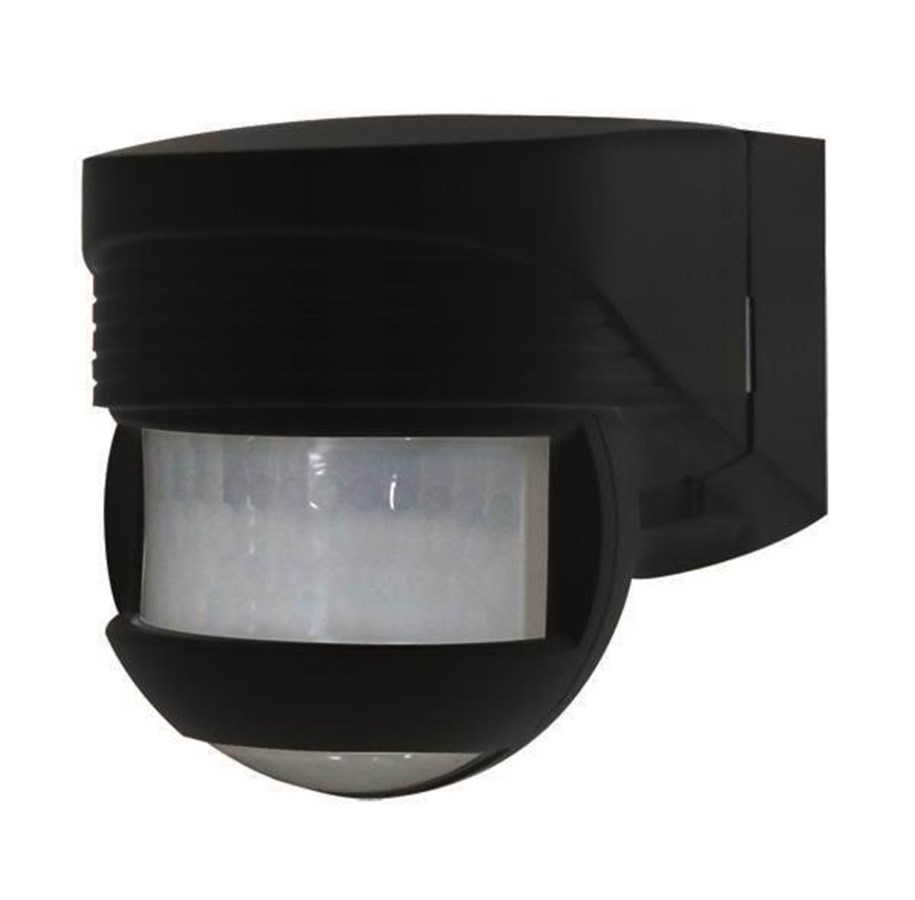

Product: LC-Click-N 140 (91021) black. Motion sensor with a detection range of 140 °. Sensor head can be turned on two levels. Range can be adjusted by rotating the sensor head. Masking terminals for precise shielding of sources of interference or to bregrænsning of the detection. Adjustable lux value and the delay time with potentiometer on the sensor's underside. Wall mounting, Simple installation. Application examples: monitoring of narrow grounds, driveways. Power supply voltage: 230V ~ ± 10%. Detection range: 140 ° + 360 °. Range (approximately) in m :. max. 12 m by moving across the detection area (tangential). Protection: IP44 / Class II / CE. Dimensions: L 103 x W 78 x H 78 mm. Ambient temperature: -25 ° C to + 50 ° C. Housing: UV-resistant polycarbonate high-quality. Channel 1 (light control). Max Load: 1000 W, power factor measure = 1, Time settings: 4 sec. - 10 min. Brightness Value: 2-2500 Lux sec. - 10 min. Brightness Value: 2-2500 Lux.

Läs mer
303,00 kr 242,40 kr exkl. moms
Billigaste frakt: 49,00 kr
Leverantör, 2-3 vardagar leveranstid

Motion sensor LC-Click-N 140, Black Product description: • Motion sensor with a detection range of 140°. • Sensor head can be rotated on 2 levels. • Range can be adjusted by rotating the sensor head. • Cover clamps for precise shielding of interference sources or to limit the detection area. • Stepless adjustment of lux value and delay time with potentiometer on the underside of the sensor. • Wall mounting, easy installation.• Pin mounting, easy installation.Technical specifications: Supply voltage (V AC): 230Color: blackRange (M): 12Mounting height: 2.5

Producent
Varunummer
2755263
Modell
91021
EAN
4007529910212
