Varunummer: 2908024

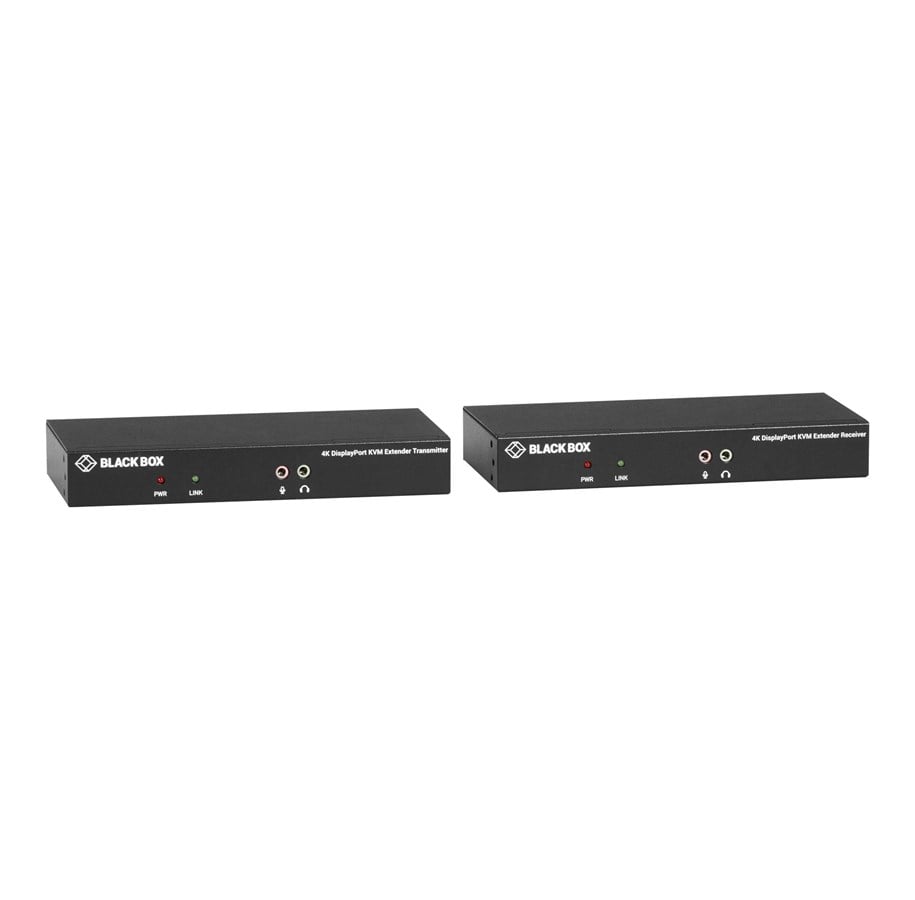

Black Box KVX Series KVM Extender over CATx - 4K Single-Head DisplayPort USB 2.0 Hub Serial Audio Local Video

4K, Single-Head, DisplayPort, USB 2.0 Hub, Serial, Audio, Local Video, Sändare och mottagare, förlängare för tangentbord/video/mus/seriell/USB, USB, upp till 100 m, 1U, TAA-kompatibel

13 180,00 kr 10 544,00 kr exkl. moms
Gratis frakt
Beställningsvara, 1-2 månaders leverans
Laddare medföljer
Charger included

Extend KVM signals up to 100m over CATx cable. The KVX Single Head DisplayPort KVM Extender lets you control a server or computer over a standard CAT5 or CAT6 UTP network cable connection at distances of up to 328 feet (100 meters). This extender also supports 4K video. PC connection cables are included with this product making it a solution that is ready to use right out of the box. You can use your existing keyboard mouse and monitor to access both the server room and your office computer saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers medical facilities industrial warehouses and extended workstations. KVX Single Head is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices such as touchscreens and barcode scanners. It eliminates the need for traveling back and forth between the local computer and remote console making it an efficient and flexible solution. KVX Series Extenders also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs. KVX is TAA compliant and backed by free lifetime technical support. KVX is a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or customers who require control of systems that are physically inaccessible placed in secure locations or in otherwise harsh environments. This can include command and control operations server management distribution monitoring or utilities process control centers.

Producent
Varunummer
2908024
Modell
KVXLCDP-100
EAN
822088142584
Till producentens hemsida
Produktbeskrivning
Black Box KVX Series KVM Extender over CATx - 4K, Single-Head, DisplayPort, USB 2.0 Hub, Serial, Audio, Local Video - sändare och mottagare - förlängare för tangentbord/video/mus/seriell/USB - TAA-kompatibel
Typ av enhet
Förlängare för tangentbord/video/mus/seriell/USB - USB
Formfaktor
Extern - 1U
Max överföringsavstånd
100 m
Dimensioner (BxDxH)
18 cm x 8.3 cm x 2.1 cm
TAA-kompatibel
Ja

Allmänt

Typ av enhet
Förlängare för tangentbord/video/mus/seriell/USB
Formfaktor
Extern - 1U

Nätverksfunktioner

Anslutningsteknik
Kabelansluten
Tangentbords-/musgränssnitt
USB
Max upplösning
3840 x 2160 @ 30 Hz
Max överföringsavstånd
100 m
Statusindikatorer
Strömförsörjning, länk/akvititet
Funktioner
4 K upplösningssupport, EDID Pass-Through, metallhölje, CatX Technology
Standarder som följs
USB 2.0

Expansion/Anslutning

Gränssnitt
1 x DisplayPort
1 x RS-232 - DB-9
4 x USB 2.0 - Type A
1 x mikrofon - mini jack
1 x högtalare - mini jack
1 x nätverk - RJ-45

Diverse

Inkluderade tillbehör
Internationella stickkontakter
Medföljande kablar
1 x DisplayPort-kabel - 1.8 m
1 x ljudkabel - 1.8 m
1 x USB-typ A till USB-typ B-kabel - 1.8 m
Rackmonteringssats
Tillval
MTBF (genomsnittstid mellan fel)
137,540 (TX)/165,620 (RX) timmar
Standarder som följs
DDC-2B, DDC, DDC-2
TAA-kompatibel
Ja

Strömtillförsel

Nätdel
Extern strömadapter
Installerat antal
2

Mått och vikt

Bredd
18 cm
Djup
8.3 cm
Höjd
2.1 cm
Dimensioner (BxDxH)/vikt
Mottagare: 18 cm x 8.3 cm x 2.1 cm / 378 g
Sändare: 18 cm x 8.3 cm x 2.1 cm / 372 g

Miljöparametrar

Min temperatur vid drift
0 °C
Max temperatur vid drift
50 °C
Luftfuktighet vid drift
0 - 80% (icke-kondenserande)

Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
