Varunummer: 3206630

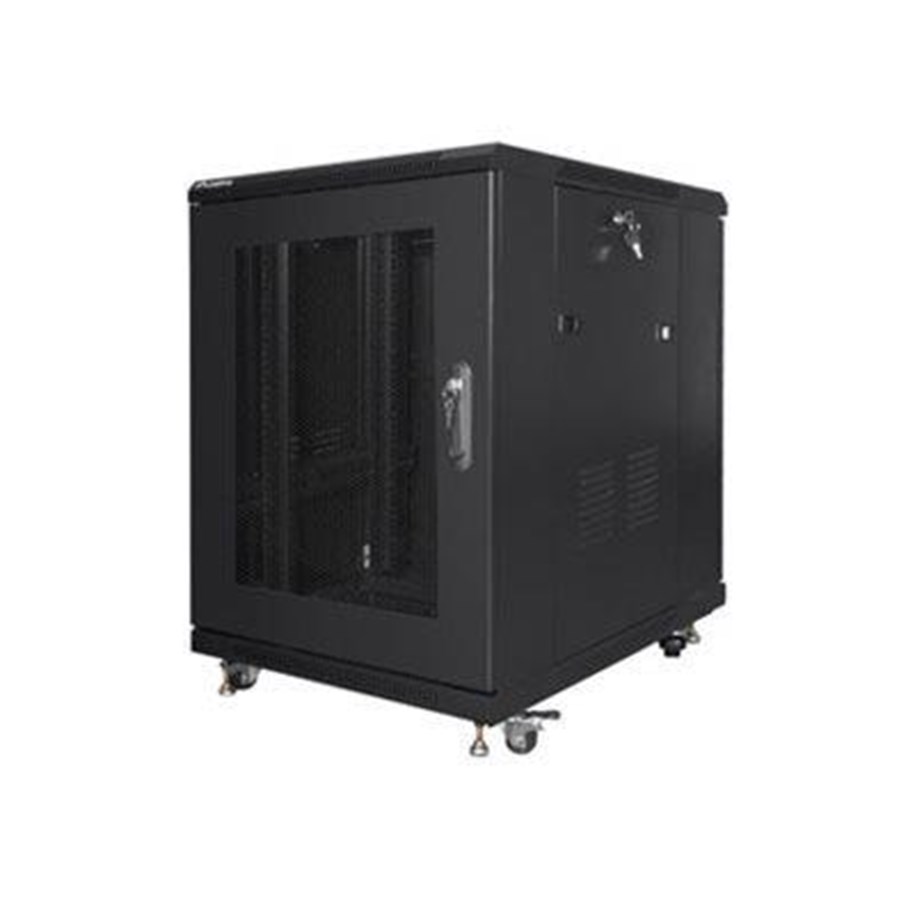

Lanberg FF01-6815-23B - 15U Rack Cabinet - With Mesh Door

Rack skåp, flat pack, with mesh door, 600x800, free-standing, svart, RAL 9004, 15U, 19"

5 340,00 kr 4 272,00 kr exkl. moms
Gratis frakt
Leverantör, 6-7 vardagar leveranstid

Lanberg FF01-6815-23B single-section cabinet is specially designed for network construction, cable installation and storage of 19" equipment.

It is an ideal solution for data centers that require a large amount of rack space for equipment. It will easily fulfill its role in complex networks and server rooms, whether in small, medium or large companies or corporations. It will also be perfect for low-current installations, such as cable TV networks, alarm systems, fire alarm systems, access control and CCTV and IP monitoring systems.

The cabinet's structure is made of high-quality rolled steel, which guarantees excellent design and durability. The cabinet allows full depth adjustment of the vertical mounting rails. It is equipped with a front perforated door with a lock, with the possibility of double-sided mounting. The side panels are removable, and the rear door is made of perforated steel, which also has a lock. It is possible to insert cabling through the lockable top and bottom panels.

A ventilation panel with four 230V fans is also included. In addition, included are accessories for fixing the support rails, M6 screws and plugs for the entrance panels, and a grounding set of two wires and nuts. Thanks to the flat pack design, the entire cabinet is packed in three flat packs for easy transportation.

Producent
Varunummer
3206630
Modell
FF01-6815-23B
EAN
5901969439755
Till producentens hemsida
Produktbeskrivning
Lanberg V2 - rack - flat pack, med nätdörr, 600x800 - 15U
Produkttyp
Rack - flat pack, med nätdörr, 600x800
Racktyp
Skåp
Placering/montering
Fristående
Förpackningens innehåll
M6-skruvar, hjul med broms, jordkabel, främre och bakre dörrlås, sidopanelslås, nivellerande ben, ventilationspanel (4 fläktar)
Färg
RAL 9004, svart
Stativstorlek
19"
Höjd (U-format)
15U
Produktmaterial
Höggradigt kallvalsat stål
Dimensioner (BxDxH)
60 cm x 80 cm x 84.8 cm
Vikt
50 g
Egenskaper
251° öppning av ytterdörr, numbered rail markings, 1,2 mm dörr- och paneltjocklek, 2 mm rails tjocklek, perforerad framdörr, perforerad bakdörr, övre och undre kabelingångspunkter, 4 fläktmonteringar

Allmänt

Produkttyp
Rack - flat pack, med nätdörr, 600x800
Racktyp
Skåp
Placering/montering
Fristående
Produktmaterial
Höggradigt kallvalsat stål
Förpackningens innehåll
M6-skruvar, hjul med broms, jordkabel, främre och bakre dörrlås, sidopanelslås, nivellerande ben, ventilationspanel (4 fläktar)
Stativstorlek
19"
Höjd (U-format)
15U
Bredd
60 cm
Djup
80 cm
Höjd
84.8 cm
Vikt
50 g
Innermått
72 cm
Färg
RAL 9004, svart
Finish
Puderhölje

Diverse

Viktgräns
800 kg
Montering erfordras
Ja
Egenskaper
251° öppning av ytterdörr, numbered rail markings, 1,2 mm dörr- och paneltjocklek, 2 mm rails tjocklek, perforerad framdörr, perforerad bakdörr, övre och undre kabelingångspunkter, 4 fläktmonteringar
Standarder som följs
LVD, EMC, 2014/30/EU, 2011/65/EU, EN 62321-1:2013, EN 62321-2:2014, EN 62321-3-1:2014, EN 62321-6:2015, EN 62321-5:2014, EN 62321-7-1:2015, EN 62321-7-2:2017, EN 62321-8:2017, EN 55014-1:2017, EN 55014-2:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, IEC 297-2:1982, ETSI, ANSI/EIA-RS-310-D, DIN 41491 Part 1, DIN 41494 Part 7, IP20

Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
