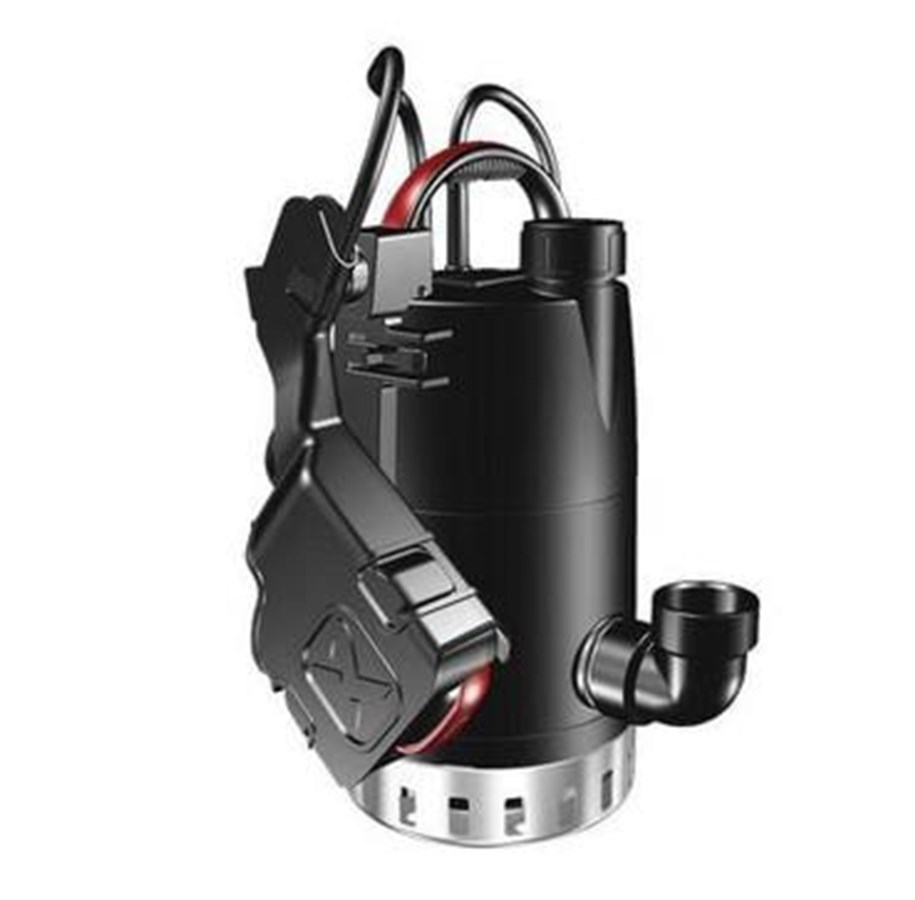

Grundfos unilift pump cc7-a1

Grundfos Unilift CC pumps are single-stage submersible pumps with a low suction ability down to 3 mm water level. The pumps are designed for pumping rainwater and grey wastewater, e.g. from •washing machines, baths, sinks, etc. from low-lying parts of buildings up to sewer level•cellars or buildings prone to flooding•draining wells•wells for surface water with inlets from roof gutters, pits, tunnels, etc.•swimming pools, ponds or fountains.The pumps are suitable for both stationary and portable use. They are for automatic operation. The pumps allow free passage of particles up to ø10 mm. The motor incorporates automatic overload protection cutting out the motor in case of overload. When cooled to normal temperature, the motor restarts automatically. Technical: Maximum particle size: 10 mm Materials: Pump housing: PP 15 GF Impeller: PPOm 20 GF Installation: Pump outlet: 1.1/4 Maximum installation depth: 10 m Liquid: Pumped liquid: Any Newtonian liquid Liquid temperature range: 0 .. 40 °C Density: 998.2 kg/m3 Electrical data: Mains frequency: 50 Hz Rated voltage: 1 x 220-240 V Rated current: 1.8 A Capacitor size - run: 8 F/450 V Enclosure class (IEC 34-5): IP68 Insulation class (IEC 85): F Length of cable: 10 m Type of cable plug: SCHUKO

Läs mer
3 815,00 kr 3 052,00 kr exkl. moms
Gratis frakt
Leverantör, 2-3 vardagar leveranstid

Grundfos Unilift submersible pump CC7-A1 Product description: Grundfos Unilift CC pumps are single-stage submersible pumps with low suction capability down to 3 mm water level. The pumps are designed for pumping rainwater and grey wastewater, e.g. from washing machines, bathrooms, sinks etc. from low-lying parts of buildings up to sewer level •basements or buildings at risk of flooding •drainage wells •wells for surface water with inlets from gutters, wells, tunnels etc. •swimming pools, ponds or fountains. The pumps are suitable for both stationary and transport use. They are intended for automatic operation. The pumps allow free passage of particles up to ø10 mm.The motor contains automatic overload protection which shuts off the motor in case of overload.When the motor has reached its normal temperature again,the motor restarts automatically.Technical: Max.particle size: 10 mm Materials:Pump housing: PP 15 GF Impeller: PPOm 20 GF Installation:Pump outlet: 1¼"Max.installation depth : 10 m Medium:Pumping medium : arbitrary medium Liquid temperature range : 0 ..40 °C Density : 998 .2 kg/m³ Electrical data:Mains frequency :50 Hz Rated voltage :1 x220-240 V Rated current:I .8 A Capacitor size - running:I F/450 V Enclosure class (IEC34-5) IP68 Insulation class (IEC85) F Cable length :10 m Type cable plug:SCHUKO

Producent
Varunummer
2898890
Modell
98624463
EAN
5711498431317
