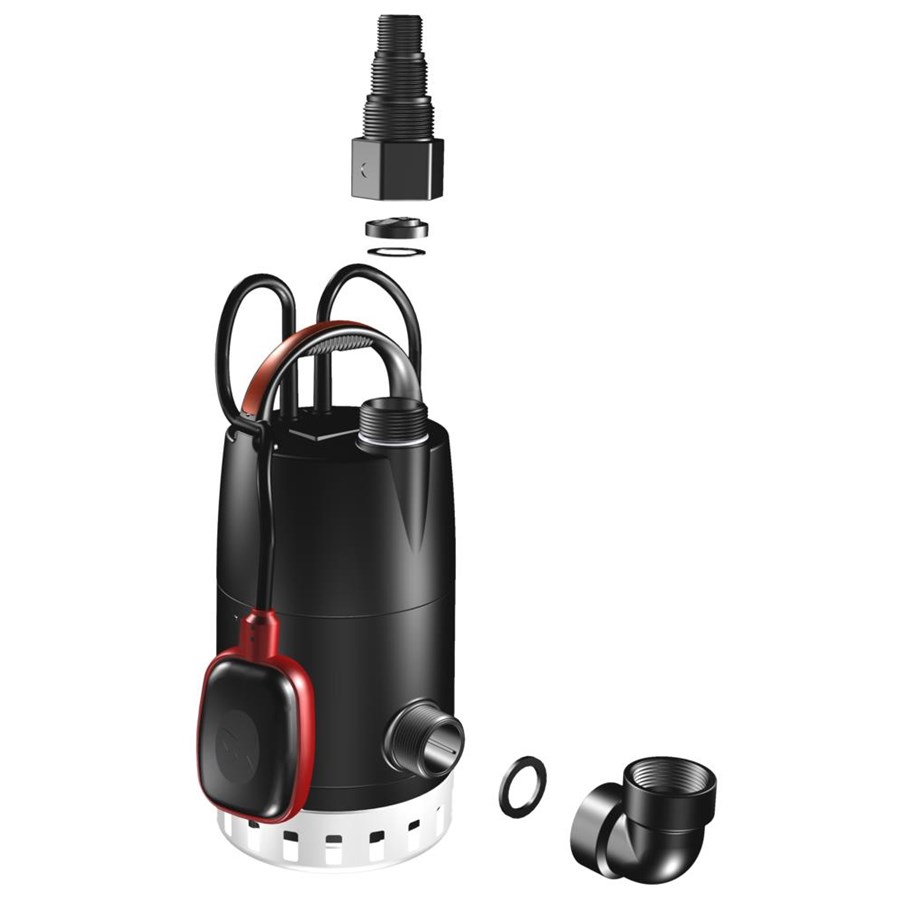

Grundfos unilift cc7-a1 380w

Unilift CC 7 Grundfos Unilift CC pumps are single-stage submersible pumps with a low suction ability down to 3 mm water level.The pumps are designed for pumping rainwater and grey wastewater, e.g. from• washing machines, baths, sinks, etc. from low-lying parts of buildings up to sewer level• cellars or buildings prone to flooding• draining wells• wells for surface water with inlets from roof gutters, pits, tunnels, etc.• swimming pools, ponds or fountains.The pumps are suitable for both stationary and portable use.They are for automatic operation.The pumps allow free passage of particles up to ø10 mm.The motor incorporates automatic overload protection cutting out the motor in case of overload.When cooled to normal temperature, the motor restarts automatically.Technical:Maximum particle size:10 mmMaterials:Pump housing:PP 15 GFImpeller:PPOm 20 GFInstallation:Pump outlet:1.1/4'Maximum installation depth:10 mLiquid:Liquid temperature range:0 .. 40 °CElectrical data:Rated voltage:1 x 220-240 VRated current:1.8 ACapacitor size - run:8 F/450 VEnclosure class (IEC 34-5):IP68Insulation class (IEC 85):FLength of cable:10 mType of cable plug:SCHUKOOthers:Net weight:4.6 kgGross weight:5.2 kgShipping volume:0.168 m3
