Varunummer: 3410726

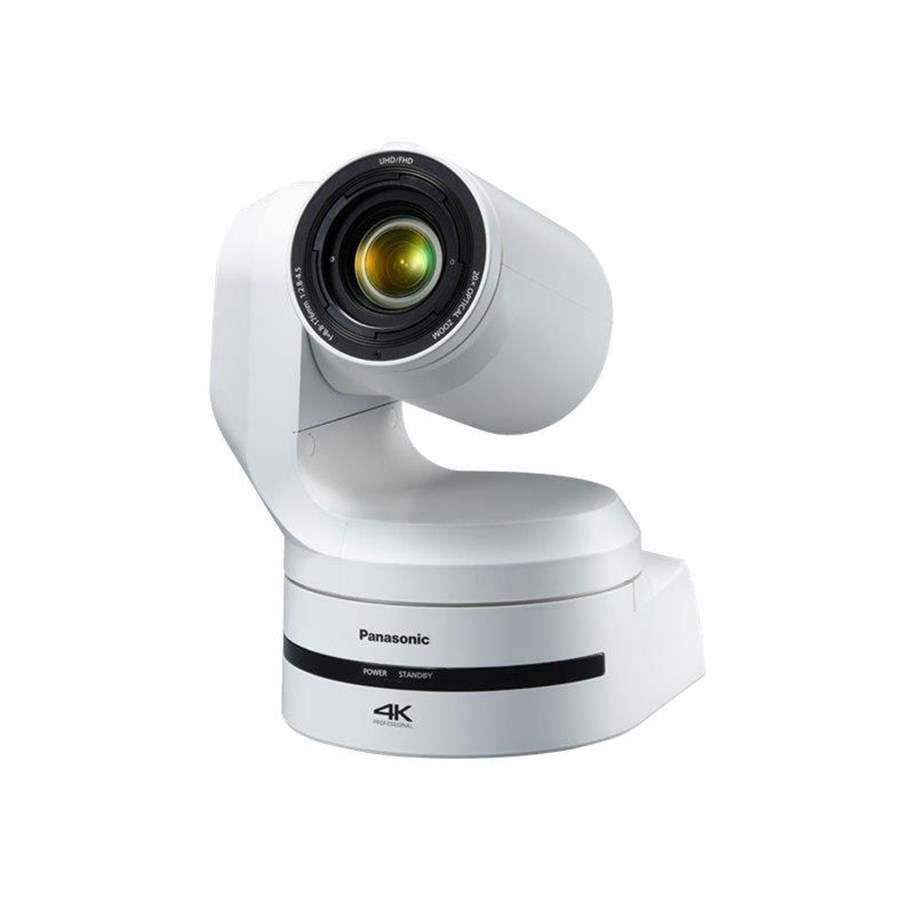

Panasonic AW-UE150AK - conference camera
Konferenskamera, PLZ, färg (Dag&Natt), 20.2 MP, 3840 x 2160, motoriserad, 2000 TVL, ljud, HDMI, 3G-SDI, 12G-SDI, LAN, MJPEG, H.264, H.265, DC 12 V / PoE ++
138 550,00 kr
110 840,00 kr exkl. moms
Gratis frakt
Beställningsvara - leveranstid kan ej upplysas
The Panasonic AW-UE150AK is a versatile conference camera designed to deliver high-quality video with exceptional detail. With a powerful optical zoom of 20 and a digital zoom of 32, this camera is equipped to capture sharp images from various distances. It supports a wide range of video resolutions, including 3840 x 2160, ensuring clear visual representation, whether in a professional meeting or educational setting. Its automatic focus and zoom features allow for swift adjustments, making it suitable for live situations where dynamic environments are common. In addition to its video capabilities, the AW-UE150AK offers a range of connectivity options, including HDMI and 3G-SDI outputs. It is compatible with various network protocols like TCP/IP and UDP/IP for easy integration into existing infrastructures. The camera is designed with durability in mind, able to operate in a range of environmental conditions, with a minimum operating temperature of 0 °C and a maximum of 40 °C, ensuring reliability in different settings. Enhanced features such as Optical Image Stabilization and built-in optical ND filters contribute to producing quality video content that meets the needs of diverse applications.
Producent
Varunummer
3410726
Modell
AW-UE150AKEJ
EAN
5025232972371
Till producentens hemsida
Kontakta tillverkaren
Produktbeskrivning
Panasonic AW-UE150AK - konferenskamera
Typ av enhet
Konferenskamera - panorering / lutning / zoom
Ljud
Ja
Kameramonteringstyp
Takmontering, bordsfäste
Dimensioner (BxDxH)
21.3 cm x 21.9 cm x 26.7 cm
Vikt
4.3 g
Färg
Svart
Anslutningsteknik
Kabelanslutning
Kamera
Färg - Dag&Natt - 2000 TVL
Optisk zoomning
20 x
Max upplösning
3840 x 2160
Bildhastighet (max)
60 frames per second
Videoformat
1080/24p, 1080/50i, 720/50p, 1080/50p, 1080/30p, 1080/25p, 2160/24p, 2160/25p, 2160/50p, 1080/59.94i, 1080/59.94p, 720/59.94p, 1080/25PsF, 1080/23.98p, 2160/23.98p, 2160/29.97p, 2160/59.94p
Bildsensortyp
MOS - 1" - 20.2 MP
Mimimibelysning
2 lux F2.8 - 50 IRE
Kontroll brännvidd
Motoriserad zoom
Brännvidd
8.8 mm - 176 mm
Fokuseringsjustering
Automatisk, manuell (minimiavstånd 10 cm)
Iris-lins
F/2.8-4.5
Panoreringsområde (grader)
-175 till +175
Lutningsområde (grader)
-30 till +210
Gränssnitt
HDMI, 3G-SDI, 12G-SDI, LAN
Kontrollgränssnitt
RS-422A
Spänning
DC 12 V / PoE ++
Egenskaper
Built-in optical ND filters, justerbar förstärkningskontroll, Gain Boost function, Automatic Tracing White (ATW), Automatic Whiteness Balance (AWB), HD Tri-Level Sync, Unicast Streaming, Multicast Streaming, kontrollampa, Crop Zoom, FreeD protocol support, Optical Low Pass Filter (OLFP), optisk bildstabiliserare, automatisk spårning
Miljöparametrar (vid drift)
0 °C - 40 °C; 20 - 90 % (icke-kondenserande) relativ luftfuktighet
Allmänt
Typ av enhet
Konferenskamera
Stöd för ljud
Ja
Ljudformat
AAC-LC
Kameramonteringstyp
Takmontering, bordsfäste
Anslutningsteknik
Kabelanslutning
Bredd
21.3 cm
Djup
21.9 cm
Höjd
26.7 cm
Vikt
4.3 g
Kamera
Typ
Färg - Dag&Natt - panorering / lutning / zoom
Format för digital video
MJPEG, H.264, H.265
Horisontell upplösning (TV-linjer)
2000
Maximal digital videoupplösning
3840 x 2160
Videoformat
1080/24p, 1080/50i, 720/50p, 1080/50p, 1080/30p, 1080/25p, 2160/24p, 2160/25p, 2160/50p, 1080/59.94i, 1080/59.94p, 720/59.94p, 1080/25PsF, 1080/23.98p, 2160/23.98p, 2160/29.97p, 2160/59.94p
Digital zoomning
32
Exponeringsområde
1/24 sek - 1/10000 sek
Mimimibelysning
2 lux F2.8 - 50 IRE
Videotagning
3840 x 2160 @ 59,94 fps
3840 x 2160 @ 50 fps
3840 x 2160 @ 29,97 fps
3840 x 2160 @ 25 fps
3840 x 2160 @ 24 fps
3840 x 2160 @ 23,98 fps
1920 x 1080 @ 59,94 fps
1920 x 1080 @ 50 fps
1920 x 1080 @ 29,97 fps
1920 x 1080 @ 25 fps
1920 x 1080 @ 24 fps
1920 x 1080 @ 23,98 fps
1280 x 720 @ 59,94 fps
1280 x 720 @ 50 fps
3840 x 2160 @ 50 fps
3840 x 2160 @ 29,97 fps
3840 x 2160 @ 25 fps
3840 x 2160 @ 24 fps
3840 x 2160 @ 23,98 fps
1920 x 1080 @ 59,94 fps
1920 x 1080 @ 50 fps
1920 x 1080 @ 29,97 fps
1920 x 1080 @ 25 fps
1920 x 1080 @ 24 fps
1920 x 1080 @ 23,98 fps
1280 x 720 @ 59,94 fps
1280 x 720 @ 50 fps
Bildformat som stöds
JPEG
Egenskaper
Built-in optical ND filters, justerbar förstärkningskontroll, Gain Boost function, Automatic Tracing White (ATW), Automatic Whiteness Balance (AWB), HD Tri-Level Sync, Unicast Streaming, Multicast Streaming, kontrollampa, Crop Zoom, FreeD protocol support, Optical Low Pass Filter (OLFP), optisk bildstabiliserare, automatisk spårning
Bildsensor
Typ
20.2 MP MOS 1"
Optisk konstruktion
Typ
Motoriserad zoom
Optisk zoomning
20 x
Brännvidd
8.8 mm - 176 mm
Iris-lins
F/2.8-4.5
Fokuseringsjustering
Automatisk, manuell
Min. fokuseringsavstånd
10 cm
Horisontellt visningsfält (grader)
4 - 75.1
Vertikalt visningsfält (grader)
2.3 - 46.7
Diagonalt synsfält (grad)
4.6 - 82.8
Panorering
Område (grader)
-175 till +175
Hastighet (grader/s)
Upp till 180
Lutning
Område (grader)
-30 till +210
Hastighet (grader/s)
Upp till 180
Gränssnitt
Video
HDMI, 3G-SDI, 12G-SDI
Nätverksgränssnitt
LAN
Nätverksprotokoll
LLDP, NDI HX2, TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTCP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT, IPv4, IPv6, DHCPv6, MLD
Kontrollgränssnitt
RS-422A
Expansion/Anslutning
Portar
G/L input - BNC
Ljudingång/mikrofon - 3,5 mm stereojack
HDMI-utgång - HDMI Type A
12G-SDI-utgång - BNC
2 x 3G-SDI-utgång - BNC
Videoutgång - SFP+
LAN/ström - RJ-45
Seriell RS-422 - RJ-45
Ljudingång/mikrofon - 3,5 mm stereojack
HDMI-utgång - HDMI Type A
12G-SDI-utgång - BNC
2 x 3G-SDI-utgång - BNC
Videoutgång - SFP+
LAN/ström - RJ-45
Seriell RS-422 - RJ-45
Diverse
Standarder som följs
IEEE 802.3bt, SMPTE 2082-1, SMPTE 2081, SMPTE 292M, SMPTE 424M
Färg
Svart
Strömtillförsel
Strömkrav
DC 12 V / PoE ++
Programvara / Systemkrav
Operativsystem erfordras
Microsoft Windows 10 / 11, Apple macOS 12, Apple macOS 13, Apple macOS 14, Apple iOS, Apple iPadOS, Android
Miljöparametrar
Min temperatur vid drift
0 °C
Max temperatur vid drift
40 °C
Relativ luftfuktighet (vid drift)
20 - 90 % (icke-kondenserande)
Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
