Varunummer: 3268033

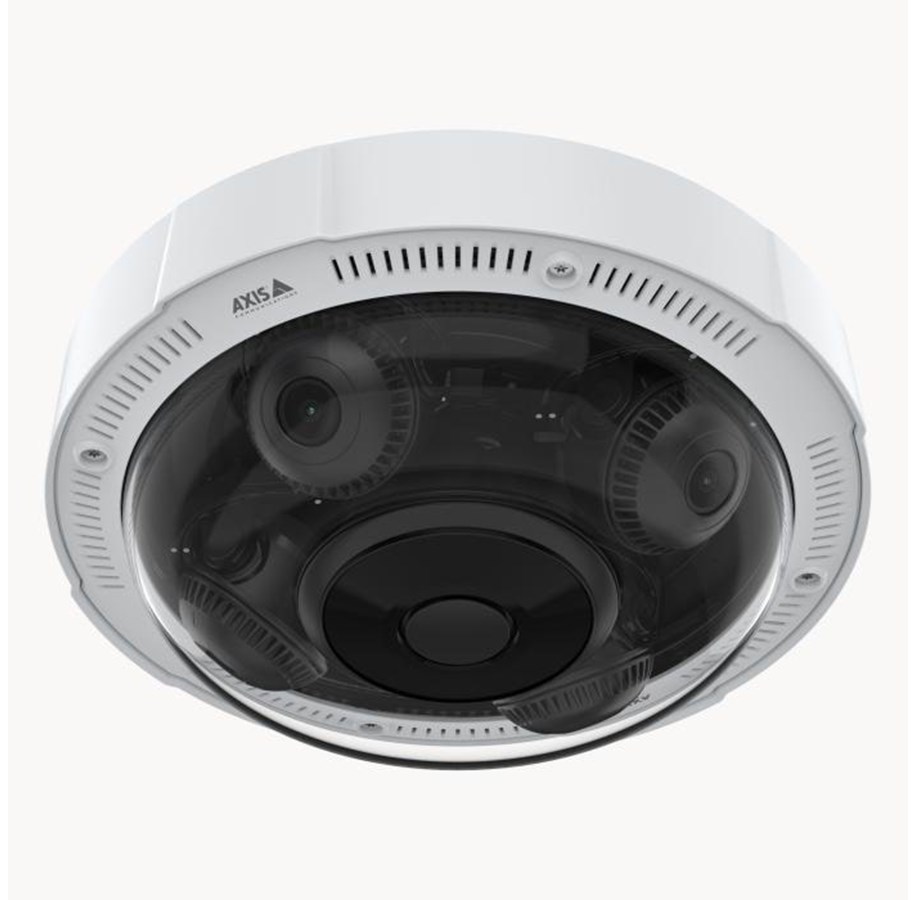

Axis P3737-PLE Panoramic AI-powered 4x5 MP multidirectional Camera
Axis P3737-PLE Kupol-formad IP-säkerhetskamera Inomhus & utomhus 2688 x 1944 pixlar Tak
23 709,00 kr
18 967,20 kr exkl. moms
Gratis frakt
Leverantör, 2-3 vardagar leveranstid
Ideal for wide-area surveillance, this multidirectional camera delivers excellent overviews and detailed coverage. With highly efficient power consumption, it ensures sustainable surveillance with lower operating costs.
Wide area surveillance with high-quality overview - 24/7
AXIS P3737-PLE offers four channels with 5 MP per channel at 20 fps letting you capture both wide-angle and zoomed-in, detailed views. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you’ll enjoy clear, reflection-free footage and excellent image quality even in low light or complete darkness. Plus, Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Furthermore, it’s possible to run metadata and AXIS Object Analytics streams on multiple channels so you can detect and classify people and vehicles, for instance entering a user-defined area. This makes it possible to count selected objects in an area of interest and trigger an alarm if a threshold is exceeded.
Brilliant Design
This compact camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage. When mounted on corners, it offers 270° coverage. Featuring a tamper-resistant casing and integrated IP66-/IP67-rated weather shield, it’s protected against rain, snow, and sunlight—ideal for outdoor wall mounting. In addition, all four varifocal camera heads can be moved and rotated to provide the optimal field of view. Plus, each head can be controlled individually so you can monitor scenes in four directions. The camera’s sensors can also be twisted, so two camera heads can be positioned closer together where one captures the wide view and the other zooms in on the same target.
Cost-efficient and secure
With four camera heads in one camera, AXIS P3737-PLE ensures fast, accurate, and cost-effective installation. That’s because there’s only one camera to install, one cable to draw, one IP address, and one video management software (VMS) license. Plus, it offers market-leading energy consumption compared to multiple single-sensor cameras—even with IR enabled. This ensures sustainable surveillance with lower operating costs. Thanks to remote zoom and focus capabilities, it eliminates the need for hands-on fine-tuning. Furthermore, Axis Zipstream significantly lowers bandwidth and storage requirements. And Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.
Deep learning analytics
Built on ARTPEC-8, this high-performance camera features a deep learning processing unit (DLPU) eliminating the need for expensive servers and allowing for a faster and more scalable system. Plus, it improves processing capabilities so you can collect and analyze even more data than before—on the edge. This helps ensure fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it can detect and classify people and vehicles. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge available from Axis and our partners.
Wide area surveillance with high-quality overview - 24/7
AXIS P3737-PLE offers four channels with 5 MP per channel at 20 fps letting you capture both wide-angle and zoomed-in, detailed views. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you’ll enjoy clear, reflection-free footage and excellent image quality even in low light or complete darkness. Plus, Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Furthermore, it’s possible to run metadata and AXIS Object Analytics streams on multiple channels so you can detect and classify people and vehicles, for instance entering a user-defined area. This makes it possible to count selected objects in an area of interest and trigger an alarm if a threshold is exceeded.
Brilliant Design
This compact camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage. When mounted on corners, it offers 270° coverage. Featuring a tamper-resistant casing and integrated IP66-/IP67-rated weather shield, it’s protected against rain, snow, and sunlight—ideal for outdoor wall mounting. In addition, all four varifocal camera heads can be moved and rotated to provide the optimal field of view. Plus, each head can be controlled individually so you can monitor scenes in four directions. The camera’s sensors can also be twisted, so two camera heads can be positioned closer together where one captures the wide view and the other zooms in on the same target.
Cost-efficient and secure
With four camera heads in one camera, AXIS P3737-PLE ensures fast, accurate, and cost-effective installation. That’s because there’s only one camera to install, one cable to draw, one IP address, and one video management software (VMS) license. Plus, it offers market-leading energy consumption compared to multiple single-sensor cameras—even with IR enabled. This ensures sustainable surveillance with lower operating costs. Thanks to remote zoom and focus capabilities, it eliminates the need for hands-on fine-tuning. Furthermore, Axis Zipstream significantly lowers bandwidth and storage requirements. And Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.
Deep learning analytics
Built on ARTPEC-8, this high-performance camera features a deep learning processing unit (DLPU) eliminating the need for expensive servers and allowing for a faster and more scalable system. Plus, it improves processing capabilities so you can collect and analyze even more data than before—on the edge. This helps ensure fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it can detect and classify people and vehicles. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge available from Axis and our partners.
Producent
Varunummer
3268033
Modell
02634-001
EAN
7331021080638
Till producentens hemsida
Produktbeskrivning
AXIS P37 Series P3737-PLE - nätverkskamera med panoramavy - kupol - TAA-kompatibel
Typ av enhet
Nätverkskamera med panoramavy - multisensor - kupol - utomhusbruk - klåfingerskyddad/väderbeständig
Ljud
Ja: tvåvägsljud via valfritt ljud- och I/O-gränssnitt, högtalarparkoppling
Dimensioner (BxDxH)
25.5 cm x 25.5 cm x 9.2 cm
Vikt
2 kg
Färg
Vit, NCS S 1002-B
Anslutningsteknik
Kabelanslutning
Kamera
Färg - Dag&Natt
Optisk zoomning
2.5 x
Max upplösning
2592 x 1944
Bildhastighet (max)
30 frames per second
Rörelsedetektion
Ja
Bildsensortyp
PS RGB CMOS - 4 x 1/2.7" - 4 x 5 MP
Mimimibelysning
0.19 lux - färg - F1.9 - 50 IRE
0 lux - svartvit - F1.9 - 50 IRE
0 lux - IR
0 lux - svartvit - F1.9 - 50 IRE
0 lux - IR
Kontroll brännvidd
Varifokal
Brännvidd
3.2 mm - 8.1 mm
Fokuseringsjustering
(minimiavstånd 0.5 m)
Iris-lins
F/1.9-3.2 - fast iris
Panoreringsområde (grader)
-90 till +90
Lutningsområde (grader)
25 to 95
Gränssnitt
Ethernet 10Base-T/100Base-TX/1000Base-T
Spänning
PoE Plus Class 4
Egenskaper
IR-korrigerad lins, fjärrzoom, fjärrstyrt fokus, infraröttbegränsande filter, bearbetningsenhet för djupinlärning (MLPU), Zipstream-teknologi, VBR (Variable Bitrate), Adaptive Bitrate (ABR), multibithastighet (MBR), låglatensläge, indikator för videoströmning, Forensic WDR, 2D Noise Reduction Technology, 3D Noise Reduction-teknik, dag/natt-tröskel, tonmappning, korrigering av konvex distorsion, textöverlagring, bildöverlägg, dynamisk text, Sekretessmaskeringsfunktion, polygon sekretessmask, Lightfinder-teknik, OptimizedIR, stöd för ONVIF (profil G), stöd för ONVIF (profil M), Stöd för ONVIF (profil S), stöd för ONVIF (T-profil), Pixel Counter Support, scene metadata, signerad firmware, fördröjningsskydd mot brute force-attack, sammanfattad autentisering, lösenordsskydd, Axis Edge Vault, Axis enhets-ID, säkert nyckelvalv, signerad video, säker start, IP-adressfiltrering
TAA-kompatibel
Ja
Miljöparametrar (vid drift)
-30 °C - 50 °C; 10 - 100% RH (condensing) relativ luftfuktighet
Allmänt
Typ av enhet
Nätverkskamera med panoramavy
Stöd för ljud
Ja: tvåvägsljud via valfritt ljud- och I/O-gränssnitt, högtalarparkoppling
Formfaktor
Kupol
Anslutningsteknik
Kabelanslutning
Bredd
25.5 cm
Djup
25.5 cm
Höjd
9.2 cm
Vikt
2 kg
Lokalisering
Argentina, Australien, Brasilien, Kina, Europa, Japan, Korea, Storbritannien, Förenta Staterna
Kamera
Typ
Färg - Dag&Natt - multisensor - utomhusbruk - klåfingerskyddad/väderbeständig
Format för digital video
H.264B, H.264M, H.264H, H.265, MJPEG, MPEG-4 Part 10, AVC, MPEG-H Part 2, HEVC
Maximal digital videoupplösning
2592 x 1944
Rörelsedetektion
Ja
Exponeringsområde
1/5 sek - 1/50000 sek
Mimimibelysning
0.19 lux - färg - F1.9 - 50 IRE
0 lux - svartvit - F1.9 - 50 IRE
0 lux - IR
0 lux - svartvit - F1.9 - 50 IRE
0 lux - IR
Infraröda lysdioder
Ja
Infrarött avstånd
15 m
Videotagning
2592 x 1944 @ 20 fps
2560 x 1440 @ 25/30 fps
2560 x 1440 @ 25/30 fps
RAM
4 GB
Flash-minne
8 GB
Egenskaper
IR-korrigerad lins, fjärrzoom, fjärrstyrt fokus, infraröttbegränsande filter, bearbetningsenhet för djupinlärning (MLPU), Zipstream-teknologi, VBR (Variable Bitrate), Adaptive Bitrate (ABR), multibithastighet (MBR), låglatensläge, indikator för videoströmning, Forensic WDR, 2D Noise Reduction Technology, 3D Noise Reduction-teknik, dag/natt-tröskel, tonmappning, korrigering av konvex distorsion, textöverlagring, bildöverlägg, dynamisk text, Sekretessmaskeringsfunktion, polygon sekretessmask, Lightfinder-teknik, OptimizedIR, stöd för ONVIF (profil G), stöd för ONVIF (profil M), Stöd för ONVIF (profil S), stöd för ONVIF (T-profil), Pixel Counter Support, scene metadata, signerad firmware, fördröjningsskydd mot brute force-attack, sammanfattad autentisering, lösenordsskydd, Axis Edge Vault, Axis enhets-ID, säkert nyckelvalv, signerad video, säker start, IP-adressfiltrering
Bildsensor
Typ
4 x 5 MP PS RGB CMOS 4 x 1/2.7"
Optisk konstruktion
Typ
Varifokal
Optisk zoomning
2.5 x
Brännvidd
3.2 mm - 8.1 mm
Iris-lins
F/1.9-3.2 fast iris
Min. fokuseringsavstånd
0.5 m
Horisontellt visningsfält (grader)
37 - 99
Vertikalt visningsfält (grader)
28 - 70
Diagonalt synsfält (grad)
47 - 134
Panorering
Område (grader)
-90 till +90
Lutning
Område (grader)
25 to 95
Gränssnitt
Nätverksgränssnitt
Ethernet 10Base-T/100Base-TX/1000Base-T
Nätverksprotokoll
IPv4, IPv6, USGv6, ICMPv4, ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP, UDP, IGMP, IGMPv2, IGMPv3, RTCP, ICMP, DHCPv4, DHCPv6, ARP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf
Expansion/Anslutning
Portar
LAN - RJ-45
Minneskort som stöds
microSD-kort, microSDHC-kort, microSDXC-kort
Krypteringsalgoritm
TLS 1.2, TLS 1.3
Diverse
Inkluderade tillbehör
Anslutningsskydd, kabelpackningar
TAA-kompatibel
Ja
Standarder som följs
IEEE 802.1x, IEEE 802.1ar, UL, cUL, UKCA, KC, EAC, RCM, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1 Third Edition, IEC/EN 62471, IS 13252, AS/NZS 62368.1:2022, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK09, ISO 21207 method B, MIL-STD-810H, NEMA 250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), VDMA 24364, NIST SP500-267, ETSI EN 303 645, FIPS 140, IEEE 802.3at, PVC-free, BFR-fri, CFR free, RoHS 2011/65/EU, EN 63000:2018, REACH 2006/1907
Färg
Vit, NCS S 1002-B
Strömtillförsel
Strömkrav
PoE Plus Class 4
Nätdel
13.25 Watt
Programvara / Systemkrav
Medföljande programvara
AXIS Object Analytics, AXIS Video Motion Detection
Miljöparametrar
Min temperatur vid drift
-30 °C
Max temperatur vid drift
50 °C
Relativ luftfuktighet (vid drift)
10 - 100% RH (condensing)
