Varunummer: 3425597

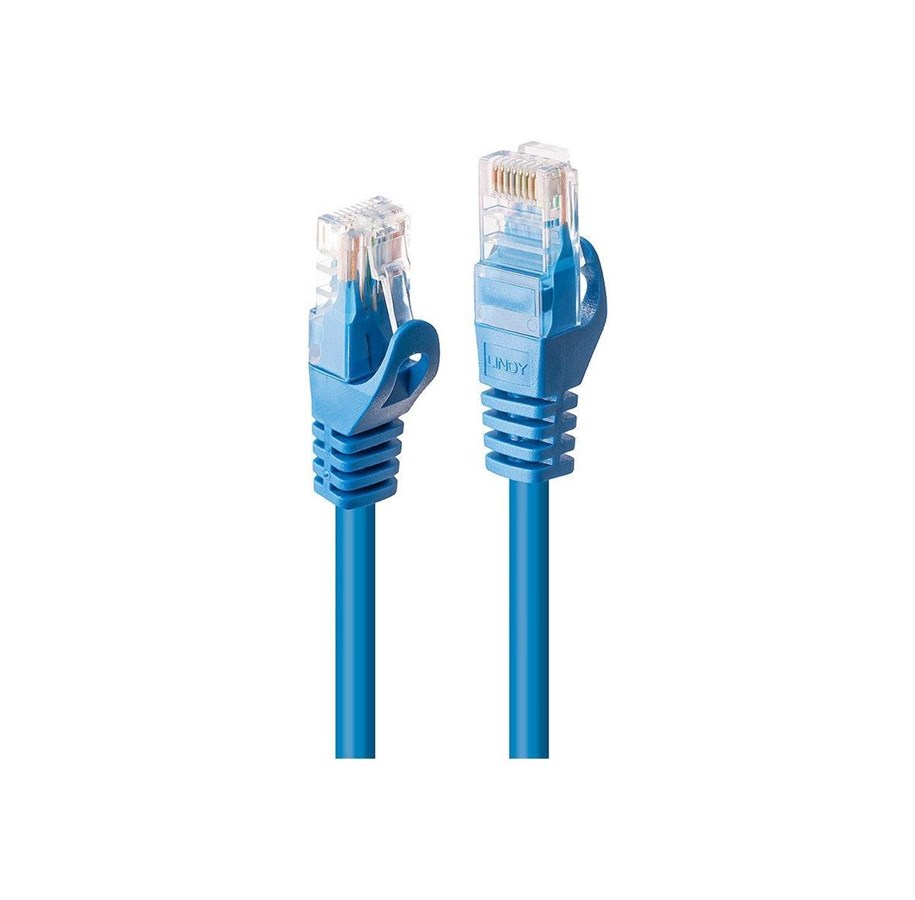

Lindy Basic patch cable - 1 m - blue - Blå - 1m
Patch-kabel, RJ-45 (hane) till RJ-45 (hane), 1 m, UTP, CAT 6, formpressad, hakfri, blå
96,00 kr
76,80 kr exkl. moms
Billigaste frakt: 59,00 kr
Leverantör, 4-5 vardagar leveranstid
Cat.6 U/UTP CCA network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.The high frequencies used in network technology cause a high current load in the outer layers of the conductors due to the "skin effect", while the conductor cores are only subjected to very low electrical loads. This allows the use of copper clad aluminium (CCA) conductor material, making this cable more cost-effective than pure copper cables.Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m.Available colours: Grey, Blue, Red, Black, White.
Producent
Varunummer
3425597
Modell
48172
EAN
4002888481724
Till producentens hemsida
Kabellängd
1 m
Kabel standard
Cat6
Kabelskärmen
U/UTP (UTP)
Anslutning 1
RJ-45
Anslutning 2
RJ-45
Produktens färg
Blå
Typ, kontakt 1
Hankoppling
Typ, kontakt 2
Hankoppling
Plätering på anslutningskontakter
Guld
Jacka material
Polyvinylklorid (PVC)
Ledarmaterial
Kopparpläterat aluminium
Kabelteknik
10/100/1000Base-T(X)
AWG kabelstorlek
26
Frekvens
250 MHz
Böjningsradie (min)
6,9 cm
Plug & Play-kompatibel
Ja
Temperatur vid drift
-10 - 60 ° C
Temperaturintervall (förvaring)
-20 - 75 ° C
Certifiering
RoHS, REACH, California Proposition 65
Ytterdiameter
5,8 mm
Anslutning 1, mått (B x D x H)
11,6 x 22,8 x 8,3 mm
Anslutning 2, mått (B x D x H)
11,6 x 22,8 x 8,3 mm
Antal per förpackning
1 styck
Förpackningstyp
Polypåse
Harmonized System (HS)-kod
84733080
Egenskaper
Kabellängd
1 m
Kabel standard
Cat6
Kabelskärmen
U/UTP (UTP)
Anslutning 1
RJ-45
Anslutning 2
RJ-45
Produktens färg
Blå
Typ, kontakt 1
Hankoppling
Typ, kontakt 2
Hankoppling
Plätering på anslutningskontakter
Guld
Jacka material
Polyvinylklorid (PVC)
Ledarmaterial
Kopparpläterat aluminium
Kabelteknik
10/100/1000Base-T(X)
AWG kabelstorlek
26
Frekvens
250 MHz
Böjningsradie (min)
6,9 cm
Plug & Play-kompatibel
Ja
Miljökrav
Temperatur vid drift
-10 - 60 ° C
Temperaturintervall (förvaring)
-20 - 75 ° C
Certifikat
Certifiering
RoHS, REACH, California Proposition 65
Vikt & dimension
Ytterdiameter
5,8 mm
Anslutning 1, mått (B x D x H)
11,6 x 22,8 x 8,3 mm
Anslutning 2, mått (B x D x H)
11,6 x 22,8 x 8,3 mm
Förpackningens innehåll
Antal per förpackning
1 styck
Förpackning
Förpackningstyp
Polypåse
Logistikdata
Harmonized System (HS)-kod
84733080
Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
